Precision Vise Series

  • QKG precision tool vises milling machine tool vises with high quality
  • QKG precision tool vises milling machine tool vises with high quality
  • QKG precision tool vises milling machine tool vises with high quality
  • QKG precision tool vises milling machine tool vises with high quality
QKG precision tool vises milling machine tool vises with high quality QKG precision tool vises milling machine tool vises with high quality QKG precision tool vises milling machine tool vises with high quality QKG precision tool vises milling machine tool vises with high quality

QKG precision tool vises milling machine tool vises with high quality

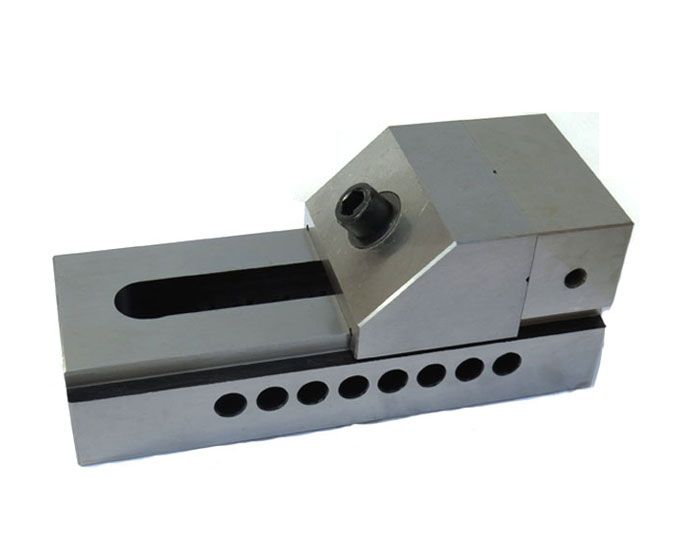

Product name:precision cnc milling machine QKG tool vise for edm
Material:high-qulity alloysteel

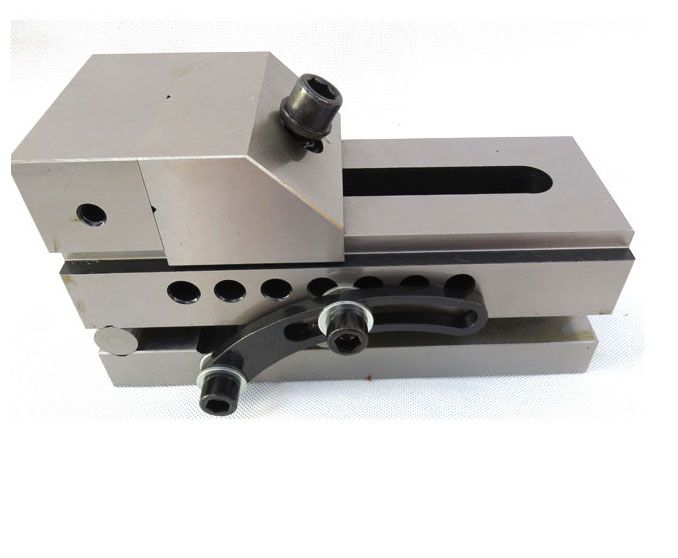

Type:Angle Vise
Hardness:HRC58--62
Parallelism:0.005mm/100mm
Squareness:0.005/100mm
Application:CNC Machine Center
Delivery Status:Standard sizedelivery short-time

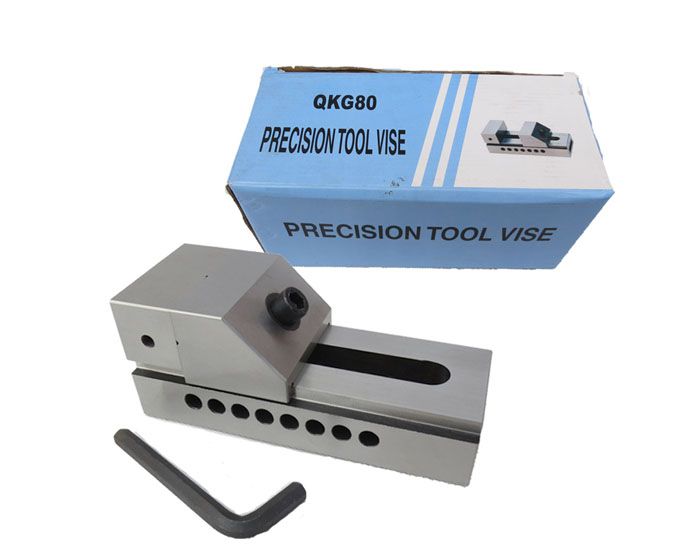

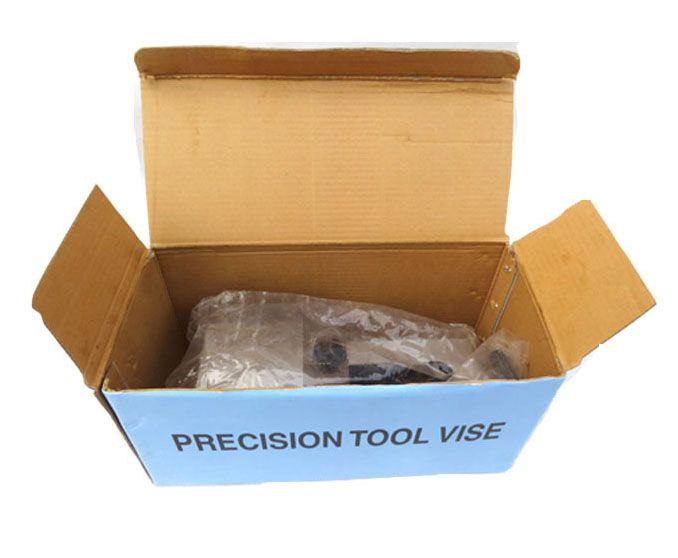

Package:Machine vise with paper box or wooden case
Product Overviews
1. Produced of high quality steel,carburized to wsurface hardness:HRC58-62
2. Parallelism 0.005mm/100mm,squareness 0.005mm
3. Quickly to clamp and easy to operate
4. Used for precision measurement and inspecition precision grinding,EDM and wire-cutting machine
5. Guarantee high accuracy in any position

  QKG系列精密工具平口钳
GD-0070 PRECISION TOOL VISES
Order No. B H Smax Smax Wt
  mm mm mm mm kg
QKG25 26 9.15 22 65.4 0.5
QKG36 36 20 40 100 1.2
QKG38 38 20 44 105 1.3
QKG50 50 25 65 140 2.0
QKG63 63 32 85 175 3.0
QKG73 73 35 100 190 4.1
QKG80 80 40 100 200 5.5
QKG88 88 40 125 235 7.3
QKG100 100 45 125 245 10.0
QKG125 125 50 160 285 18.0
QKG150 150 50 200 330 21.5
QKG150A 150 50 250 380 23
QKG150B 150 50 300 430 24
