Hydraulic vises precision tool vice ZXQGG precision sine tool vises

Hydraulic vises precision tool vice ZXQGG precision sine tool vises

Item No.: CO16247734
Send Enquiry

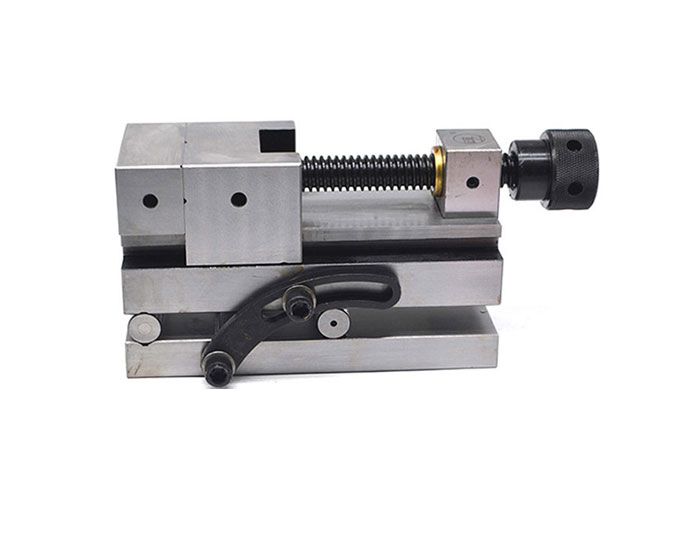

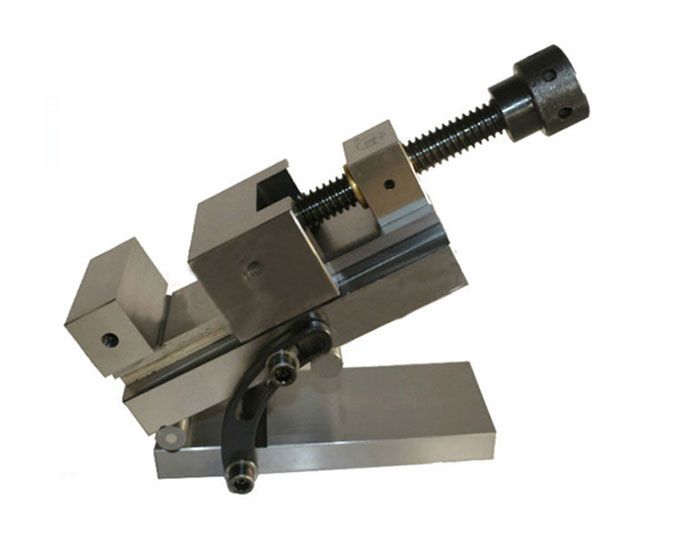

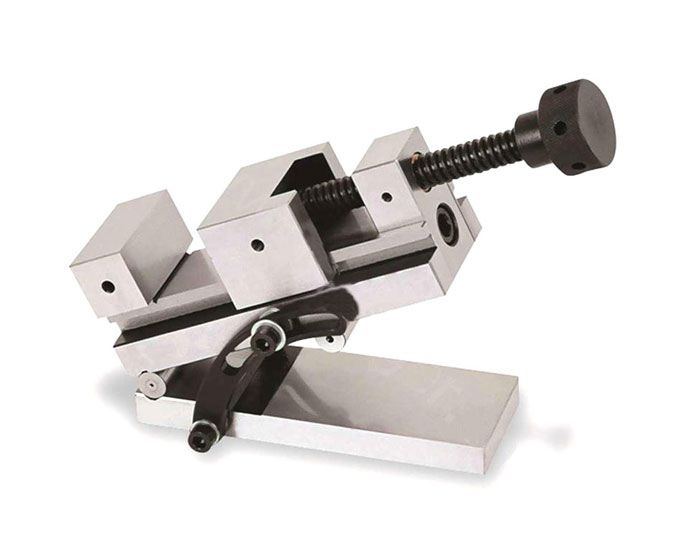

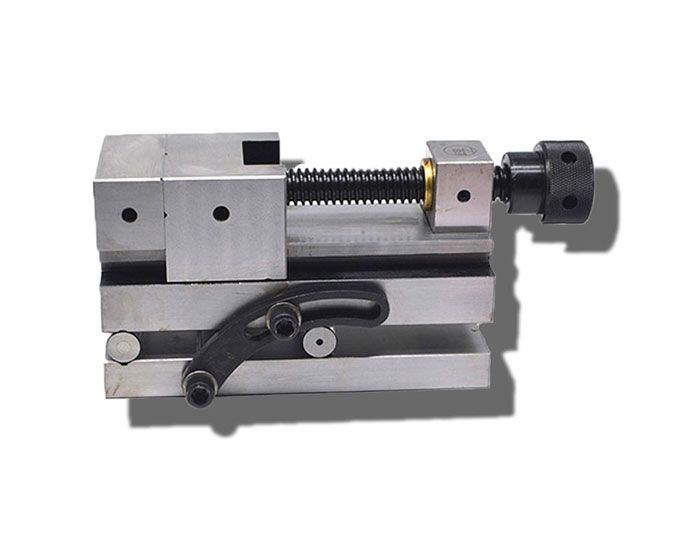

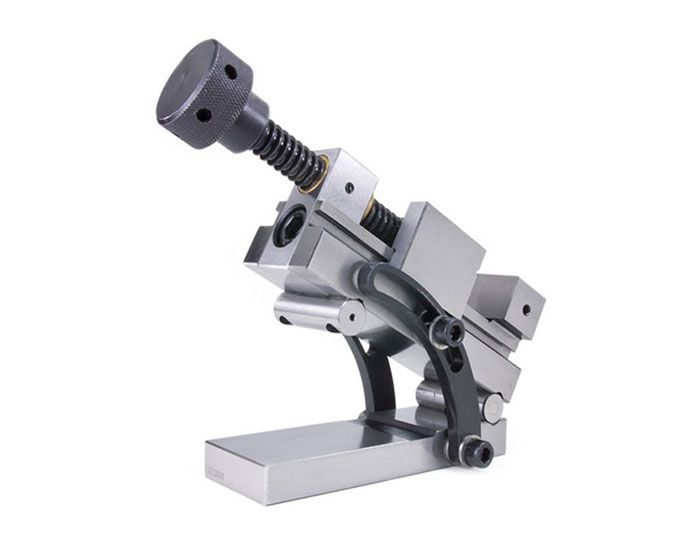

Product name:ZXQGG precision sine tool vise
Squareness:0.005mm
Parallelism:0.005mm/100m
Hardness:HRC58-62
Material:high-quality alloy steel
Usage:Workholding
Surface:Fully Heat-treatment
Drive Mode:Hydraulic Vise

1.Produced of high quality steel,carburized to surface hardness:HRC58-62
2.Parallelism 0.005mm/100mm,squareness 0.005mm
3.Available inspecting angles and processing working with angle

ZXQGG PRECISION SINE TOOL VISE
Oedre No	B mm	H mm	H1 mm	Smax mm	L mm	L1 mm		Adjustable angle range
Oedre No	B mm	H mm	H1 mm	Smax mm	L mm	mm	in	Adjustable angle range
ZXQGG50	50	25	86.6	60	140	100	4	0-45°
ZXQGG63	63	32	94.6	85	175		5
ZXQGG73	73	35	111	90	190
ZXQGG80	80	40	121	95	200
ZXQGG88	88	40	125	120	235
ZXQGG100	100	45	139.2	125	245
ZXQGG125	125	50	1542	160	285	200
ZXQGG150	150	50	160.9	190	330	200	10
