Inquiry:
Collets series

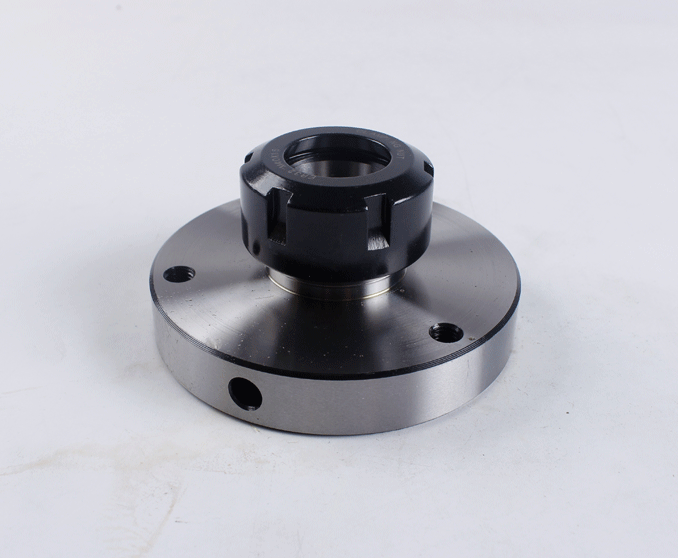

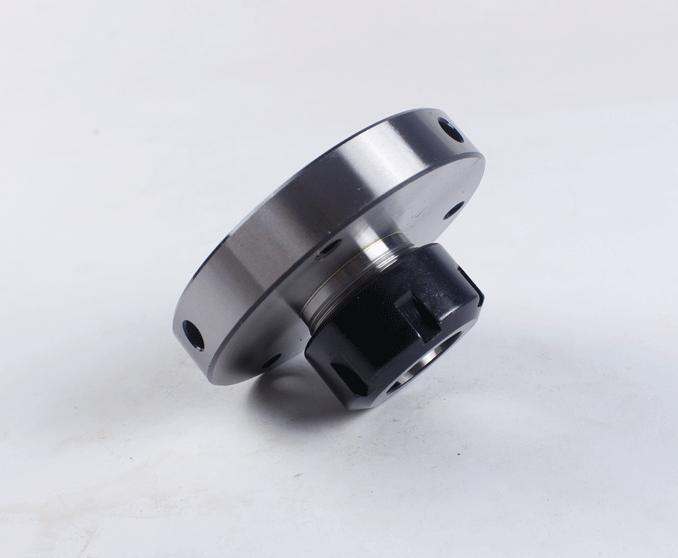

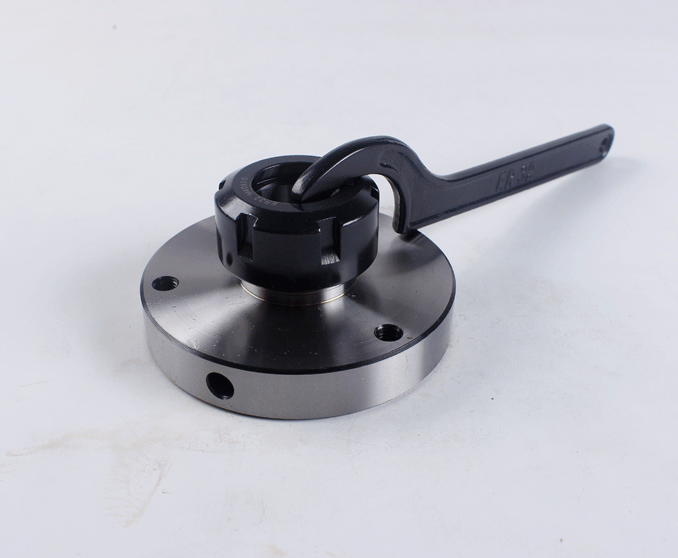

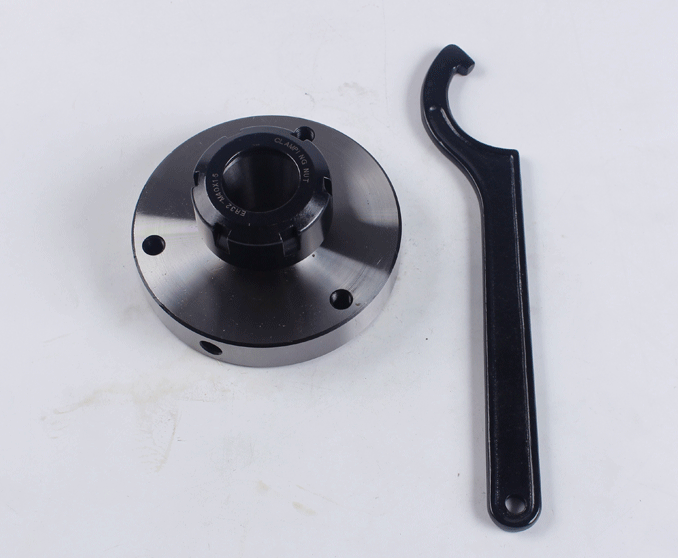

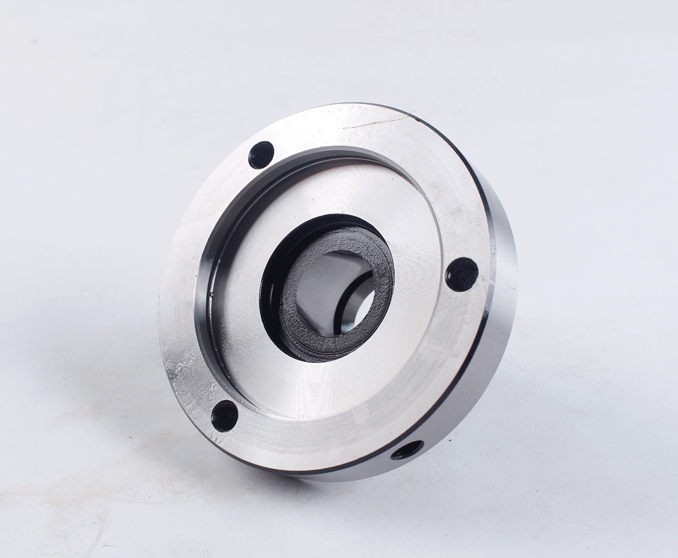

GD-0007 ER collet fixture
- Item No.: CO154131734
- Send Enquiry
1.Products name : ER COLLET FIXTURE
2.Hardness: HRC 48-52
3.Material: 45# steel
4.Type : ER16 ER25 ER32
5.Mini order quantity: 10pcs
6.Package : Carton
7.Brand : GD-TOOLS
| GD-0007 ER COLLET FIXTURE | ||||||
| Order No. | D | D1 | d | T | L | Collet |
| ER16-D140 | 22 | 45 | 16 | M22×1.5 | 25 | ER16 |
| ER25-D210 | 72 | 100 | 25 | M32×1.5 | 36 | ER25 |
| ER25-D250 | 52 | 102 | 25 | M32×.5 | 36 | ER25 |
| ER25-102 | 52 | 102 | 25 | M32×1.5 | 40 | ER25 |
| ER25-BZ300 | 100 | 132 | 25 | M32×.5 | 34 | ER25 |
| ER32-55 | 55 | 80 | 32 | M40×1.5 | 42 | ER32 |
| ER32-72 | 72 | 100 | ||||
| ER32-95 | 95 | 125 | ||||
| ER32-100 | 100 | 132 | ||||
| ER32-130 | 130 | 160 | ||||
| ER32-132 | 132 | 163 | ||||
