Inquiry:
precision parallel block
GD-0072 PB150 precision parallel block
- Item No.: CO162033734
- Send Enquiry

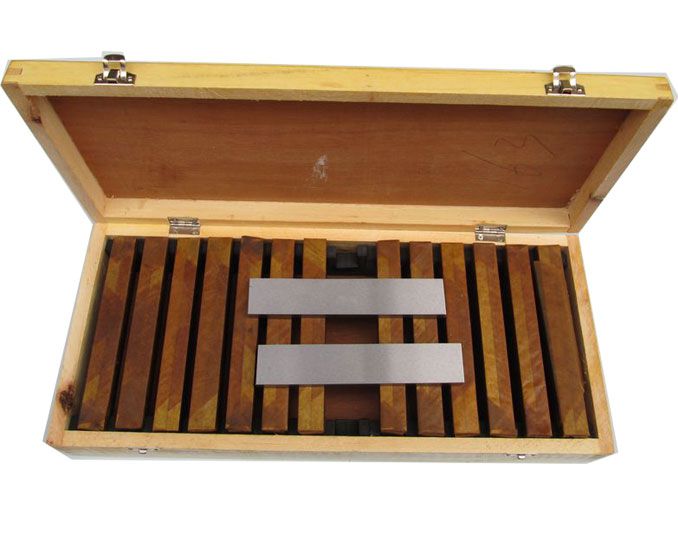

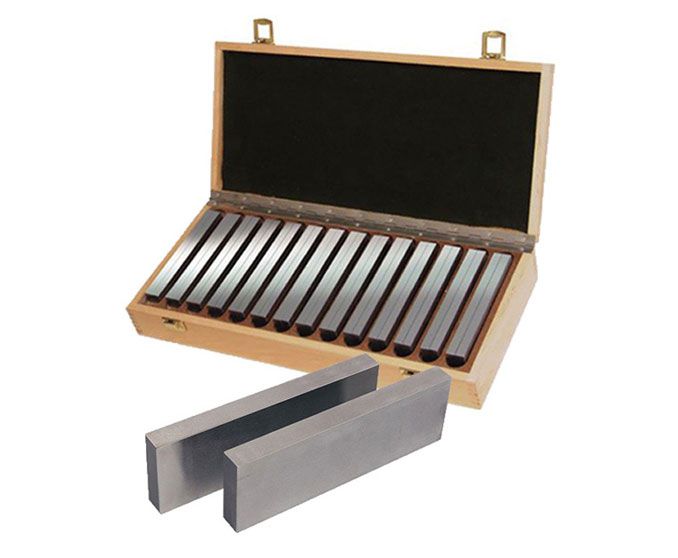

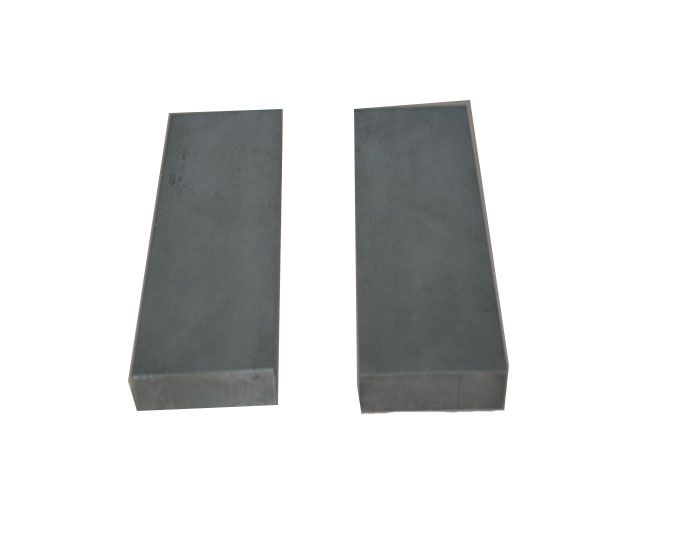

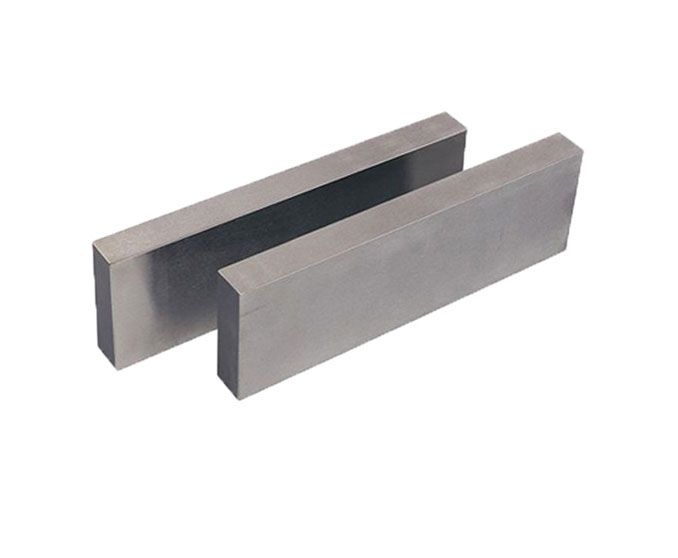

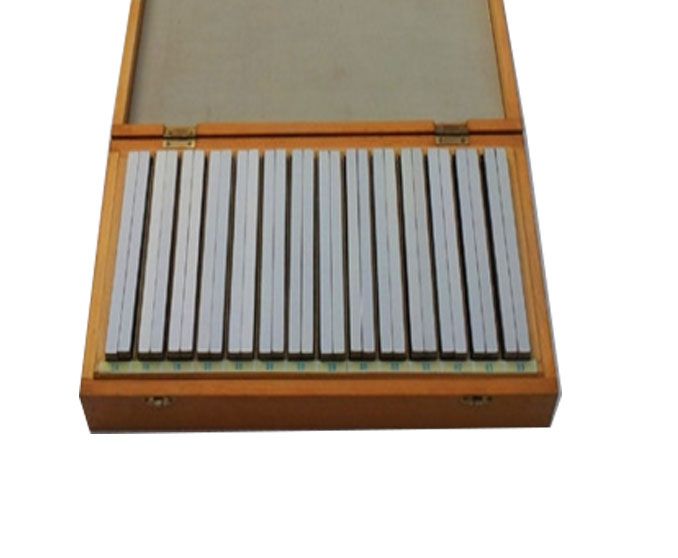

Product name:PB150 Precision Parallel Block
Hardness：HRC55-62
Accuracy:±0.01mm/100mm
Parallelism:0.005mm
Material：Alloy steel
Packing：Wooden box
Usage：Especially surtable for machining center,with good stability and accuracy, etc.
| GD-0072 | PB150 PRECISION PARALLEL BLOCK | |
| Order No. | L*W*H | PCS |
| PB150-1 | 150*10*14(16,18,20,22,24,26,28,30,32,35,40,45,50） | 14*2 |
| PB150-2 | 150*8*14 (16,18,20,22,24,26,28,30,32,35,40,45,50） | 14*2 |
| PB150-3 | 80*4*14 (16,18,20,22,24,26,28,30,32,35,40,45,50） | 14*2 |
| PB150-4 | 200*10*14(16,18,20,22,24,26,28,30,32,35,40,45,50） | 14*2 |
