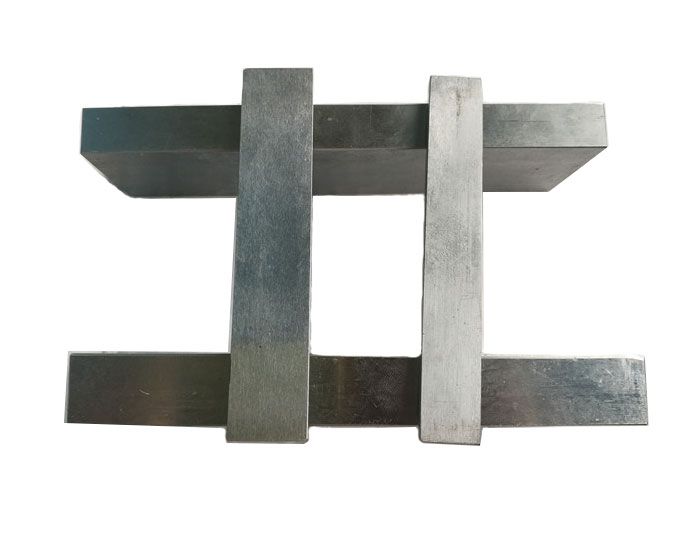

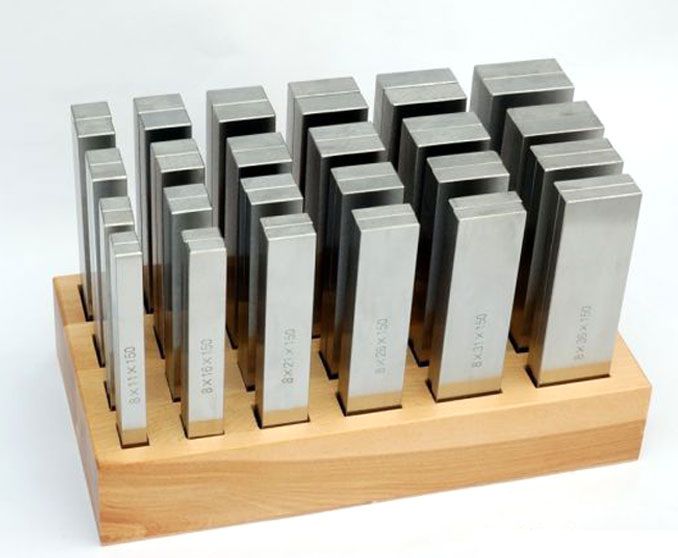

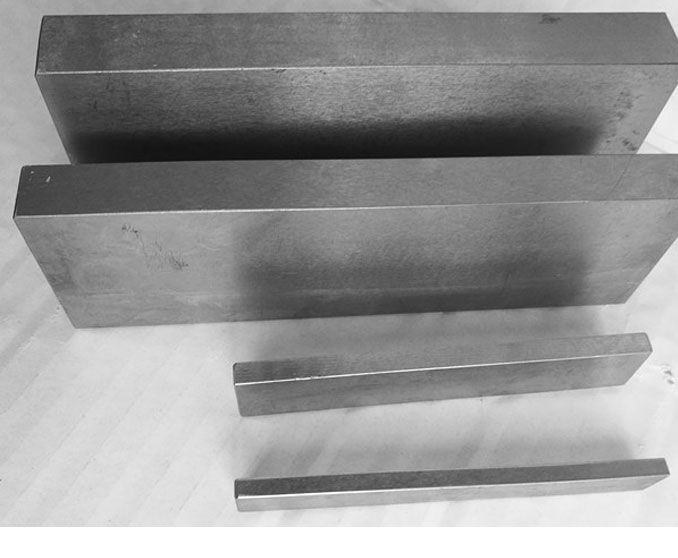

GD-0074 PB153 precision parallel block

Product name:PB153 Precision Parallel Block
Hardness：HRC55-62
Accuracy:±0.01mm/100mm
Parallelism:0.005mm
Material：Alloy steel
Packing：Wooden box
Usage：Especially surtable for machining center,with good stability and accuracy, etc.





GD-0074	PB153 PRECISION PARALLEL BLOCK
Order No.	L*W*H	PCS
PB153-1	125*8*11(16,21,26,31,36) 125*10*13(18,23,28,33,36) 125*12*15(20,25,30,35,40) 125*14*17(22,27,32,37,42)	24*2
PB153-2	150*8*11(16,21,26,31,36) 150*10*13(18,23,28,33,36) 150*12*15(20,25,30,35,40) 150*14*17(22,27,32,37,42)	24*2
