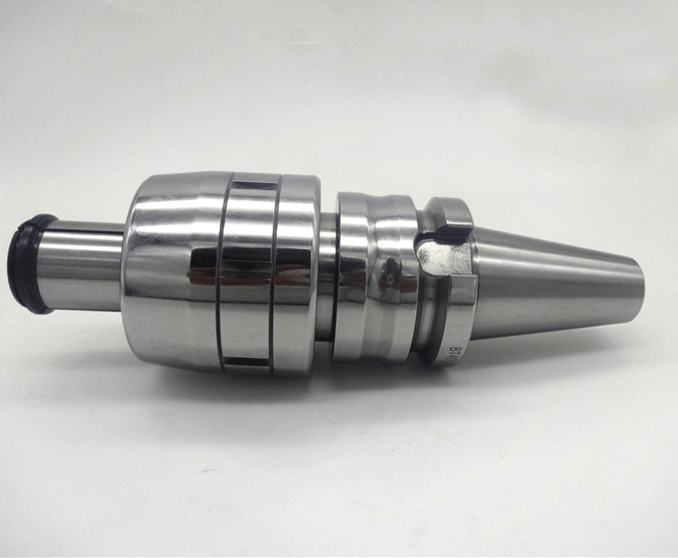

DIN69871 ASC JM71 MILLING CHUCK ARBORS

Item No.: CO16748734
Send Enquiry

1.Products name：DIN69871-ASC JM71 MILLING CHUCK ARBORS

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Type: DIN69871.A40 DIN69871.A50

7.Standard form: AD AD/B

8.Brand:GD-TOOLS

GD-0097 JM71 milling chuck arbors
OrderNO. DIN69871.A×JM71-L1	d	D	D1
DIN69871.A40×JM7112-90	16	50	44.45
DIN69871.A40×JM7116-100	22	56
DIN69871.A40×JM7116-120	22	56
DIN69871.A40×JM7120-105	25	63
DIN69871.A40×JM7125-100	32	70
DIN69871.A40×JM7125-105	32	70
DIN69871.A40×JM7125-135	32	70
DIN69871.A40×JM7132-135	42	90
DIN69871.A50×JM7116-110	22	56	69.85
DIN69871.A50×JM7116-150	22	56
DIN69871.A50×JM7125-150	32	70
DIN69871.A50×JM7125-165	32	70
DIN69871.A50×JM7132-120	42	90
DIN69871.A50×JM7132-150	42	90
DIN69871.A50×JM7132-165	42	90
