Collets series

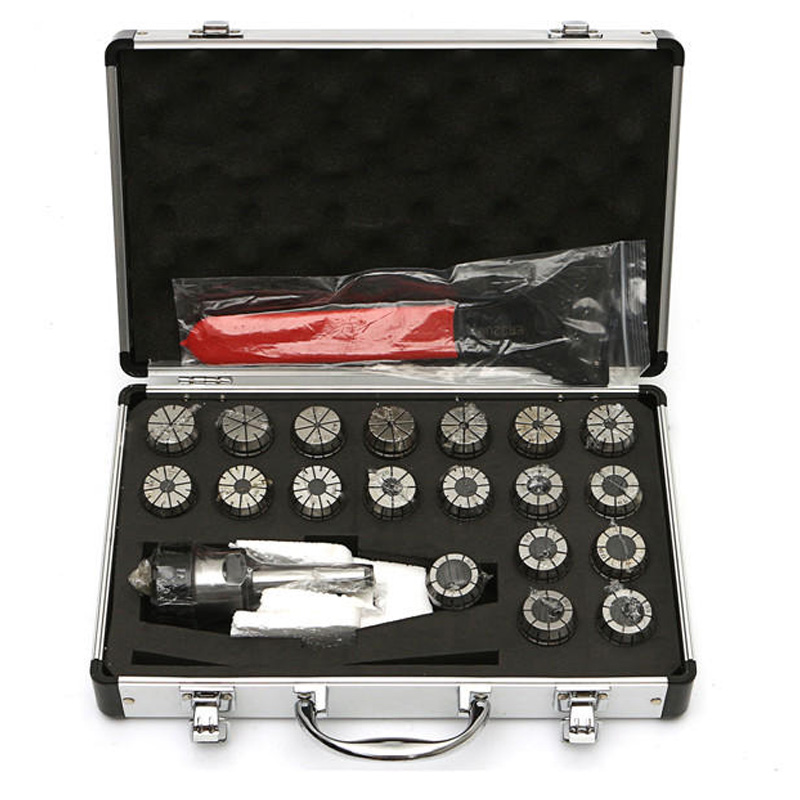

Colet series Milling chuck set from HT-TOOLS

Item No.: CO202314817
Send Enquiry

Pingyuan Haotian machinery Co.,Ltd is located in the largest production base of machine tool accessories in China.We are specialized in researching,producing and developing many kinds Of collets, drill chuck, CNC tool holders, retention knobs, ER nuts, ER spanners, machine vises,parallel blocks and so on. With high precision and full varieties. All of our products are deeply trusted by customers both at home and abroad.

Order No.	Hole size		Pcs/set	Shank
	in	mm
ER16-8in(mm)	3/32 1/8 3/16 7/32 1/4 5/16 11/32 3/8	2 3 4 5 6 7 8 10	8	R8 MS2-MS6 ISO3O ISO40 ISO50 1/2" str.sh 5/8" str.sh 3/4" syr.sh 1" str.sh 1-1/4" str.sh

ER25-6in(mm)	1/8 3/16 5/16 3/8 1/2 5/8	4 6 8 10 12 16	6

ER25-10in(mm)	3/32 1/8 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8	3 4 5 6 8 10 12 14 15 16	10

ER32-6in(mm)	1/4 5/16 3/8 1/2 5/8 3/4	6 8 10 12 16 20	6

ER32-12in(mm)	3/32 1/8 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4	3 4 5 6 8 10 12 14 15 16 18 20	12

ER40-8in(mm)	1/8 1/4 3/8 1/2 5/8 3/4 7/8 1	3 5 8 12 15 18 22 26	8

ER40-15in(mm)	1/8 3/16 1/4 5/16 3/7/16 1/2 9/16 5/8 11/16 3/4 13/16 7/8 15/16 1	3 4 5 6 8 10 12 14 15 16 18 20 22 24 26	15
