Drill Chuck Arbors Series

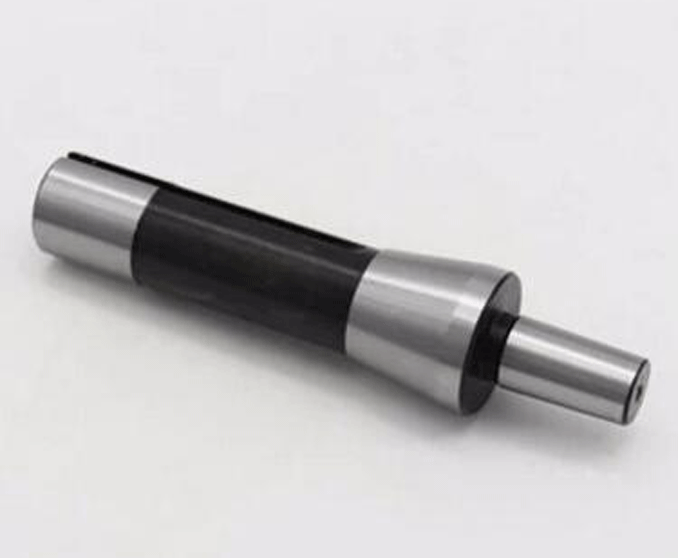

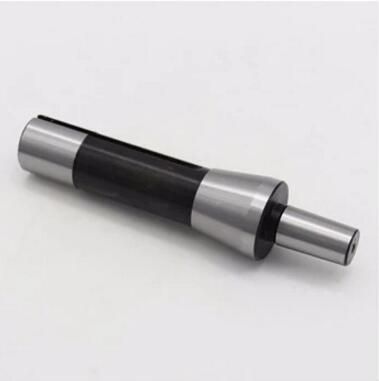

GD-0033 R8 drill chuck arbors
- Item No.: CO155057734
- Send Enquiry
1. High quality elastic steel material with long use time.
2. Type: A AD AD/B
3. Shank of the Arbors：BT30, BT40, BT50, DIN69871.A30, DIN69871.A40, DIN69871.A50, CT40, CT50. DIN2080
4. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand. (G6.3/12000rpm, G2.5/20000rpm)
5. Holder hardness: HRC 52-55
| Order No. R8-NO.S | D(mm) | L(mm) | Wt(kg) | Order No. R8-NO.S | D(mm) | L(mm) | Wt(kg) |
| R8-J0 | 6.35 | 117 | 0.393 | R8-J5 | 35.89 | 154 | 0.742 |
| R8-J1 | 9.754 | 122 | 0.409 | R8-JN6 | 6.35 | 118.5 | 0.25 |
| R8-J2S | 13.94 | 125 | 0.4 | R8-B10 | 10.094 | 124 | 0.386 |
| R8-J2 | 14.199 | 128 | 0.414 | R8-B12 | 12.065 | 128 | 0.408 |
| R8-J33 | 15.85 | 132 | 0.418 | R8-B16 | 15.733 | 135 | 0.44 |
| R8-J6 | 17.17 | 132 | 0.426 | R8-B18 | 17.78 | 143 | 0.454 |
| R8-J3 | 20.599 | 137 | 0.465 | R8-B22 | 21.793 | 152 | 0.514 |
| R8-J4 | 28.55 | 148 | 0.6 | R8-B24 | 23.825 | 162 | 0.567 |
