Collets series

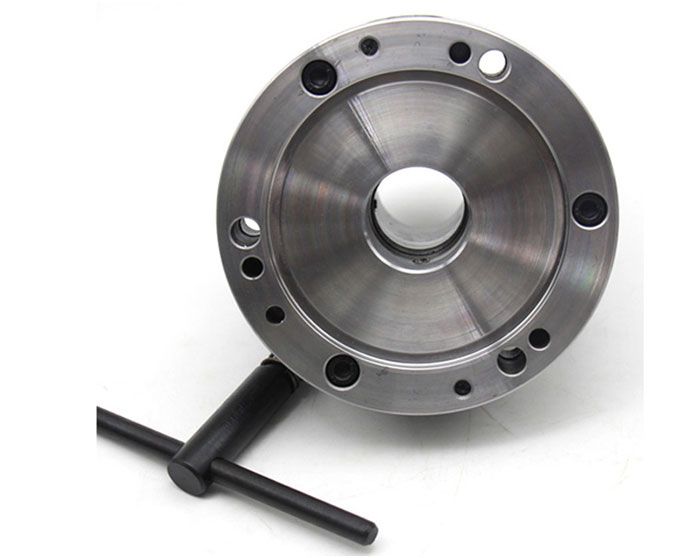

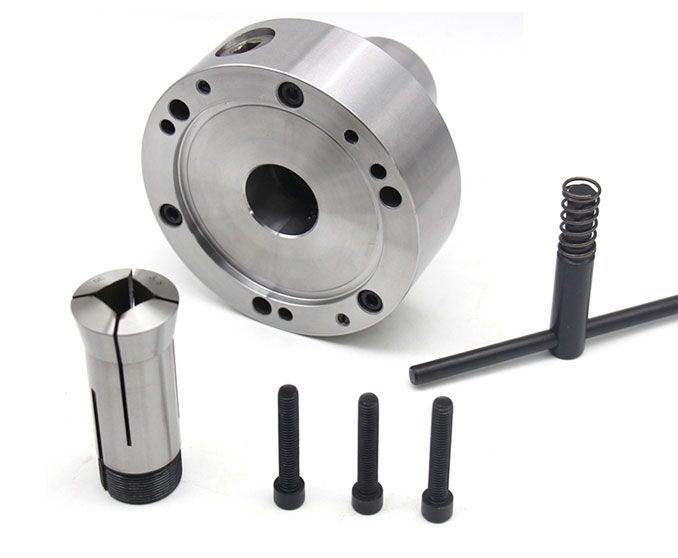

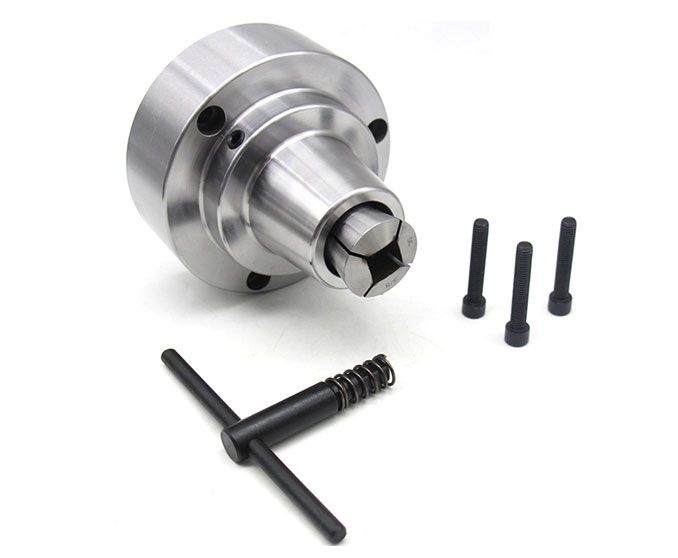

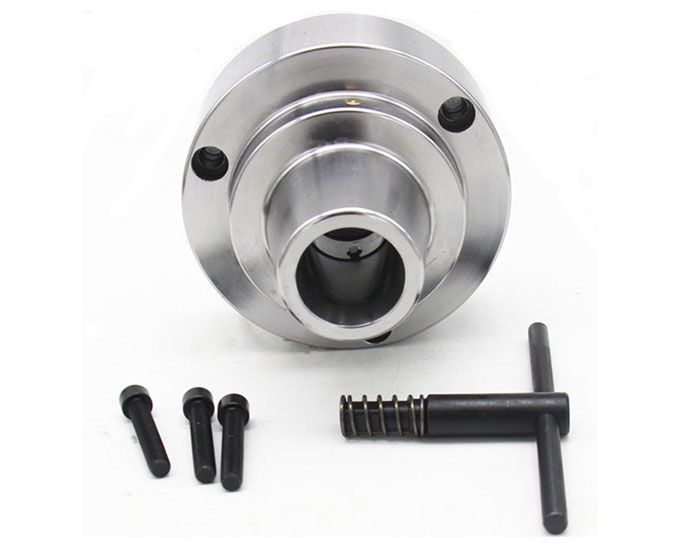

GD-0051 5C Collet fixture

Item No.: CO155814734
Send Enquiry

Product name :5C collet fixture
Hardness:HRC44-48
Inspection:100% inspection
Weight:4.5kgs

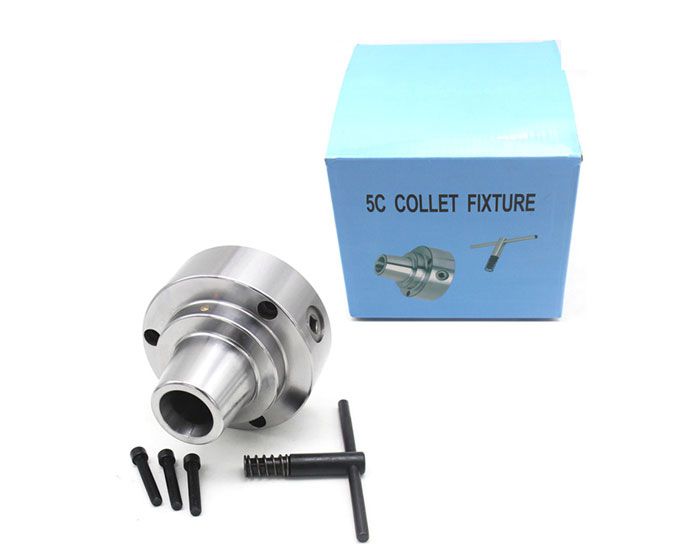

Package:color box
Advantage:5C collet is fit for this device,which can clamp tool or
workpiece with different diameter and figure it can be fixedlathe,
grinder and other special equipment,with such features as high precision,
easy poeration safe appilcation strongclamping,etc

GD-0051	5C FIXTURE

订单号 Order No.		3911-125-5C-00

加持范围 Clamping rang	Round圆孔	1~28mm	3/64"~1-1/8"
	S	3~19mm	1/8~3/4''
	Hex六方孔	3~22mm	1/8''~7/8''
D（MM）		126
D0（mm）		95
L（MM）		107.2
重量Wt（kg）		4.5
