CNC Tool Series

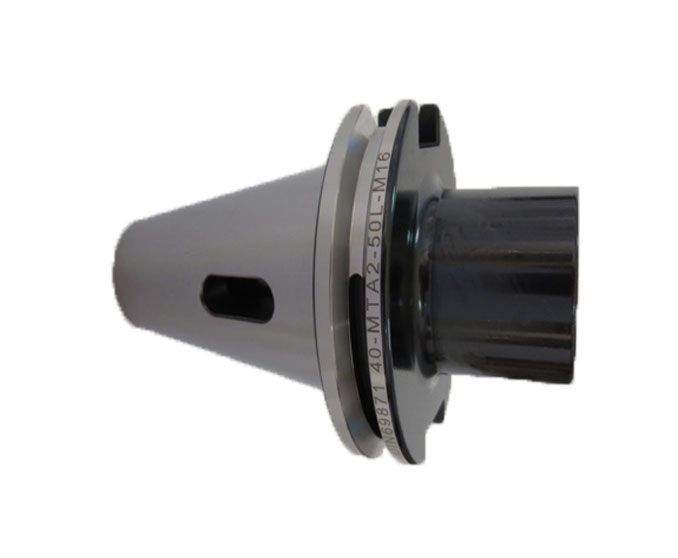

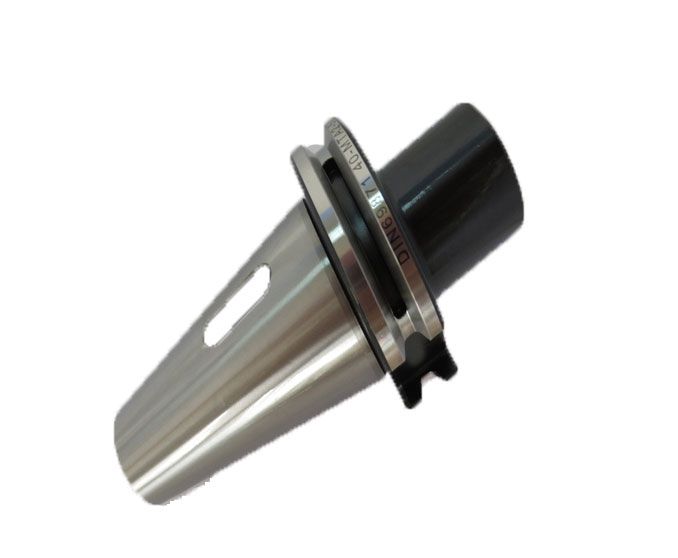

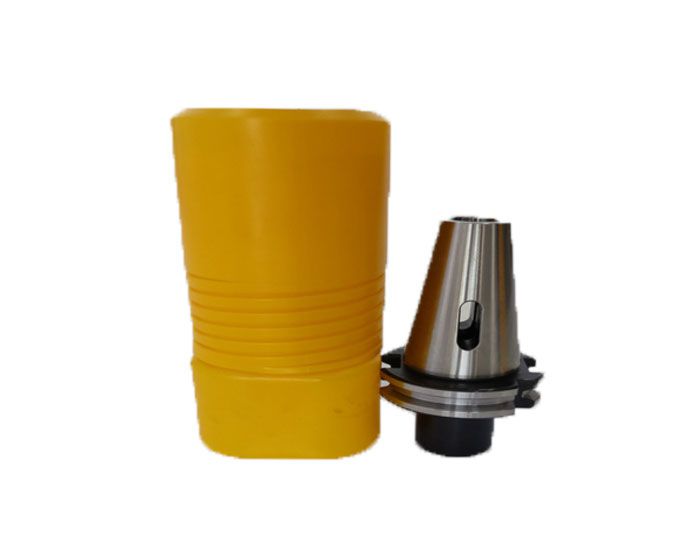

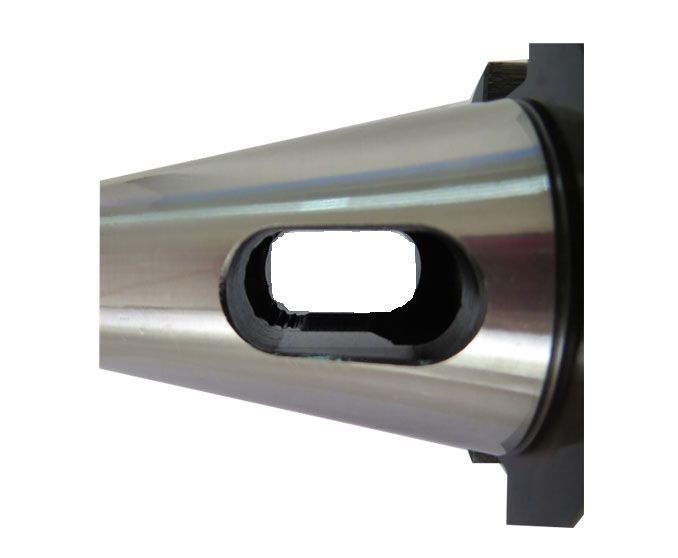

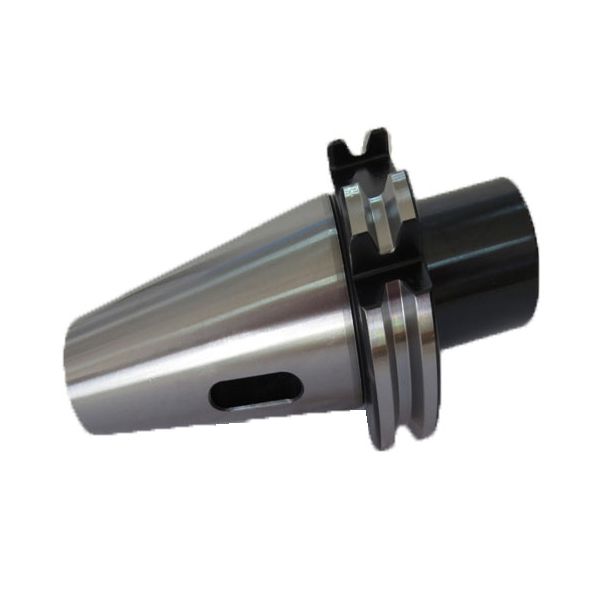

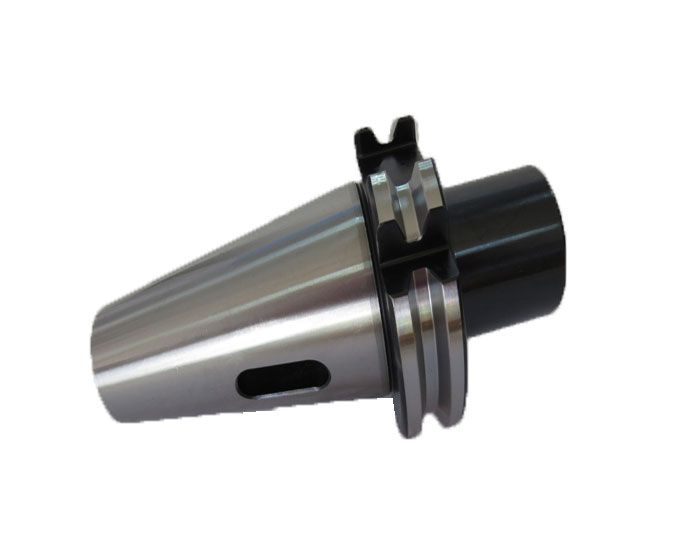

MORSE TAPER WITH TANG

Item No.: CO16730734
Send Enquiry

1.High quality elastic steel material with long use time.
2.Shank of the Morse Taper Collet chuck MTB1/MTB2/MTB3/MTB4/MTB5
3.Suitable Collet:ER11/ER16/ER20/ER25/ER32/ER40
4.The precision little than 0.01mm with balance 10,000rpm. Higher precision also can be made by your demand.
5.Holder hardness:48-55HRC
6.The protrusion length is difference from 20mm to 200mm.
7.Suitable NUT & Wrench is also upon request.

GD-0087	MORSE TAPER WITH TANG
Order NO. DIN69871.A×MS.NO.T-L1	L	D	D1	Wt（kg）
Order NO. DIN69871.A×MS.NO.T-L1	L	D	D1	Wt（kg）
DIN69871.A30×MS1-50	97.8	25	31.75	0.55
DIN69871.A30×MS2-60	107.8	32	31.75	0.80
DIN69871.A30×MS3-75	122.8	40	31.75	0.85
DIN69871.A40×MS1-45	113.4	25	44.45	1.20
DIN69871.A40×MS1-50	118.4	25	44.45	1.30
DIN69871.A40×MS2-50	118.4	32	44.45	1.50
DIN69871.A40×MS2-60	128.4	32	44.45	1.56
DIN69871.A40×MS3-75	143.4	40	44.45	1.80
DIN69871.A40×MS4-95	163.4	48	44.45	2.40
DIN69871.A50×MS1-45	146.75	25	69.85	4.05
DIN69871.A50×MS2-60	161.75	32	69.85	4.40
DIN69871.A50×MS3-65	166.75	40	69.85	4.50
DIN69871.A50×MS4-95	196.75	48	69.85	4.90
DIN69871.A50×MS5-100	201.75	61	69.85	5.10
DIN69871.A50×MS5-105	206.75	61	69.85	5.15
