Face Mill

NBJ16 MICRO BORING BARR TOOL HOLDER GD-00130

Item No.: CO162212734
Send Enquiry

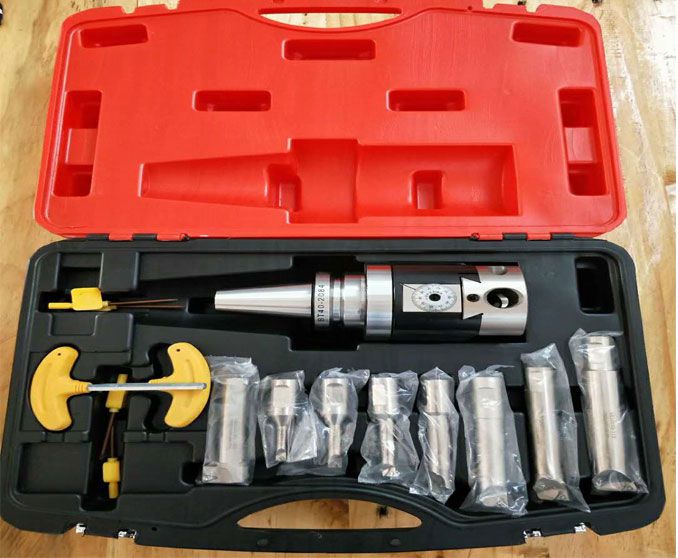

1.Products name : NBJ16 MICRO BORING BAR TOOL HOLDER
2.Material: 40crmo
3. application:0.002mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

Features:
1.Spindle conicity reference:JIS MAS 403BT.
2.Having high rigidity and precision, easily operated with safety.
3.The minimum dial is 0.001mm with semi diameter 0.005mm.
4.While mving in small scope the highest speed <1600rpm.

GD-00130	NBJ16 MICRO BORING BAR TOOL HOLDER					镗孔范围Boringrange	接口型号LBK NO	全长L	刀杆长L1	刀杆外径ΦD1	内置刀杆dmm	重量KGS
规格/型号Modle		移动量mm	延伸长Z	组合内容Tool connetion
规格/型号Modle		移动量mm	延伸长Z	刀柄Shank	镗头Boring head
BT30-NBJ16-110L		0-5	88	BT30-LBK6-60L	NBJ16	8-50mm	LBK6	110	60	64	16	2.4
BT40-NBJ16-115L		0-5	88	BT40-LBK6-65L	NBJ16	8-50mm	LBK6	115	65	64	16	2.7
BT50-NBJ16-145L		0-5	107	BT50-LBK6-95L	NBJ16	8-50mm	LBK6	145	95	64	16	5.9
JT30-NBJ16-110L		0-5	91	JT30-LBK6-60L	NBJ16	8-50mm	LBK6	110	60	64	16	2.4
BT40-NBJ16-115L		0-5	96	JT40-LBK6-65L	NBJ16	8-50mm	LBK6	115	65	64	16	2.7
JT50-NBJ16-145L		0-5	126	JT50-LBK6-95L	NBJ16	8-50mm	LBK6	145	95	64	16	5.9
NT30-NBJ16-110L		0-5	95	NT30-LBK6-60L	NBJ16	8-50mm	LBK6	110	60	64	16	2.4
NT40-NBJ16-115L		0-5	100	NT40-LBK6-65L	NBJ16	8-50mm	LBK6	115	65	64	16	2.7
NT50-NBJ16-145L		0-5	130	NT50-LBK6-95L	NBJ16	8-50mm	LBK6	145	95	64	16	5.9
