Quick Change Tool Post

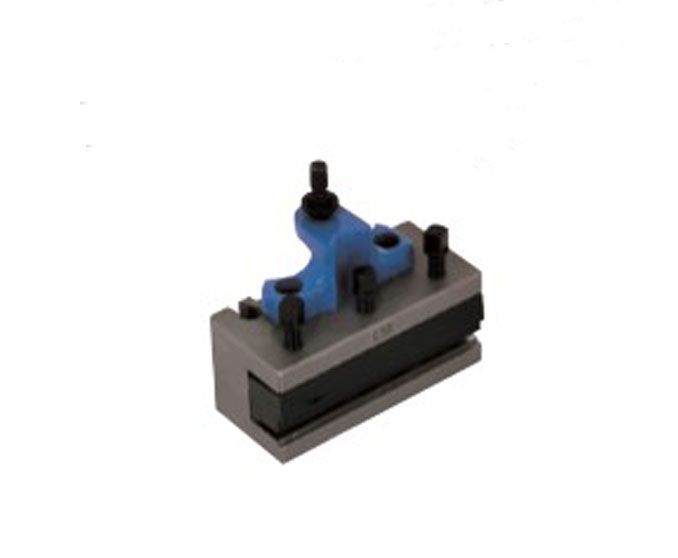

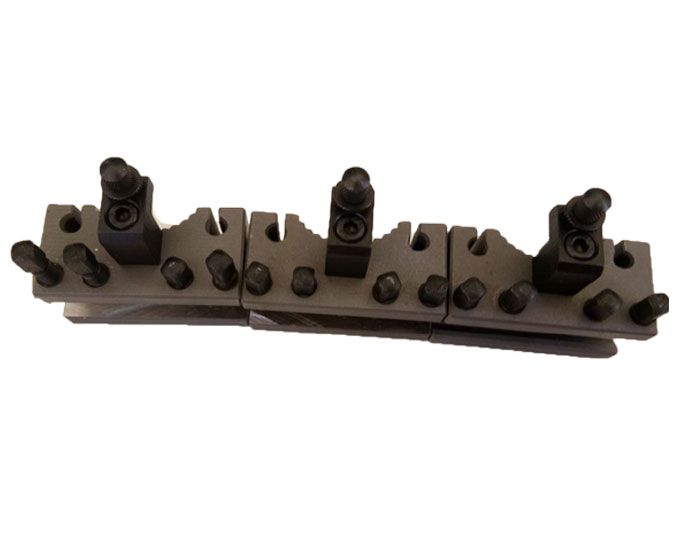

GD-0065 TURNING FACING AND BORING TOOL HOLDER

Product name :Turning And Boring Bar holder

Application：Quick-change tool holders are characterized by their unlimited diversity in the use of lathe tools,drills,reamers and boring bars

Accuracy:0.01mm

Hardness：HRC50--60

Category：Machine tool accessories

Material:High-quality steel

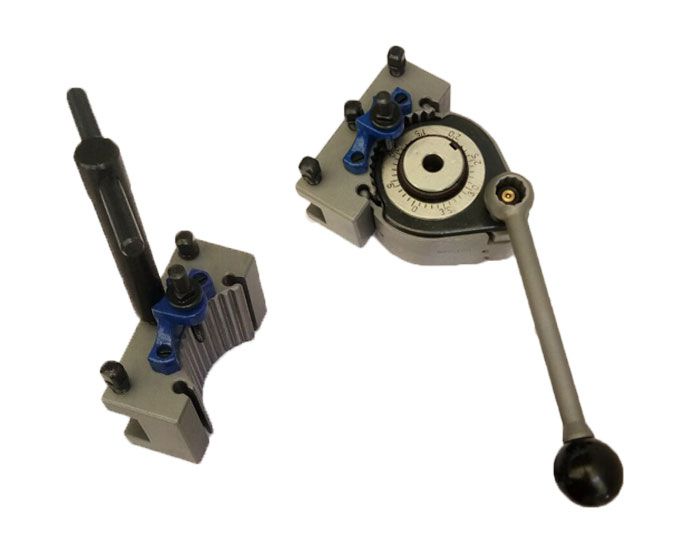

1. cam-lock handle rigidity locks & quickly releases tool holder.

2. correct height of cutting edge is easily and accurately adjusted by special set screws.

3. tools can be reground without removal form tool holder setting remains unaltins unaltered.

4. 40 different angles (every 9º) are conveniently selected from position dials with marker.

5. holders are interchangeable with most other brand 40 position tool post.

	车镗削用刀夹

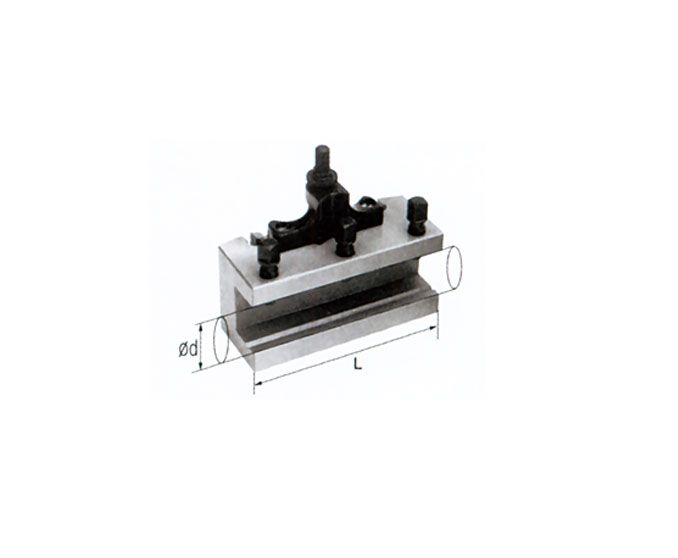

GD-0065	TURNING FACING AND BORING TOOL HOLDER
Order No.	dmax(mm)	L(mm)
AaH12×50	12	50
AH20×90	20	90
EH30×100	30	100
BH30×130	30	130
BH32×130	32	130
CH35×150	35	150
CH50×160	50	160

V groove round shank boring bars and tools as well as squre tool bits to machine end face,external,cutting,boring etc.
