GD-0026-0027 F1 Boring Head

Item No.: CO154612734
Send Enquiry

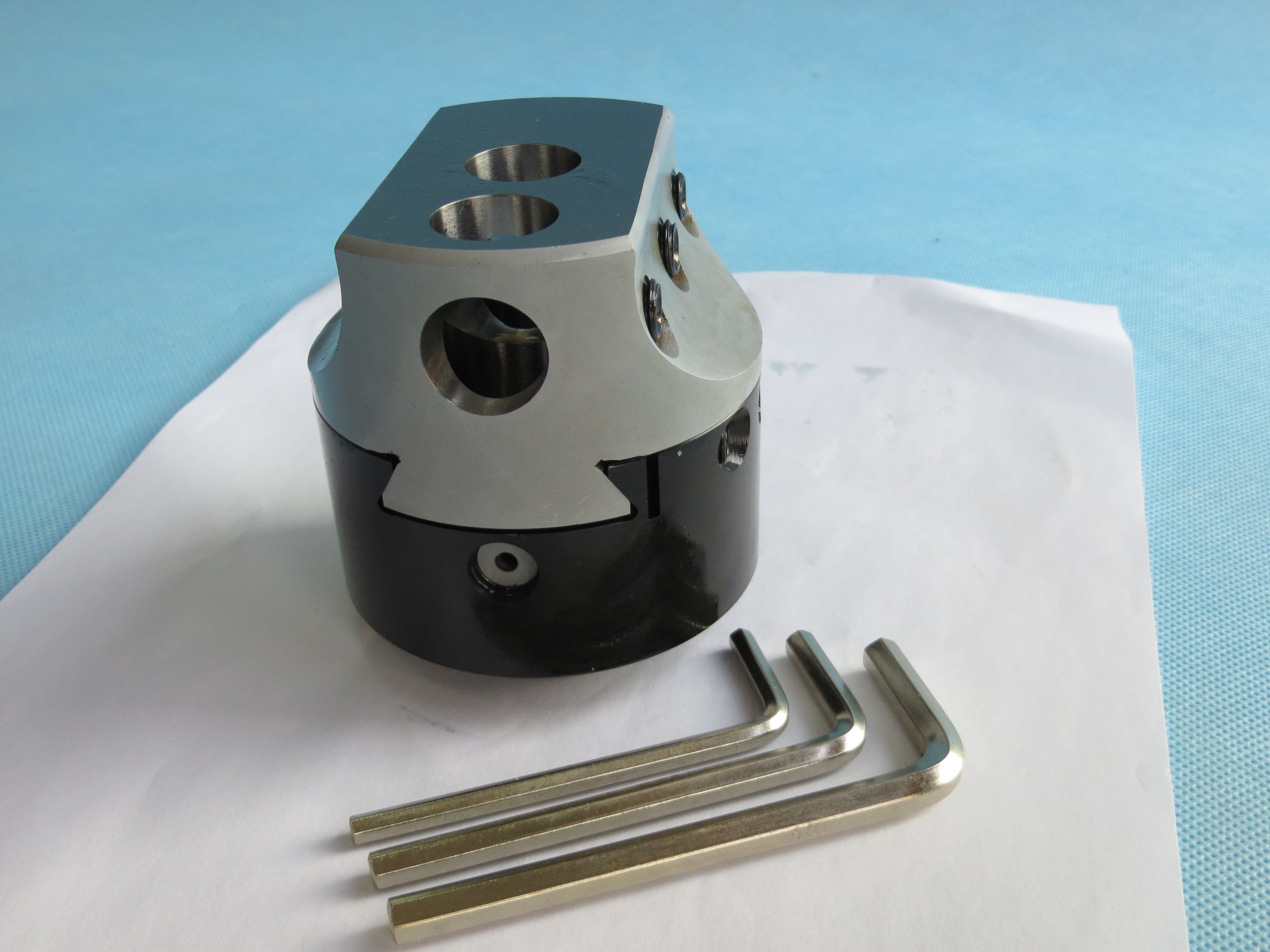

F1型镗头： F1 TYPE BORING HEAD

1.Using quality raw material and latest technology.
2.These boring heads are available in host of sizes, to meet the specific demands of our clients.

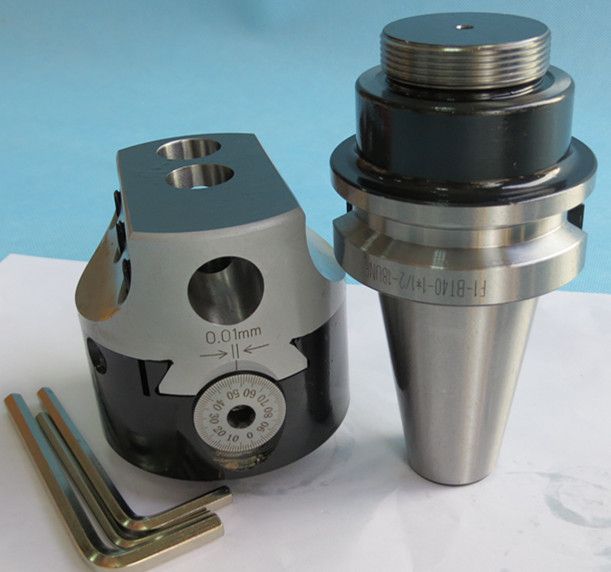

3.Its threaded back which can be fitted with interchangeable shanks R-8/ MT/ ISO/ BT taper.
4.All moving parts of the boring heads are hardened and ground to guarantee long life.

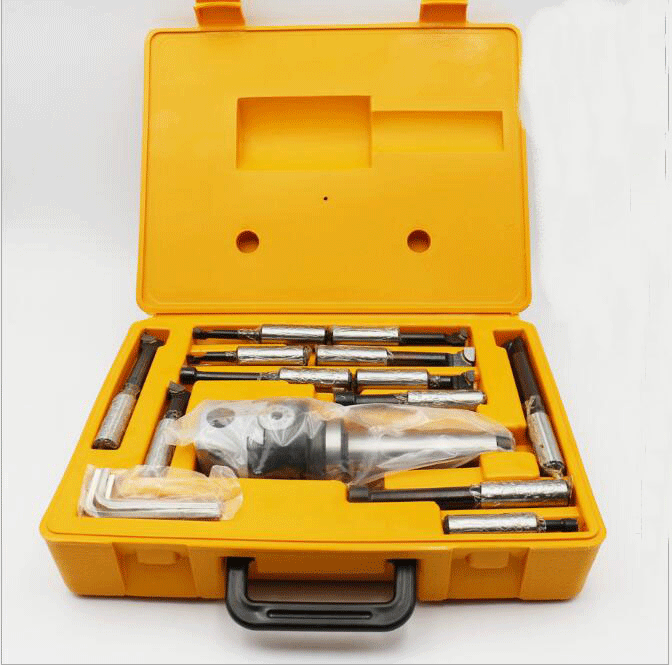

5.Precision boring head, shank and bar combo sets can be supplied.

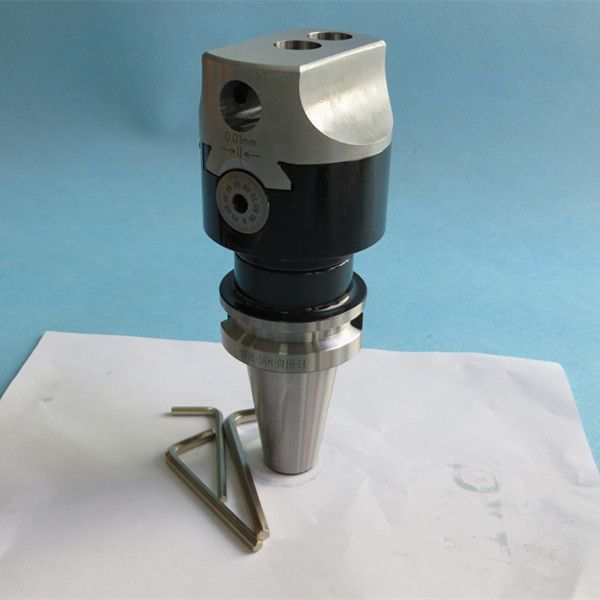

F1型镗刀柄 F1 BORING SHANK
1. High quality elastic steel material with long use time.
2. Holder hardness:48-55HRC
3. We can supply any type shank or connecting taper according to your requiremnts. BT/DIN/CAT/ISO/MS
4. The precision little than 0.01mm with balance 8000rpm.
5. Suitable Boring Bar & Wrench is also upon request.
6. Precision boring head, shank and bar combo sets can be supplied.

GD-0026		TYPE F1 BORING HEADS
Order No.	D mm	H mm	Max offset	Boring bar dia	Min graduation	Dia of Boring
Order No.	D mm	H mm	Max offset	Boring bar dia	Min graduation	Dia of Boring
F1-1/2	50		5/8＂	1/2＂	0.001＂	3/8＂-5＂
F1-3/4	75	80.2	1＂	3/4＂	0.0005＂	1/2-9＂
F1-1	100	93.2	1-5/8＂	1＂	0.0005＂	5/8＂-12.5＂
F1-12	50	61.6	16mm	12mm	0.01mm	10-125mm
F1-18	75	80.2	25mm	18mm		12-225mm
F1-25	100	93.2	41mm	25mm		15-320mm
