Face Mill

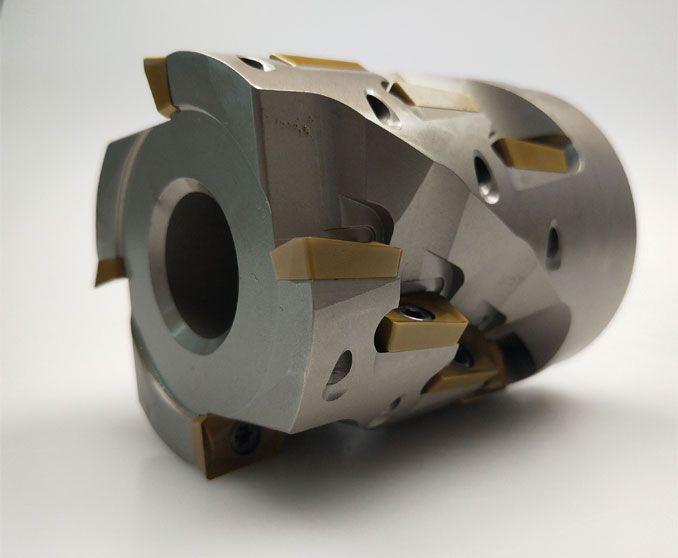

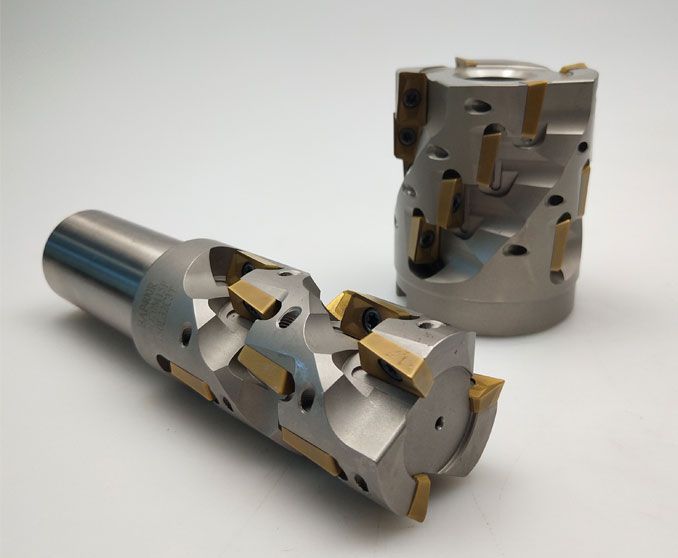

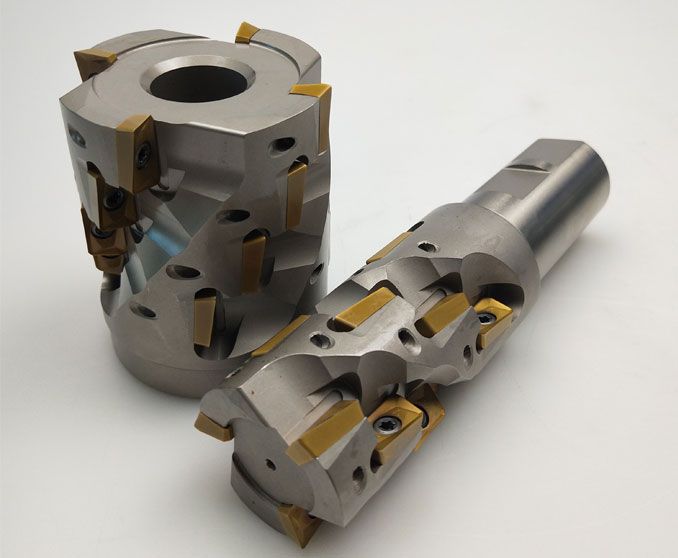

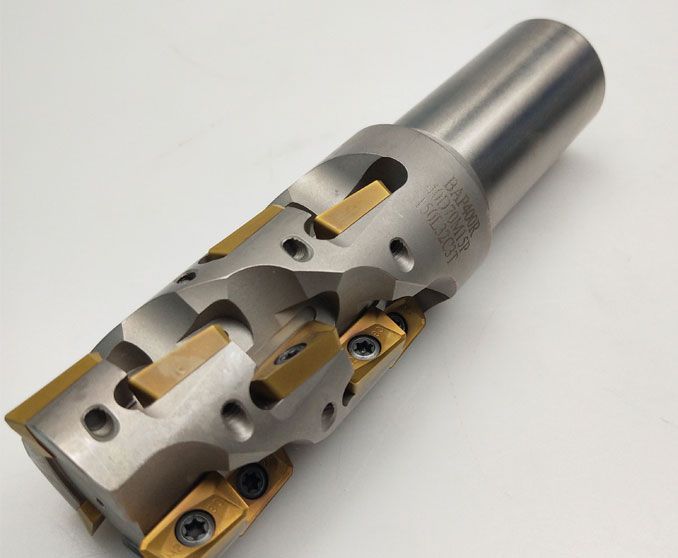

BT-AP CORN STALK CUTTER ROUGH CUT GD-00123

BT-AP CORN STALK CUTTER ROUGH CUT GD-00123

Item No.: CO162217734
Send Enquiry

1.Products name : BT-AP CORN STALK CUTTER ROUGN CUT
2.Material: 40crmo
3. application:0.003mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

GD-00123	BT-AP CORN STALK CUTTER ROUGH CUT
规格/型号 Model	尺寸 Size(mm)					刃数Teeth	刀片Blabe	刀片数 Blade number	刀片螺丝Blade screw	扳手 Wrench
	D	L1	L2	L3	L	刃数Teeth
	D	L1	L2	L3	L	T
BT40-D40-54M-3T-12Z-AP16	40	54		27		3	AP:1604	12	M4*10	T15
BT40-D40-70M-3T-15Z-AP16	40	70		27		3	AP:1604	15	M4*10	T15
BT40-D40-56M-3T-12Z-AP16	45	56		27		3	AP:1604	12	M4*10	T15
BT40-D50-56M-4T-16Z-AP16	50	56		27		4	AP:1604	16	M4*10	T15
BT40-D50-68M-3T-15Z-AP16	50	68		27		3	AP:1604	15	M4*10	T15
BT40-D50-70M-4T-20Z-AP16	50	70		27		4	AP:1604	20	M4*10	T15
BT40-D50-108M-3T-24Z-AP16	50	108		27		3	AP:1604	24	M4*10	T15
BT40-D63-81M-4T-24Z-AP16	63	81		27		4	AP:1604	24	M4*10	T15
BT50-D40-54M-3T-12Z-AP16	40	54		38		3	AP:1604	12	M4*10	T15
BT50-D50-54M-4T-16Z-AP16	50	54		38		4	AP:1604	16	M4*10	T15
BT50-D50-68M-3T-16Z-AP16	50	68		38		3	AP:1604	15	M4*10	T15
BT50-D50-70M-4T-20Z-AP16	50	70		38		4	AP:1604	20	M4*10	T15
BT50-D50-81M-3T-18Z-AP16	50	81		38		3	AP:1604	18	M4*10	T15
BT50-D50-108M-3T-24Z-AP16	50	108		38		4	AP:1604	24	M4*10	T15
BT50-D63-54M-4T-16Z-AP16	63	54		38		4	AP:1604	16	M4*10	T15
BT50-D63-81M-4T-24Z-AP16	63	81		38		4	AP:1604	24	M4*10	T15
BT50-D63-95M-4T-28Z-AP16	63	95		38		4	AP:1604	28	M4*10	T15
BT50-D63-135M-4T-40Z-AP16	63	135		38		4	AP:1604	40	M4*10	T15
BT50-D80-99M-5T-35Z-AP16	80	99		38		5	AP:1604	35	M4*10	T15
BT50-D80-120M-5T-45Z-AP16	80	120		38		5	AP:1604	45	M4*10	T15
BT50-D80-135M-5T-50Z-AP16	80	135		38		5	AP:1604	50	M4*10	T15
BT50-D100-118M-6T-54Z-AP16	100	118		38		6	AP:1604	54	M4*10	T15
BT50-D100-160M-6T-72Z-AP16	100	160		38		6	AP:1604	72	M4*10	T15
BT50-D100-280M-6T-108Z-AP16	100	280		38		6	AP:1604	108	M4*10	T15
