Face Mill

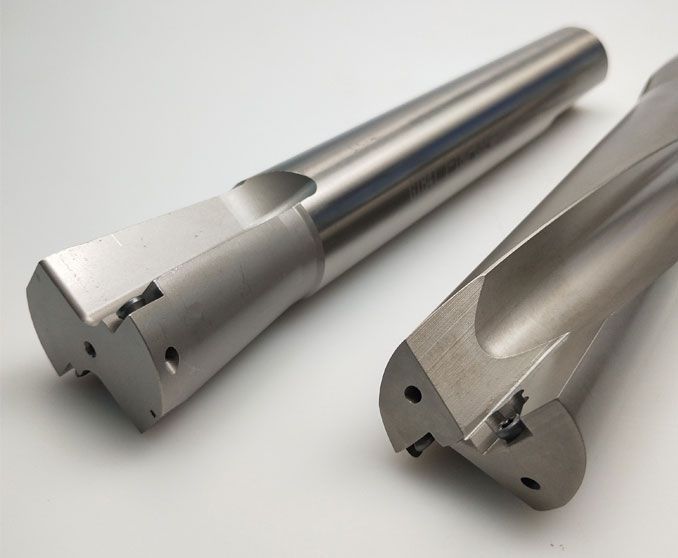

SKS HIGH FEEDRATE END MILL GD-00126

Item No.: CO162217734
Send Enquiry

1.Products name : SKA HIGH FEEDATE END MILL
2.Material: 40crmo
3. application:0.002mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

Produce features:
1.Use the anti-knocking tool steeel material quality.
2.After whole pre-hard.finshes again, two processing having the strain.

GD-00126	SKS HIGH FEEDRATE END MILL
规格/型号 Model		刃数Teeth	尺寸Size(MM)					刀片 Insert	压板Piece	螺钉Screw	扳手Wrench
规格/型号 Model		刃数Teeth						刀片 Insert	压板Piece	螺钉Screw	扳手Wrench
SKS05-20-C20-150-2T		2	20	20	150	45	1.25	WPMW050316ZTR WDHW050316ZTR	-	M3*7	T10
SKS05-20-C20-200-2T		2	20	20	200	45	1.25
SKS06-21-C20-150-2T		2	21	20	150	45	1.25
SKS06-21-C20-200-2T		2	21	20	200	45	1.25
SKS06-25-C25-150-2T		2	25	25	150	45	1.5	WPMW06T320ZTR WDHW060320ZTR	AMS-4	M4*9	T10
SKS06-25-C25-200-2T		2	25	25	200	45	1.5
SKS06-30-C32-150-2T		2	30	32	150	45	1.5
SKS06-30-C32-200-2T		2	30	32	200	45	1.5
SKS06-32-C32-150-2T		2	32	32	150	45	1.5
SKS06-32-C32-200-2T		2	32	32	200	45	1.5
SKS08-32-C32-150-2T		2	30	32	150	45	1.5	WDMW080520ZTR WDMT080520AER WDHW080520ZTR	CSY20	M4.510.5 M511	T20
SKS08-30-C32-200-2T		2	30	32	200	45	1.5
SKS08-32-C32-150-2T		2	32	32	150	45	1.15
SKS08-32-C32-200-2T		2	32	32	200	45	1.5
SKS08-33-C32-150-2T		2	33	32	150	45	1.5
SKS08-33-C32-200-2T		2	33	32	200	45	1.5
SKS08-40-C32-150-2T		2	40	32	150	45	2
SKS08-40-C32-200-2T		2	40	32	200	45	2
