CNC Tool Series

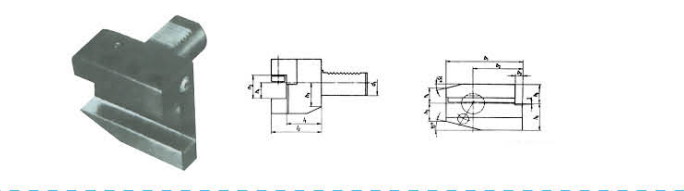

B5 Type VDI Tool Holder
- Item No.: CO18273483
- Send Enquiry
| Order No | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | L1 | L2 |
| B5-20X16X30 | 20 | 75 | 50 | 7 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 16 | 30 |
| B5-30X20X40 | 30 | 100 | 65 | 10 | 20 | 29 | 26 | 22 | 35 | 38 | 30 | 22 | 40 |
| B5-40X25X44 | 40 | 118 | 75.5 | 12.5 | 25 | 34 | 35 | 30 | 42.5 | 48 | - | 22 | 44 |
| B5-50X32X55 | 50 | 130 | 80 | 16 | 32 | 41 | 42 | 35 | 35 | 60 | - | 30 | 55 |
| B5-60X32X60 | 60 | 145 | 82.5 | 16 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | - | 30 | 60 |
