Collets series

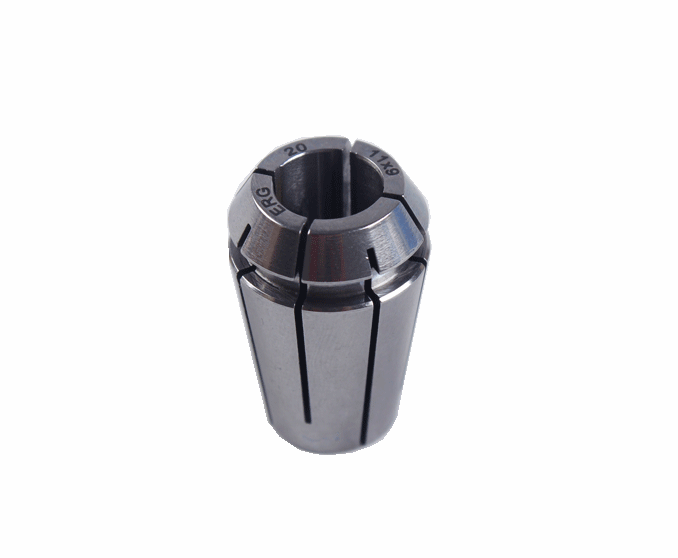

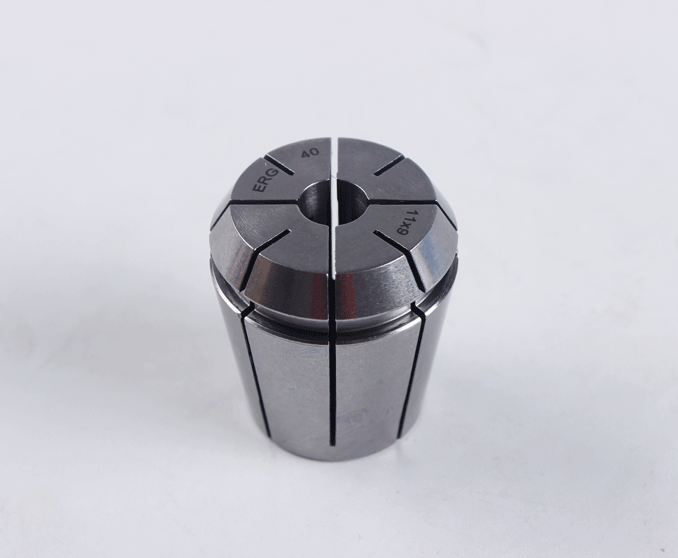

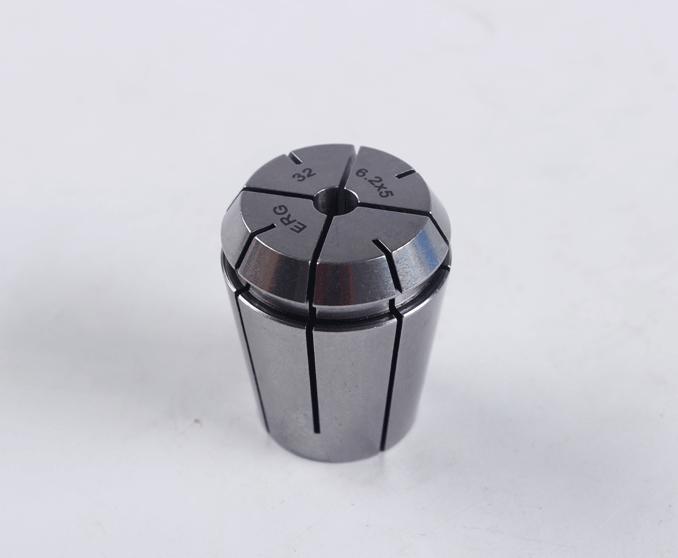

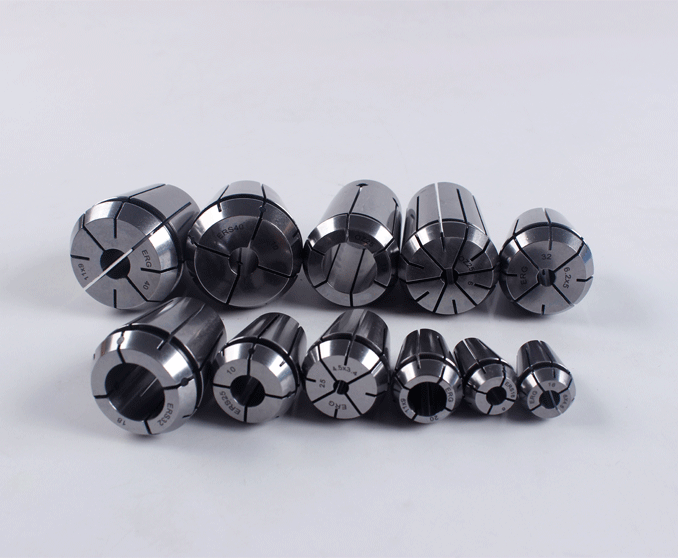

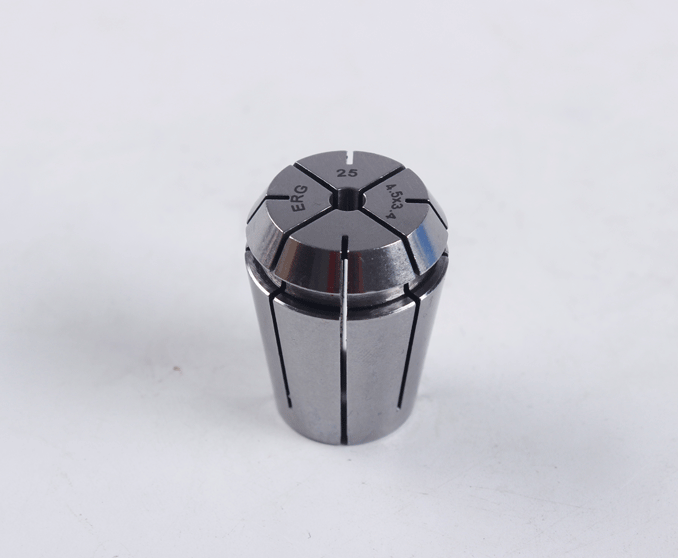

GD-0003 ERG tapping collet
- Item No.: CO154253734
- Send Enquiry
1.Products name : ERG tapping collet
2. Material: High quality spring steel 65Mn
3.Hardness : HRC44-48
4.Accuracy : 0.015mm
5.Type : ER16G ER20G ER25G ER32G ER40G
6.Brand : GD-TOOLS
7.Package : Plastic box paper box
8.Mini order quantity : 10pcs
| GD-0003 ERG TAPPING COLLET | ||||||
| Order No. | ER16G-d | ER20G-d | ER25G-d | ER32G-d | ER40G-d | |
| D | 16 | 20 | 25 | 32 | 40 | |
| L | 27.5 | 31.5 | 34 | 40 | 46 | |
| d | 3.5-8 | 3.5-10 | 3.5-16 | 3.5-20 | 3.5-25 | |
| dxa | 3.5×2.7 | 4.0×3.0 | 4.5×3.4 | 5.5×4.3 | 6.0×4.9 | 7.0×5.5 |
| 8.0×6.2 | 9.0×7.0 | 10×8.0 | 11×9.0 | 12×9.0 | 14×11 | |
| 16×12 | 18×14.5 | 20×16 | 22×18 | 25×20 | ||
