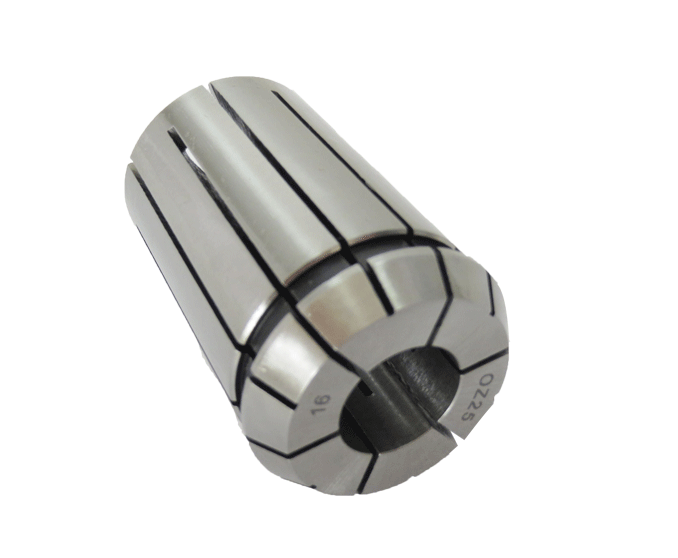

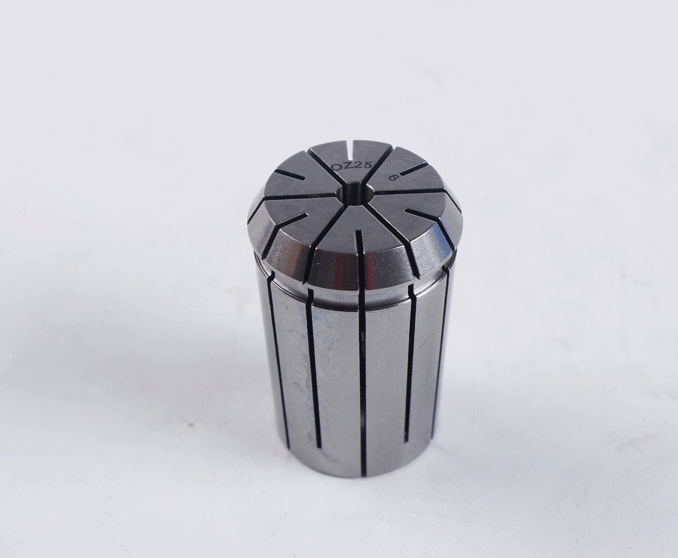

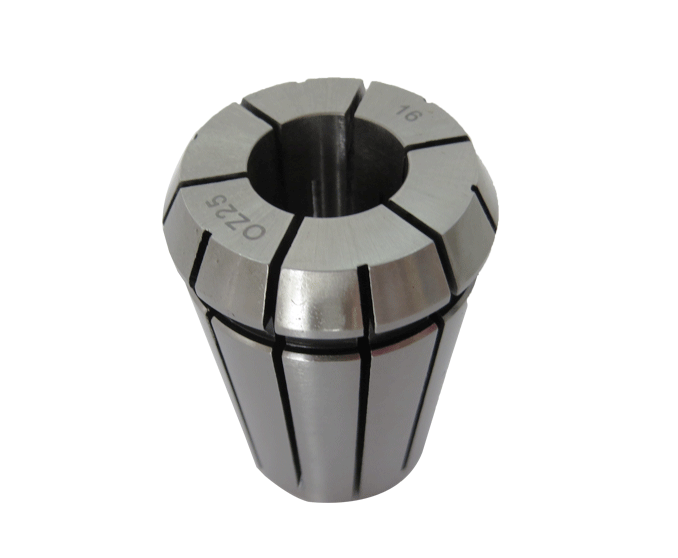

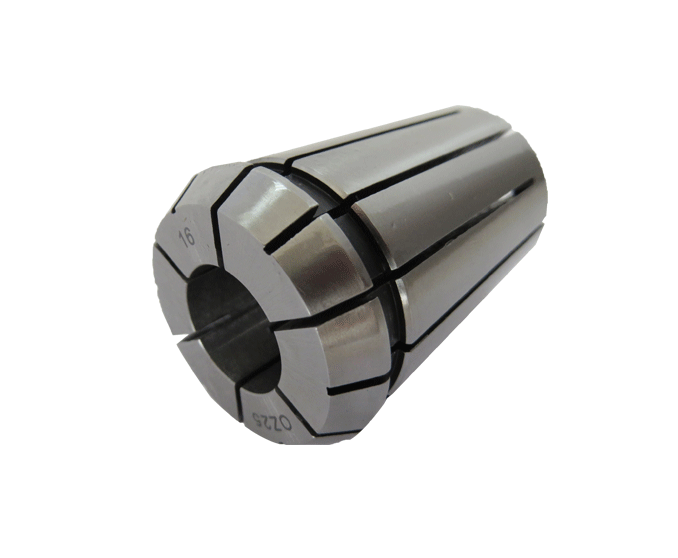

GD-0010 DIN6388B EOC COLLETS

Item No.: CO154116734
Send Enquiry

1.Products name : DIN6388B EOC COLLETS

2.Material:65Mn

3.Accuracy:0.015mm

4.Hardness:HRC44-48

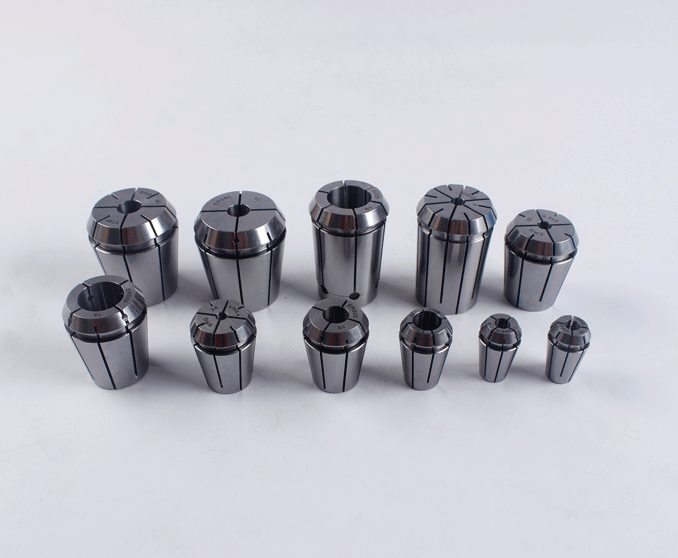

5.Type:EOC16B EOC20B EOC25B EOC32B EOC40B EOC50B

6.Mini order quantity: 10pcs

7.Package : Paper box

8.Brand : GD-TOOLS

9.0.5mm Max clamping range :0.5mm

GD-0010	DIN6388B EOC COLLETS
Model No.	D	D1	d	L	L1	L2	L3
EOC16B	22.65	25.5	2-16	40	5.5	1.2	9.5
EOC20B	27.4	29.8	2-20	45	6	1.5	10
EOC25B	32.9	35.05	2-25	52	6	1.4	10
EOC32B	41.3	43.7	4-32	60	6	1.15	11
EOC40B	49.7	52.2	6-40	68	6	1.45	12
EOC50B	61.1	63.8	8-50	80	7	1.45	13

Inspection of Accuracy
D	L	Run out tolerance
D	L	Ⅰ	Ⅱ
1.0-1.6	6	0.010	0.015
>1.6-3.0	10
>3.0-7.0	16
>7.0-10.0	25
>10.0-18.0	40	0.015	0.020
>18.0-24.0	50
>26.0-30.0	60
>30.0-50.0	80	0.020	0.030
