Drill Chuck Arbors Series

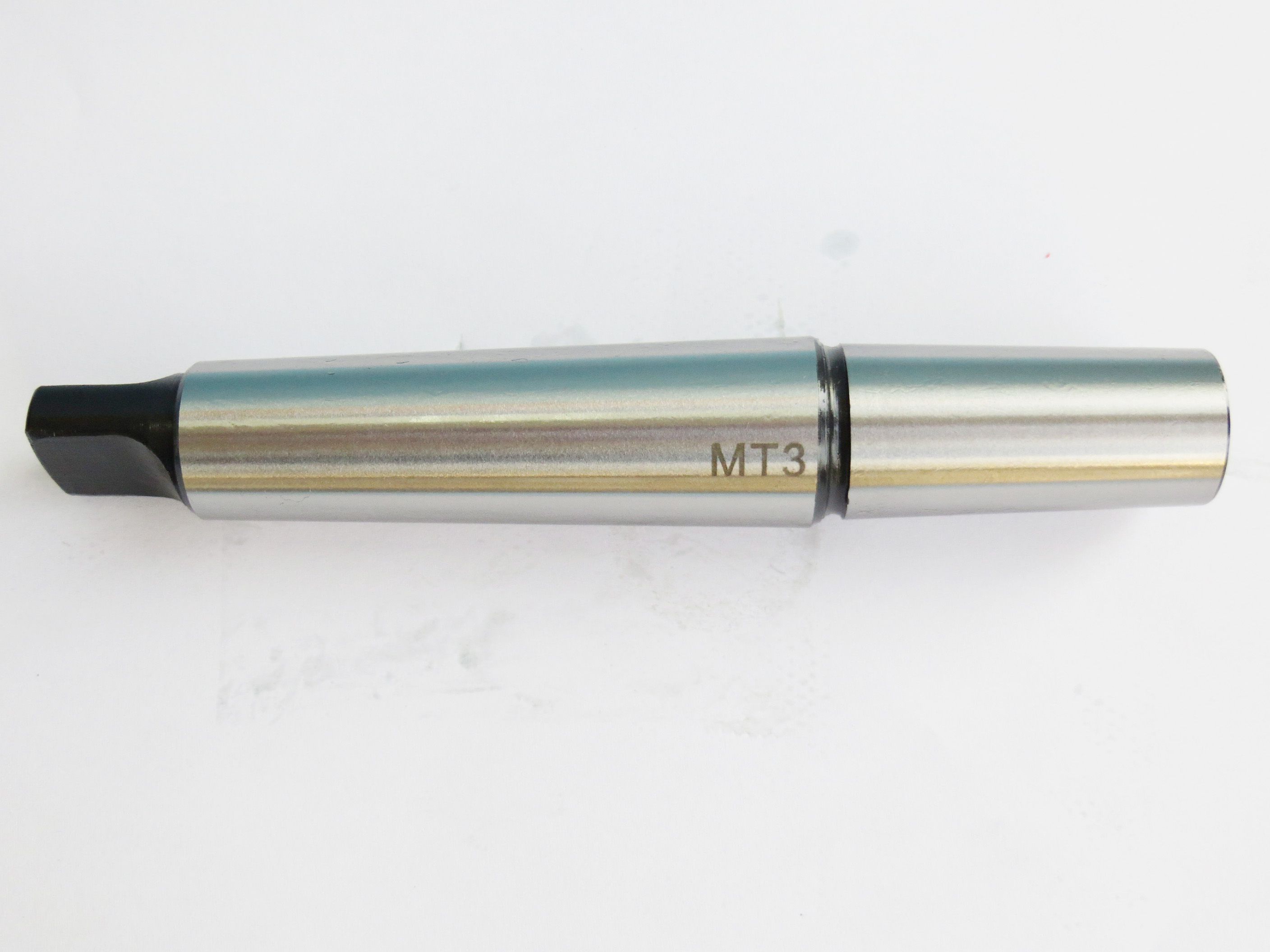

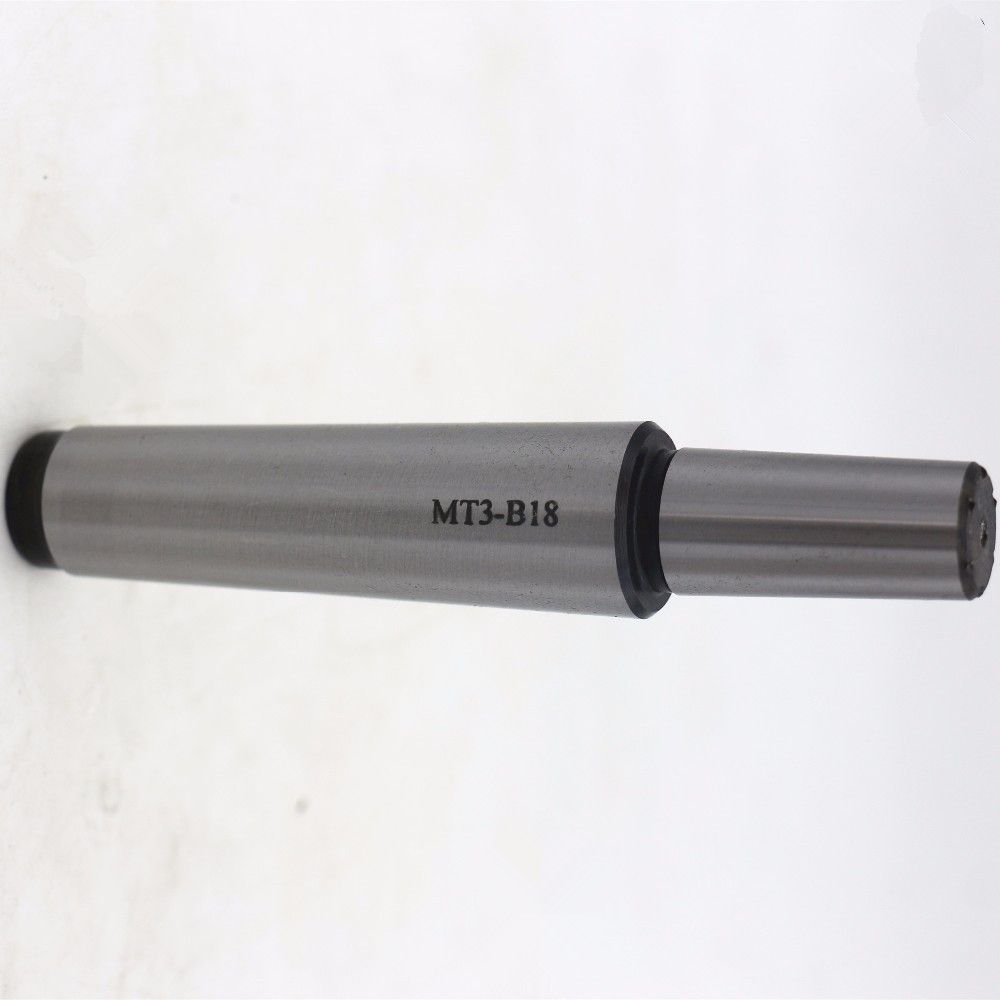

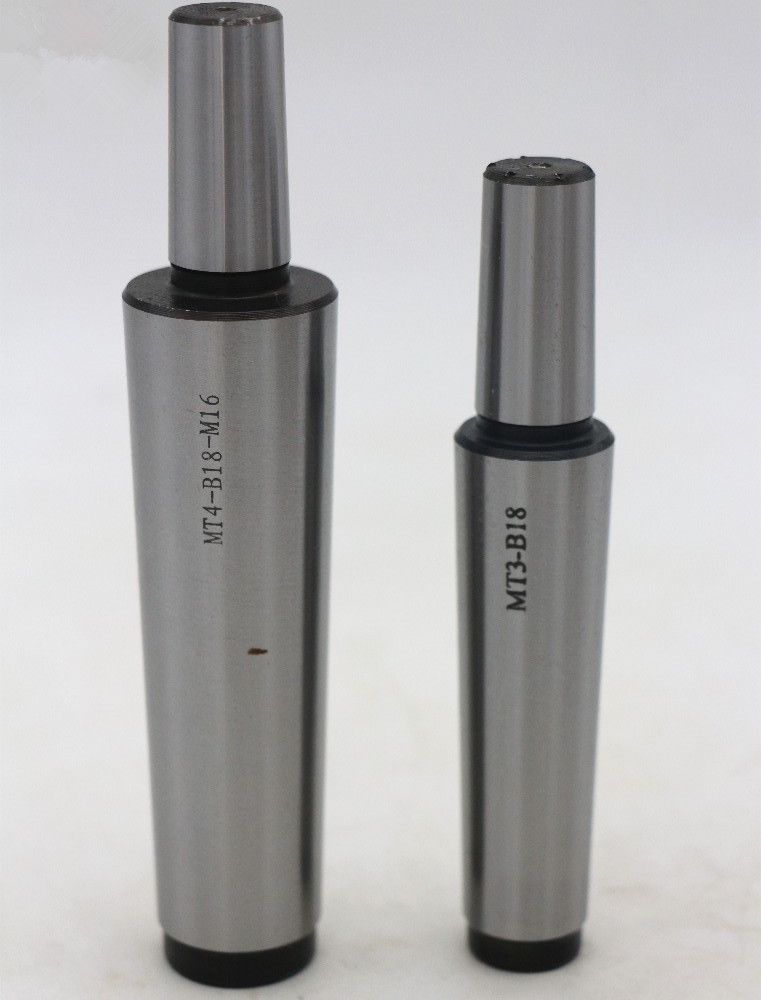

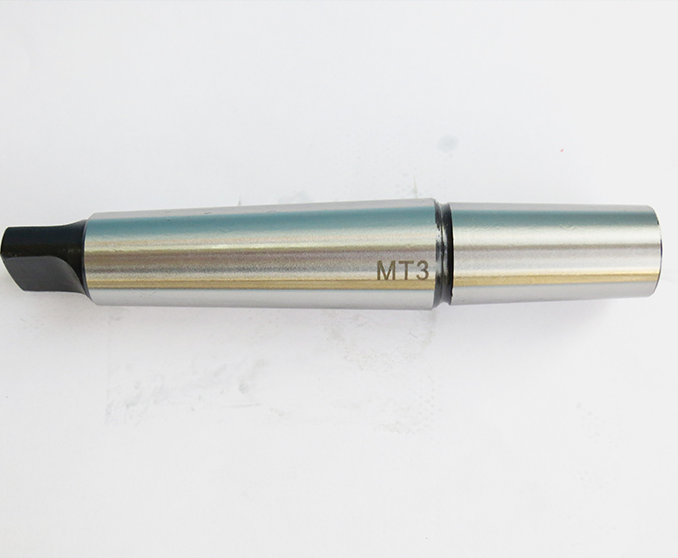

GD-0035 Morse Taper Drill Chuck
- Item No.: CO15501734
- Send Enquiry
1. High quality elastic steel material with long use time.
2. Type: A AD AD/B
3. Shank of the BT Taper Shell Mill Arbors：BT30 BT40 BT50 DIN69871 A30 DIN69871 A40 DIN69871 A50 CT30 CT40 CT50
4. Suitable Facing Cutter：13mm-50mm
5. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
6. Holder hardness:48-55HRC
7. Suitable Pull Stub& Facing Cutter is also upon request.
| Order No. MS.NO.W-NO.S | d (mm) | L (mm) | Order No. MS.NO.W-NO.S | d (mm) | L (mm) | Order No. MS.NO.W-NO.S | d (mm) | L (mm) |
| MS0W-J0 | 6.35 | 67 | MS2W-J6 | 17.17 | 97 | MS4W-J33 | 15.85 | 137 |
| MS0W-J1 | 9.754 | 72 | MS2W-J33 | 15.85 | 97 | MS4W-B10 | 10.094 | 130 |
| MS0W-J2 | 14.199 | 78 | MS2W-B10 | 10.094 | 90 | MS4W-B12 | 12.065 | 134 |
| MS0W-J3 | 20.599 | 87 | MS2W-B12 | 12.065 | 94 | MS4W-B16 | 15.733 | 141 |
| MS0W-J6 | 17.17 | 81 | MS2W-B16 | 15.733 | 101 | MS4W-B18 | 17.78 | 149 |
| MS0W-J33 | 15.85 | 81 | MS2W-B18 | 17.78 | 109 | MS4W-B22 | 21.793 | 158 |
| MS0W-B10 | 10.094 | 74 | MS2W-B22 | 21.793 | 117 | MS4W-B24 | 23.825 | 168 |
| MS0W-B12 | 12.065 | 78 | MS2W-B24 | 23.825 | 127 | MS5W-J2 | 14.199 | 161 |
| MS0W-B16 | 15.733 | 85 | MS3W-J1 | 9.754 | 105 | MS5W-J3 | 20.599 | 170 |
| MS0W-B18 | 17.78 | 93 | MS3W-J2 | 14.199 | 111 | MS5W-J4 | 28.55 | 181 |
| MS1W-J0 | 6.35 | 71 | MS3W-J3 | 20.599 | 120 | MS5W-J5 | 35.89 | 186 |
| MS1W-J1 | 9.754 | 76 | MS3W-J4 | 28.55 | 131 | MS5W-J6 | 17.17 | 164 |
| MS1W-J2 | 14.199 | 82 | MS3W-J5 | 25.89 | 136 | MS5W-J33 | 15.85 | 164 |
| MS1W-J3 | 20.599 | 91 | MS3W-J6 | 17.17 | 114 | MS5W-B16 | 15.733 | 168 |
| MS1W-J6 | 17.17 | 85 | MS3W-J33 | 15.85 | 114 | MS5W-B18 | 17.78 | 176 |
| MS1W-J33 | 15.85 | 85 | MS3W-B10 | 10.094 | 107 | MS5W-B22 | 21.793 | 185 |
| MS1W-B10 | 10.094 | 78 | MS3W-B12 | 12.065 | 111 | MS5W-B24 | 23.825 | 195 |
| MS1W-B12 | 12.065 | 82 | MS3W-B16 | 15.733 | 118 | MS6W-J3 | 20.599 | 224 |
| MS1W-B16 | 15.733 | 89 | MS3W-B18 | 17.78 | 126 | MS6W-J4 | 28.55 | 235 |
| MS1W-B18 | 17.78 | 97 | MS3W-B22 | 21.793 | 135 | MS6W-J5 | 35.89 | 240 |
| MS2W-J0 | 6.35 | 83 | MS3W-B24 | 23.825 | 145 | MS6W-J6 | 17.17 | 218 |
| MS2W-J1 | 9.745 | 88 | MS4W-J2 | 14.199 | 134 | MS6W-B33 | 15.85 | 218 |
| MS2W-J2 | 14.199 | 94 | MS4W-J3 | 20.599 | 143 | MS6W-B16 | 15.733 | 222 |
| MS2W-J3 | 20.599 | 103 | MS4W-J4 | 28.55 | 154 | MS6W-B18 | 17.778 | 230 |
| MS2W-J4 | 28.55 | 114 | MS4W-J5 | 35.89 | 159 | MS6W-B22 | 21.793 | 238 |
| MS2W-J5 | 35.89 | 119 | MS4W-J6 | 17.17 | 137 | MS6W-B24 | 23.825 | 248 |
