Drill Chuck Arbors Series

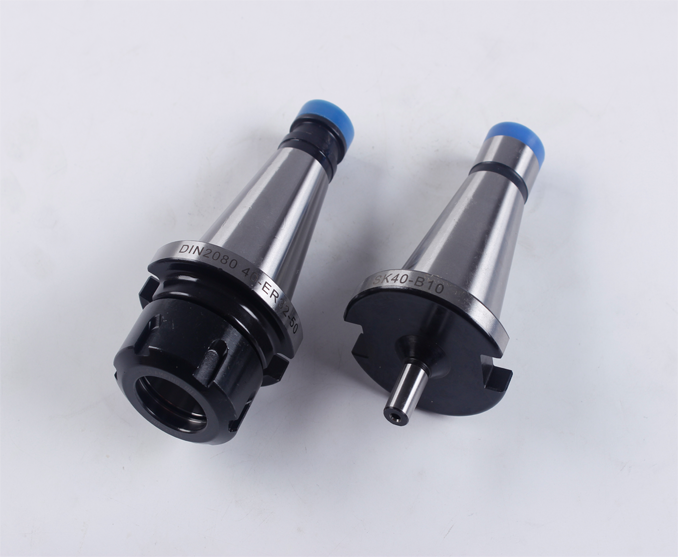

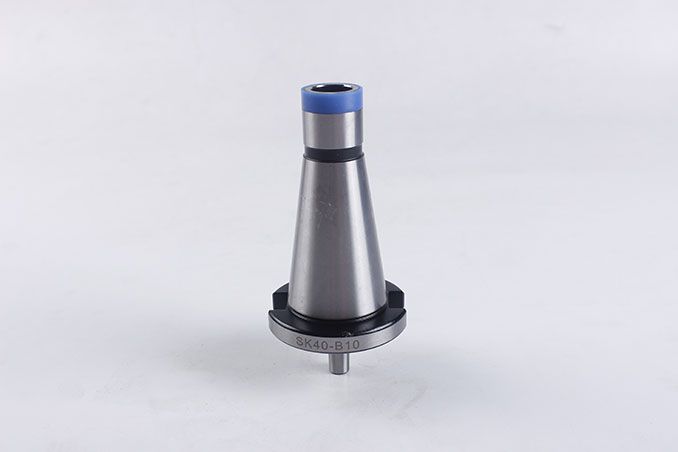

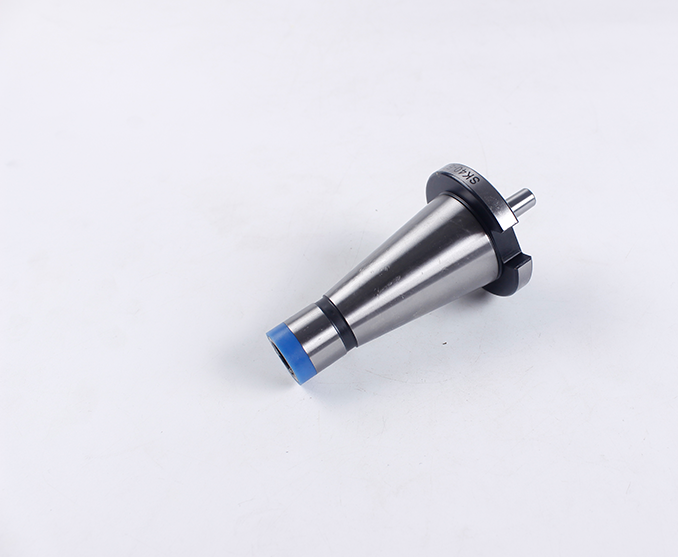

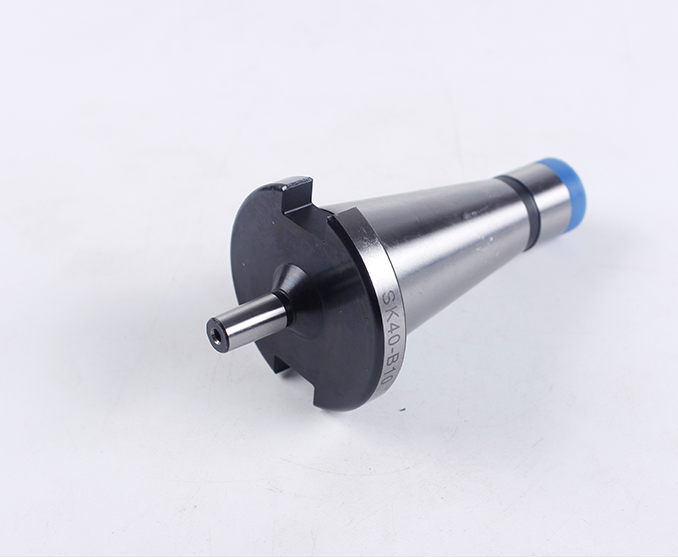

GD-0034 7:24 Drill Chuck Arbors
- Item No.: CO155024734
- Send Enquiry
1. High quality elastic steel material with long use time.
2. Type: 7:24 Drill Chuck Arbors
3. ISO30-J0 ,ISO30-J2,ISO40-J3
4. Suitable Facing Cutter：13mm-60mm
5. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand.
6. Holder hardness:48-55HRC
| Order No. 7:24-NO.S | D mm | d mm | L mm | M | Wt(kg) | Order No. 7:24-NO.S | D mm | d mm | L mm | M | Wt(kg) |
| ISO30-J0 | 31.75 | 6.35 | 99 | M12 | 0.313 | ISO50-J6 | 69.85 | 17.17 | 184 | M24 | 2.739 |
| ISO30-J1 | 9.754 | 106 | 0.326 | ISO50-J3 | 20.599 | 191 | 2.777 | ||||
| ISO30-J2S | 13.94 | 109 | 0.341 | ISO50-J4 | 28.55 | 202 | 2.953 | ||||
| ISO30-J2 | 14.199 | 113 | 0.349 | ISO50-J5 | 35.89 | 205 | 3.178 | ||||
| ISO30-J33 | 15.85 | 122 | 0.377 | ISO30-B10 | 31.75 | 10.094 | 104 | M12 | 0.325 | ||
| ISO30-J6 | 17.17 | 122 | 0.388 | ISO30-B12 | 12.065 | 108 | 0.33 | ||||
| ISO30-J3 | 20.599 | 123 | 0.426 | ISO30-B16 | 15.733 | 116 | 0.372 | ||||
| ISO30-J4 | 28.55 | 136 | 0.602 | ISO30-B18 | 17.78 | 124 | 0.393 | ||||
| ISO30-J5 | 35.89 | 145 | 0.827 | ISO30-B22 | 21.793 | 133 | 0.46 | ||||
| ISO40-J0 | 44.45 | 6.35 | 126 | M16 | 0.789 | ISO30-B24 | 23.825 | 143 | 0.518 | ||
| ISO40-J1 | 9.754 | 133 | 0.797 | ISO40-B10 | 44.45 | 10.094 | 132 | M16 | 0.801 | ||
| ISO40-J2S | 13.94 | 136 | 0.817 | ISO40-B12 | 12.065 | 136 | 0.809 | ||||
| ISO40-J2 | 14.199 | 141 | 0.829 | ISO40-B16 | 15.733 | 143 | 0.848 | ||||
| ISO40-J33 | 15.85 | 145 | 0.853 | ISO40-B18 | 17.78 | 151 | 0.869 | ||||
| ISO40-J6 | 17.17 | 145 | 0.864 | ISO40-B22 | 21.793 | 160 | 0.936 | ||||
| ISO40-J3 | 20.599 | 150 | 0.902 | ISO40-B24 | 23.825 | 169 | 0.994 | ||||
| ISO40-J4 | 28.55 | 165 | 1.028 | ISO50-B10 | 69.85 | 10.094 | 170 | M24 | 2.694 | ||
| ISO40-J5 | 25.89 | 170 | 1.303 | ISO50-B12 | 12.065 | 174 | 2.676 | ||||
| ISO50-J1 | 69.85 | 9.754 | 175 | M24 | 2.672 | ISO50-B16 | 15.733 | 182 | 2.723 | ||
| ISO50-J2S | 13.94 | 177 | 2.692 | ISO50-B18 | 17.78 | 195 | 2.744 | ||||
| ISO50-J2 | 14.199 | 180 | 2.704 | ISO50-B22 | 21.793 | 200 | 2.811 | ||||
| ISO50-J33 | 15.85 | 184 | 2.728 | ISO50-B24 | 23.825 | 215 | 2.869 |
