Precision Vise Series
Universal Vise cnc high precision powerful Tools woodworking vises
- Item No.: CO16245734
- Send Enquiry

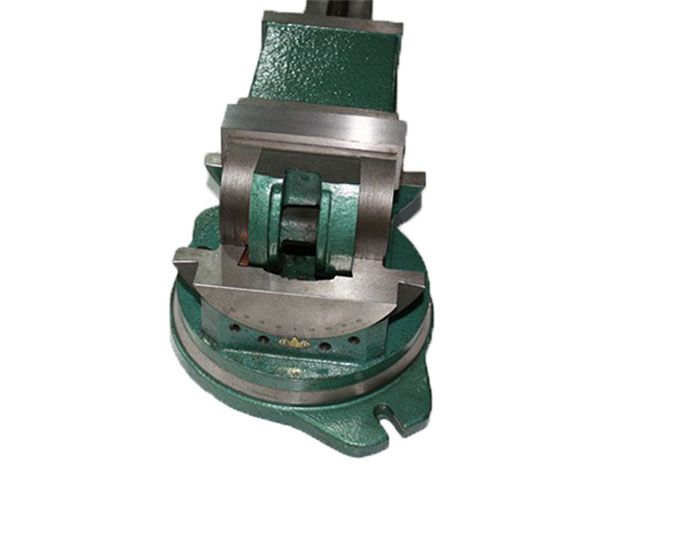

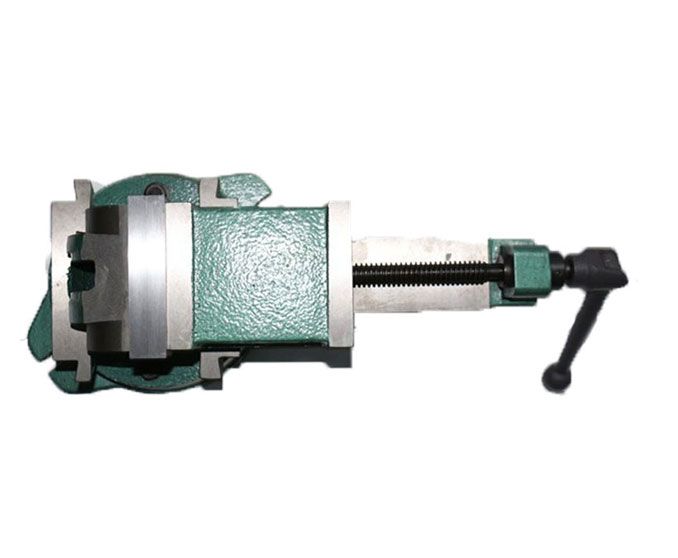

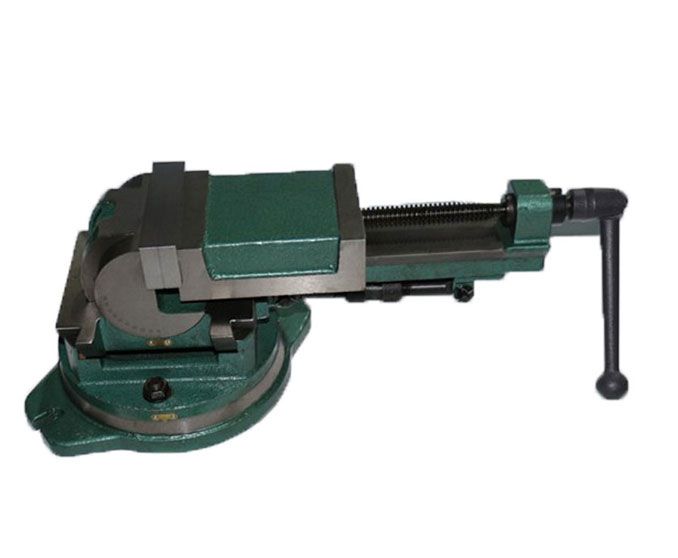

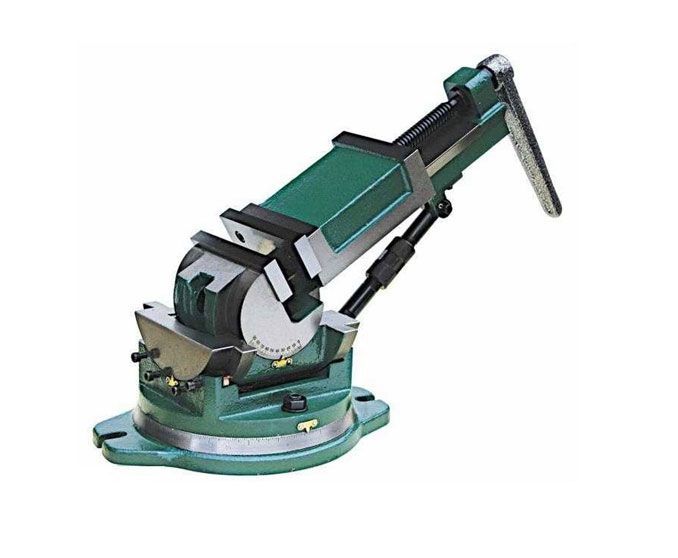

Universal Vise cnc high precision powerful Tools woodworking vises
Product name :QW UNIVERSAL TITING VISES
Hardness:HRC56~60
Squareness:0.025mm
Material:High-quanlity Alloy Steel
Type:Universal Vise
milling universal vises
1.It is made of high-quality cast iron
2.Parallelism 0.025mm/100mm ,squareness 0.025mm
3.It is used on machining and EDMcomplex parts
4.Attained fitting with a stop in three way ,by using such sircling delinable structure as vice body ,two way body and sliding base
| QW UNIVERSAL TILTING VISES | ||||||
| Order No. | Width of Jaw | Height of Jaw | Max. Opening | GW./NW. | Paking Shape | L×W×H |
| QW100 | 105 | 40 | 105 | 31/26 | wooden case | 51*34*25 |
| QW125 | 125 | 40 | 125 | 35/30 | 56*34*26 | |
