Sleeve Series

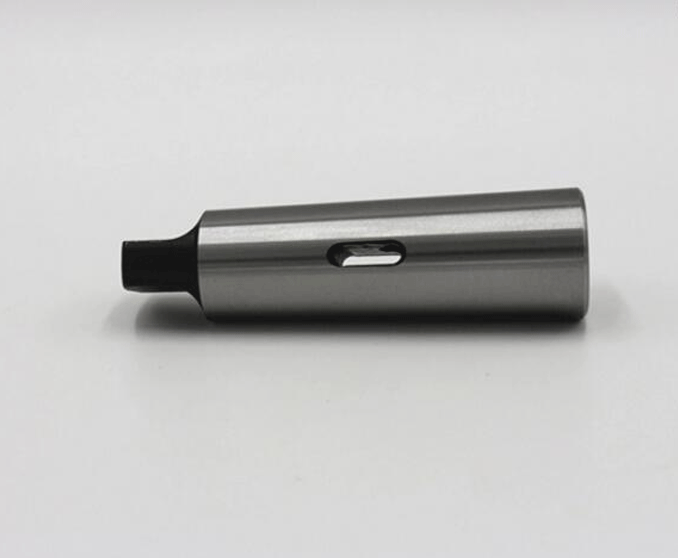

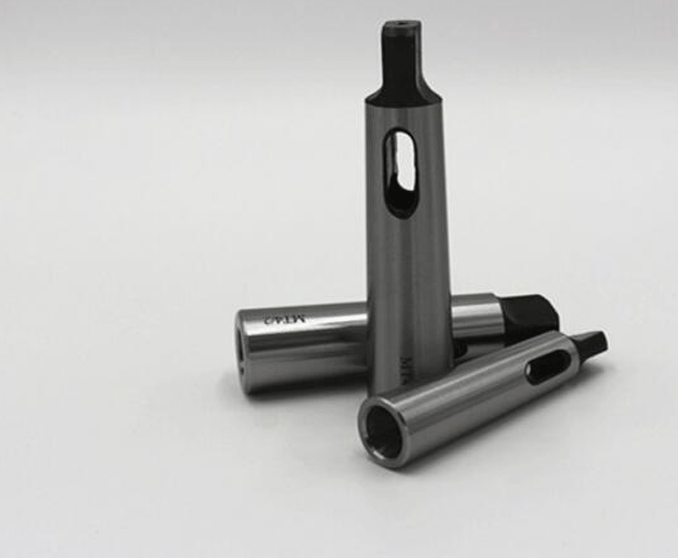

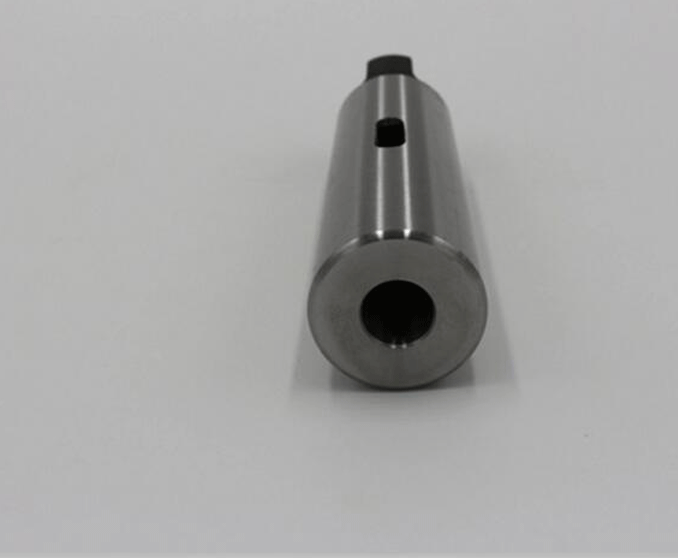

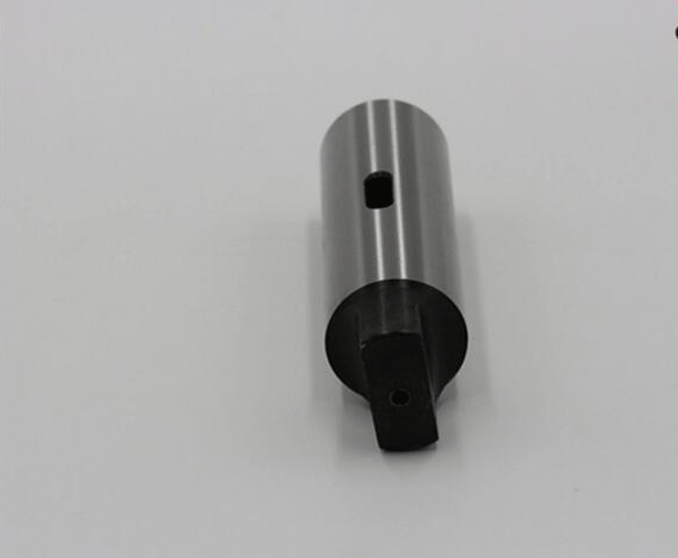

GD-0032 Morse Taper Sleeves
- Item No.: CO154845734
- Send Enquiry
DIN2185 Morse Taper Drill Sleeves:
Size:MT1,MT2,MT3,MT4,MT5,MT6
Model Number:MT6x4 Drill Sleeve
Type:Morse Taper Drill Sleeve
Material:65Mn
Standard:DIN2185 Drill Sleeve
Touch Surface:>=85% Drill Sleeve
Drill Sleeve:MT6x4 Drill Sleeve
Usage:Connection Drill Sleeves Size
Sample:Available MT4x3 Drill Sleeve
Package:Plastic boxes or Carton Boxes
Payment:T/T,L/C,Paypal,Western Union
Shipment:Within 30 days
| GD-0032 | DIN2185 Morse Taper Sleeves | ||||||
| Order No. | MS.NO.S | MS.NO.T | D(mm) | d(mm) | L(mm) | Wt(kg) | Accuracy(mm) |
| B1-0 | 1 | 0 | 13 | 9.045 | 80 | 0.1 | 0.015 |
| B2-1 | 2 | 1 | 18.6 | 12.065 | 92 | 0.1 | |
| B3-1 | 3 | 24.1 | 99 | 0.24 | |||
| B3-2 | 2 | 24.7 | 17.78 | 112 | 0.12 | ||
| B4-1 | 4 | 1 | 31.6 | 12.065 | 124 | 0.6 | |
| B4-2 | 2 | 17.78 | 0.5 | ||||
| B4-3 | 3 | 32.4 | 23.825 | 145 | 0.38 | ||
| B5-1 | 5 | 1 | 44.7 | 12.065 | 156 | 1.59 | 0.02 |
| B5-2 | 2 | 17.78 | 1.49 | ||||
| B5-3 | 3 | 23.825 | 1.36 | ||||
| B5-4 | 4 | 45.5 | 31.267 | 171 | 0.95 | ||
| B6-1 | 6 | 1 | 63.8 | 12.065 | 218 | 3.84 | |
| B6-2 | 2 | 17.78 | 3.73 | ||||
| B6-3 | 3 | 23.825 | 3.85 | ||||
| B6-4 | 4 | 31.267 | 3.12 | ||||
| B6-5 | 5 | 44.399 | 1.95 | ||||
