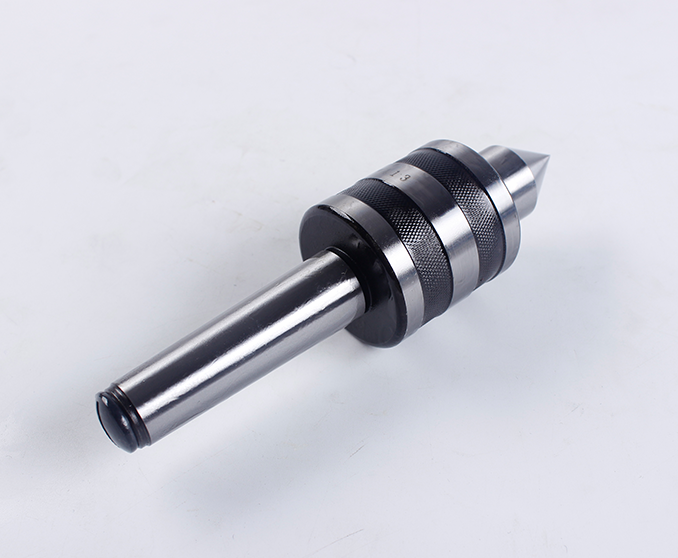

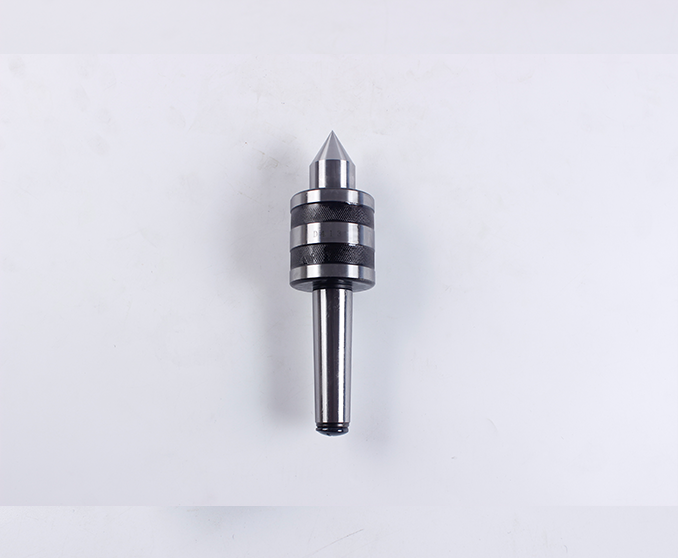

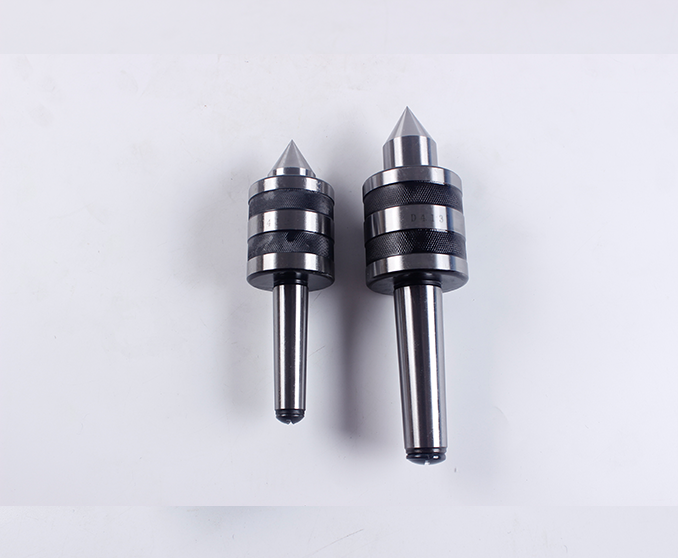

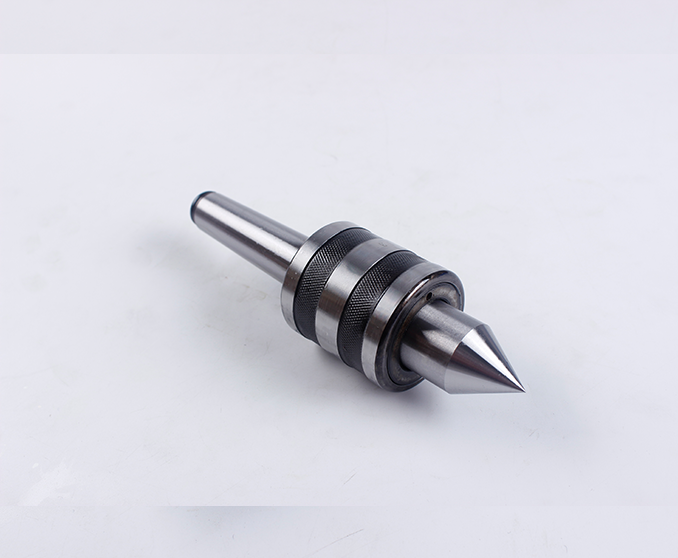

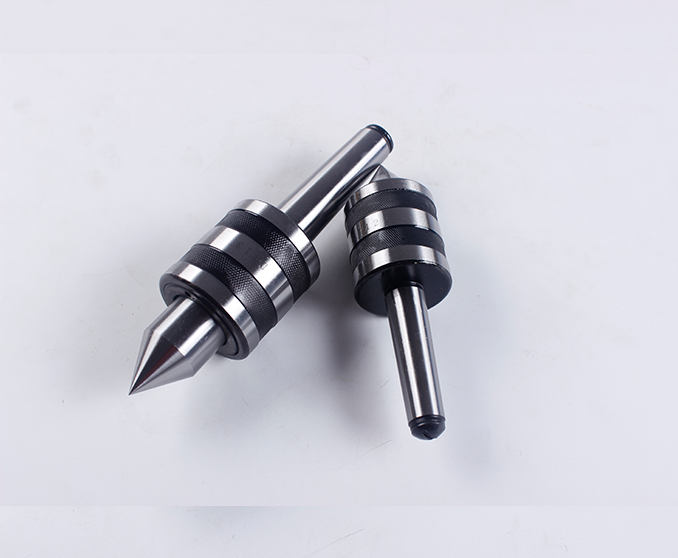

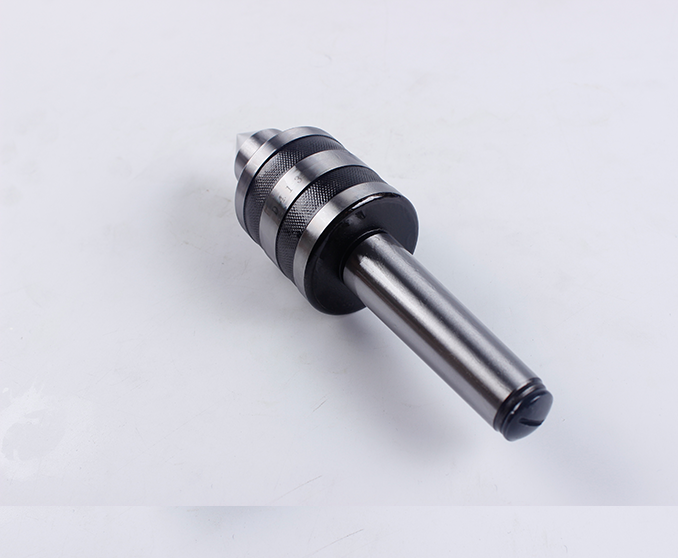

GD-0049 Medium Duty Live Center

Medium-Duty Live Center
1.material:mandrel use bearing steel
2.high rigidity and high durability
3.high precision:accuracy 0.01mm,high speed 12000rpm
4 Sub-zero treatment and Thermal aging process
5.Live center adopts precision matched angular contact bearing and integration with roller bearing,ensure high concentric precision.
6.Sealing ring at the fron end is dust proof and water proof,can avoid coolant influene the bearing,prolong the life of the live center.

GD-0049 MEDIUM-DUTY LIVE CENTER
Order No. MS. NO. L mm L1 mm D mm D1 mm d mm N Max Radial Load rpmMax Speed Wt(kg) Accuracy(mm)
D411 MS1 115 20 34 12.065 18 900 5000 0.29 0.01
D412 MS2 145 26 45 17.778 25 1500 5000 0.70 0.01
D413 MS3 170 30 52 23.825 28 2000 4200 0.93 0.01
D414 MS4 205.7 34.7 60 31.2677 32 3200 3200 1.70 0.01
D415 MS5 254 45 77 44.399 45 6300 2400 3.39 0.015
D416 MS6 362 68.5 125 63.348 75 10000 1600 12.00 0.015
D411L MS1 125 30 34 12.065 18 900 5000 0.31 0.01
D412L MS2 155 36 45 17.78 25 1500 5000 0.74 0.01
D413L MS3 183 43 52 23.825 28 2000 4200 0.99 0.01
D414L MS4 222 51 60 31.2677 32 3200 3200 1.80 0.01
D415L MS5 272 63 77 44.399 45 6300 2400 3.62 0.015
D416L MS6 382 88.5 125 63.348 75 10000 1600 12.69 0.015
