CNC Tool Series

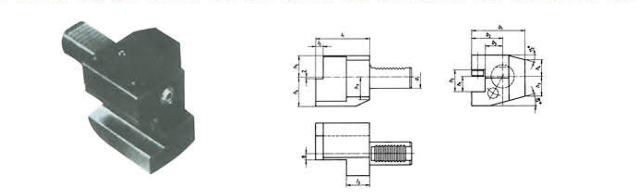

C2 Type Tool Holder
- Item No.: CO18197253
- Send Enquiry
| Order No | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | L1 | L2 | L3 |
| C2-20X16 | 20 | 65 | 40 | 26 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 50 | - | 30 |
| C2-30X20 | 30 | 76 | 41 | 23 | 20 | 29 | 26 | 22 | 28 | 38 | 30 | 70 | 10 | 30 |
| C2-40X25 | 40 | 90 | 47.5 | 25.5 | 25 | 34 | 35 | 30 | 32.5 | 48 | - | 85 | 12.5 | 30 |
| C2-50X32 | 50 | 105 | 55 | 30.5 | 32 | 41 | 42 | 35 | 35 | 60 | - | 100 | 16 | 40 |
| C2-60X32 | 60 | 125 | 62.5 | 33 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | - | 125 | 16 | 40 |
