Quick Change Tool Post

  • GD-0066 HeavyDuty Drilling&Boring Bar Holder
  • GD-0066 HeavyDuty Drilling&Boring Bar Holder
  • GD-0066 HeavyDuty Drilling&Boring Bar Holder
  • GD-0066 HeavyDuty Drilling&Boring Bar Holder
GD-0066 HeavyDuty Drilling&Boring Bar Holder GD-0066 HeavyDuty Drilling&Boring Bar Holder GD-0066 HeavyDuty Drilling&Boring Bar Holder GD-0066 HeavyDuty Drilling&Boring Bar Holder

GD-0066 HeavyDuty Drilling&Boring Bar Holder

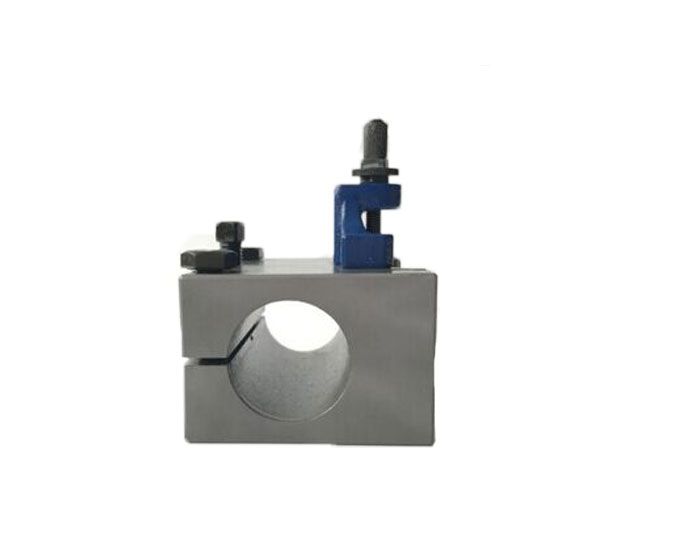

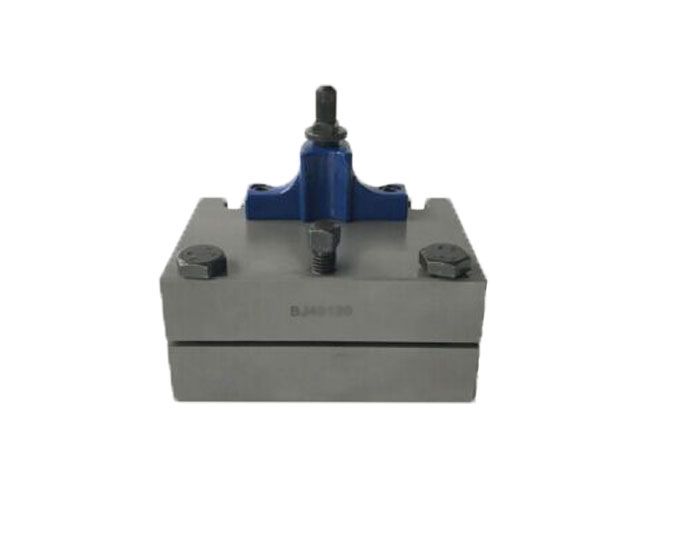

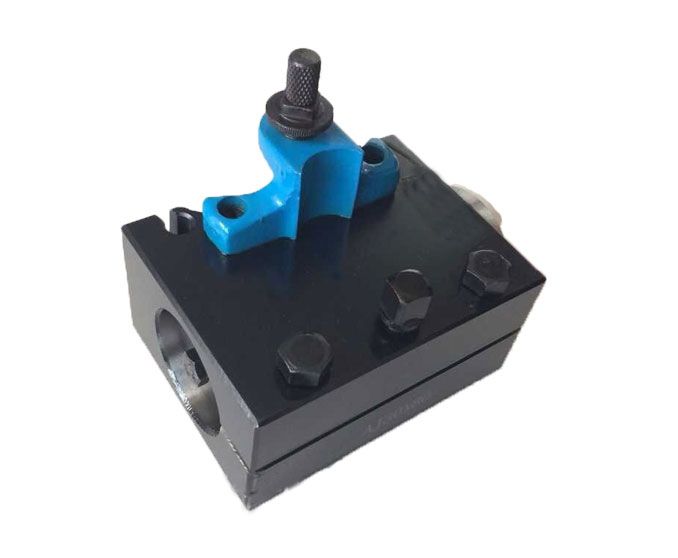

Product name :HeavyDuty Drilling&Boring Bar Holder

Application:Quick-change tool holders are characterized by their unlimited diversity in the use of lathe tools,drills,reamers and boring bars

Accuracy:0.01mm

Hardness:HRC50--60

Category:Machine tool accessories

Material:High-quality steel

1. cam-lock handle rigidity locks & quickly releases tool holder.

2. correct height of cutting edge is easily and accurately adjusted by special set screws.

3. tools can be reground without removal form tool holder setting remains unaltins unaltered.

4. 40 different angles (every 9º) are conveniently selected from position dials with marker.

5. holders are interchangeable with most other brand 40 position tool post.

HEAVY DUTY DRILLING AND BORING HOLDER

  强力钻镗用刀夹
GD-0066 HEAVY DUTY DRILLING AND BORING HOLDER

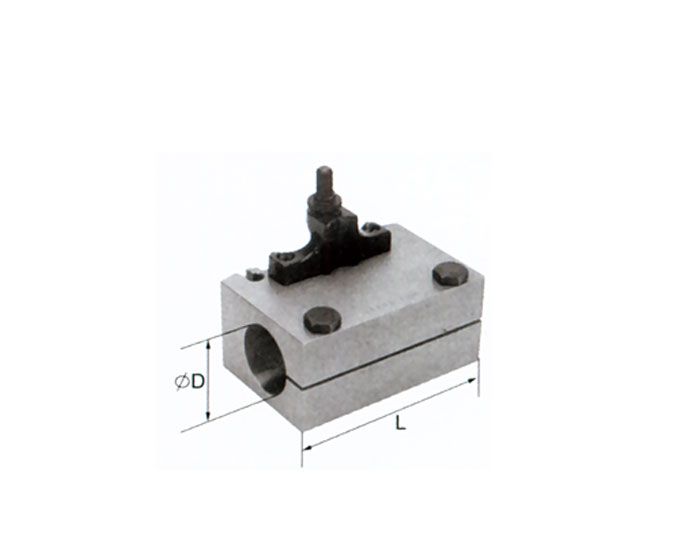

Order No. Boring Bar Dia D(mm) L(mm) Order No. Boring Bar Dia D(mm) L(mm)
AaJ15×50 15 50 BJ40×120 40 120
AJ30×80 30 80 CJ40×160 40 160
EJ30×100 30 100 CJ50×160 50 140
EJ40×100 40 100
