Boring Heads Series
GD-0027 F1 BORING SHANK
- Item No.: CO154551734
- Send Enquiry

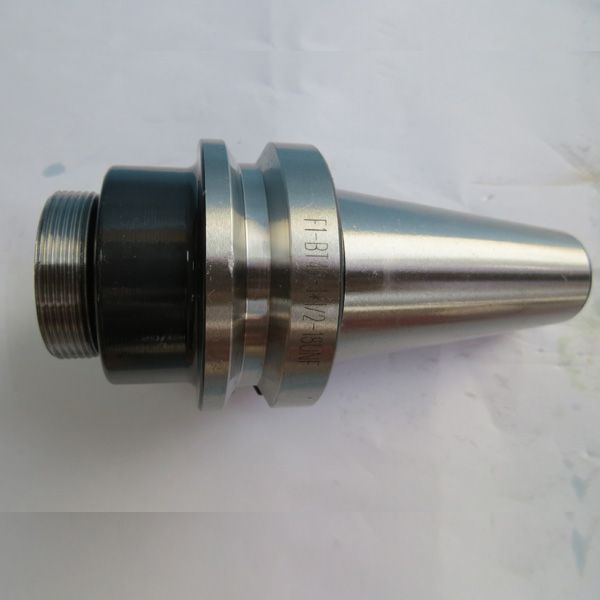

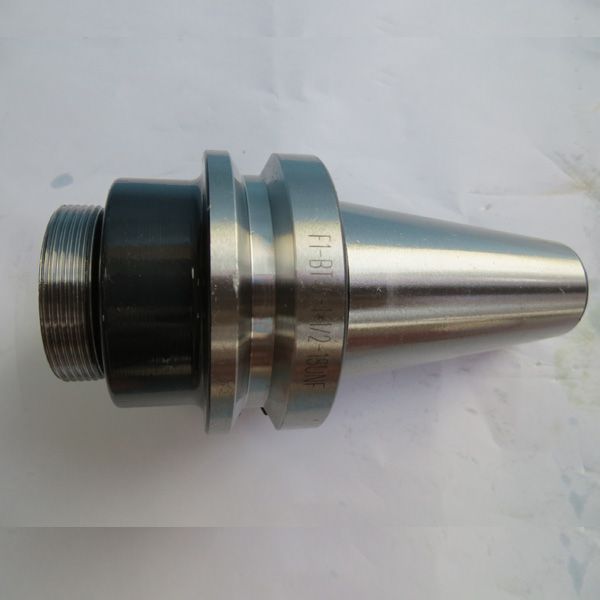

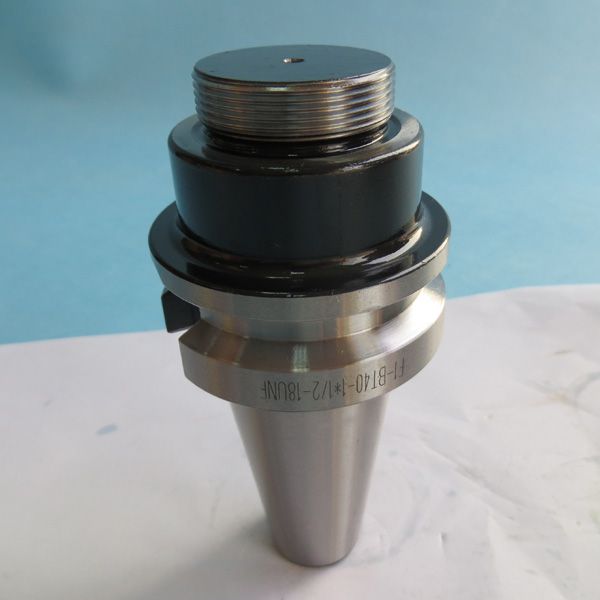

F1 BORING SHANK
1.High quality elastic steel material with long use time.
2.Holder hardness:48-55HRC
3.We can supply any type shank or connecting taper according to yourrequiremnts. BT/DIN/CAT/ISO/MS
4.The precision little than 0.01mm with balance 8000rpm.
5.Suitable Boring Bar & Wrench is also upon request.
6.Precision boring head, shank and bar combo sets can be supplied.
| GD-0027 | F1 BORING SHANK | ||||||
| Oorder No. | Shank | L(mm) | M | Order No. | Shank | L(mm) | M |
| F1-MS2W | MS2 | 93 | 7/8＂-20 1-1/2＂-18 | F1-ISO40 | ISO40 | 135 | 7/8＂-20 1-1/2＂-18 |
| F1-MS2 | 108 | F1-ISO50 | ISO50 | 168 | |||
| F1-MS3W | MS3 | 110 | F1-5/8 | 5/8＂ | 97 | ||
| F1-MS3 | 128 | F1-3/4 | 3/4＂ | 112 | |||
| F1-MS4W | MS4 | 133 | F1-7/8 | 7/8＂ | 127 | ||
| F1-MS4 | 154 | F1-1 | 1＂ | 137 | |||
| F1-MS5W | MS5 | 160 | F1-1-1/4 | 1-1/4＂ | 167 | ||
| F1-MS5 | 186 | F1-1-1/2 | 1-1/2＂ | 197 | |||
| F1-MS6W | MS6 | 214 | F1-1-3/4 | 1-3/4＂ | 227 | ||
| F1-MS6 | 248 | BT40×7/8 “－20－45 | BT40 | 122.4 | |||
| F1-R8 | R8 | 132.5 | DIN69871.A40×7/8＂-20-40 | DIN69871.40 | 120.4 | ||
| F1-ISO30 | ISO30 | 102 | CT40×7/8＂-20-50 | CT40 | 130 | ||
