GD-0050 Extended Medium Duty Live Center

GD-0050 Extended Medium Duty Live Center

Item No.: CO155539734
Send Enquiry

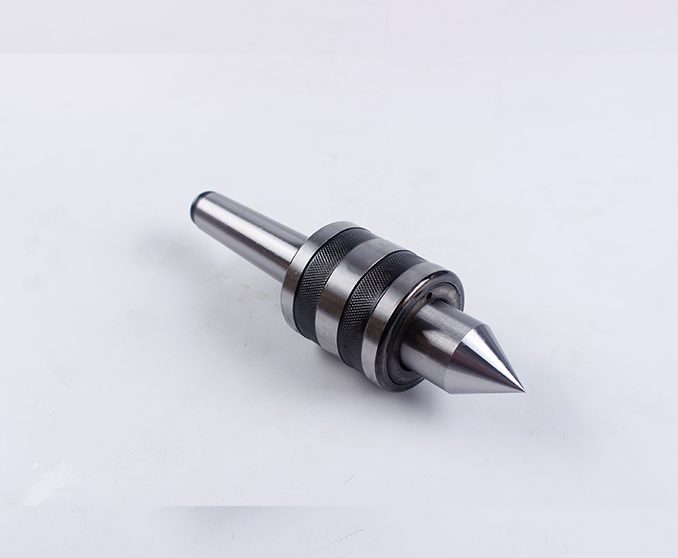

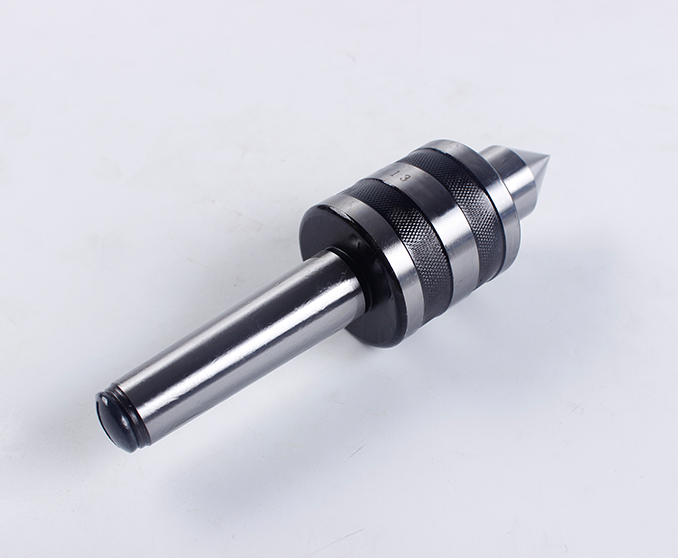

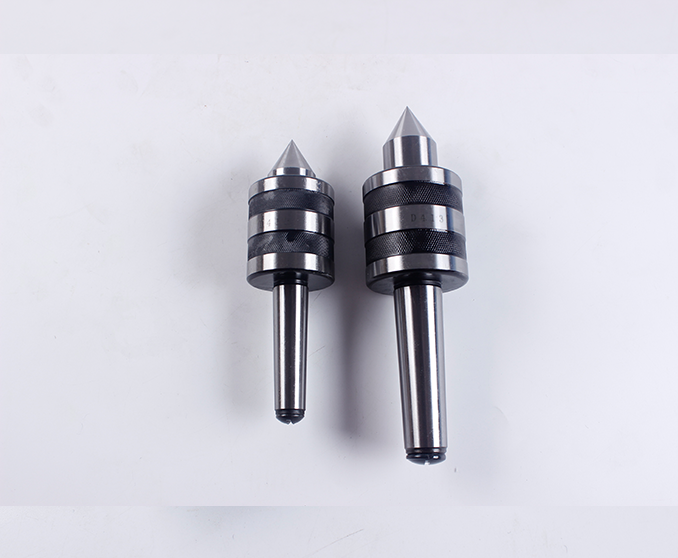

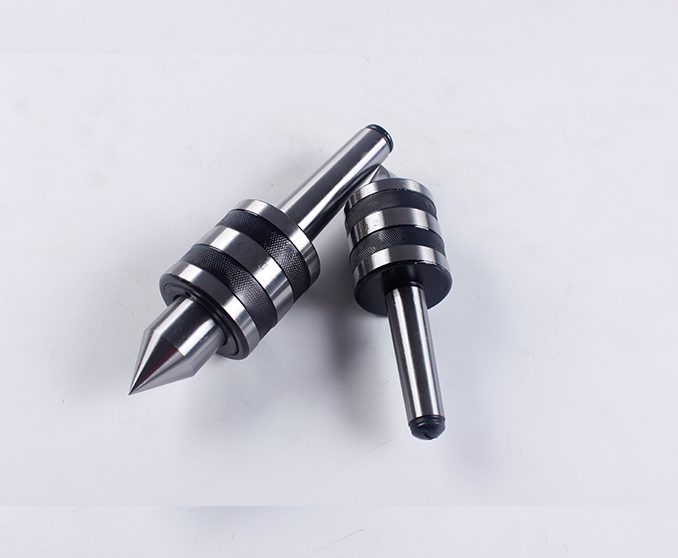

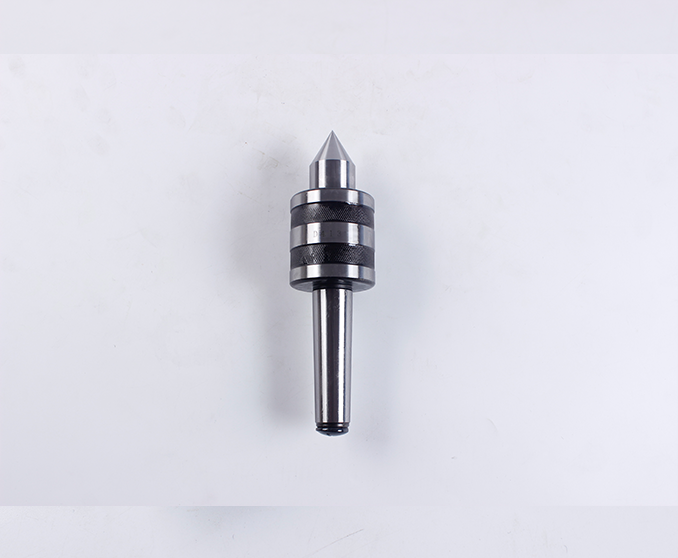

Medium-Duty Live Center
1.material:mandrel use bearing steel
2.high rigidity and high durability
3.high precision:accuracy 0.01mm,high speed 12000rpm
4 Sub-zero treatment and Thermal aging process
5.Live center adopts precision matched angular contact bearing and integration with roller bearing,ensure high concentric precision.
6.Sealing ring at the fron end is dust proof and water proof,can avoid coolant influene the bearing,prolong the life of the live center.

GD-0050	MEDIUM-DUTY LIVE CENTER
Order No.	MS.NO.	L1	D	D1	D2	L	Wt
		(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
D412B	MS2	28.5	40	17.780	18	141	0.84
D413B	MS3	36.5	45	23.825	22	168	0.91
D414B	MS4	36.5	45	31.267	22	190	1.62
D415B	MS5	62	78	44.399	40	267.5	3.43
D416B	MS6	72	102	63.348	50	346.5	11
