Collets series
R8 collets
- Item No.: CO181134638
- Send Enquiry

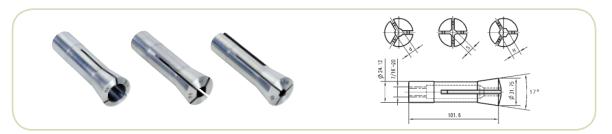

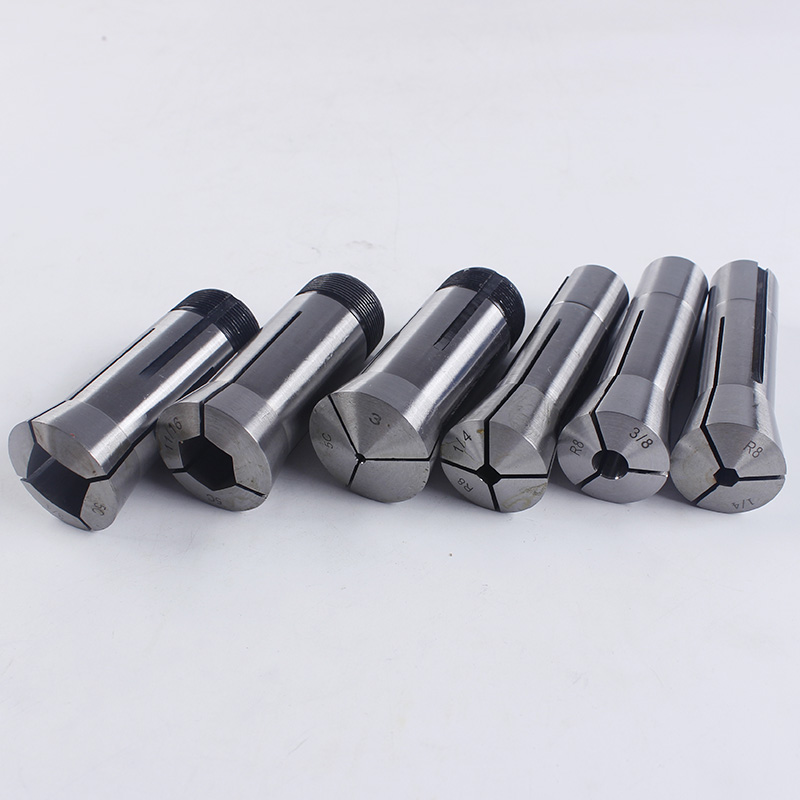

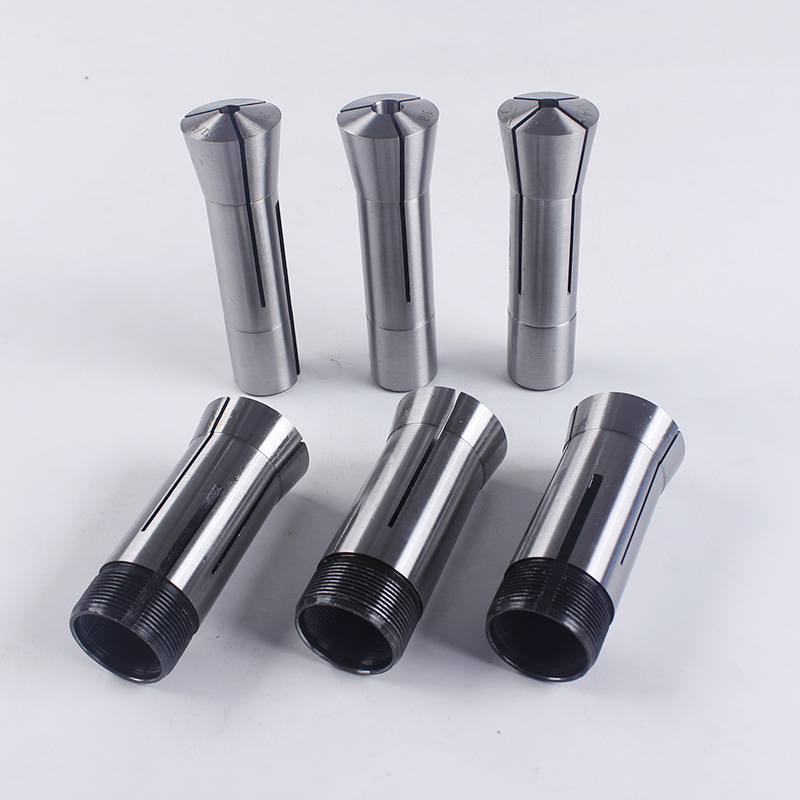

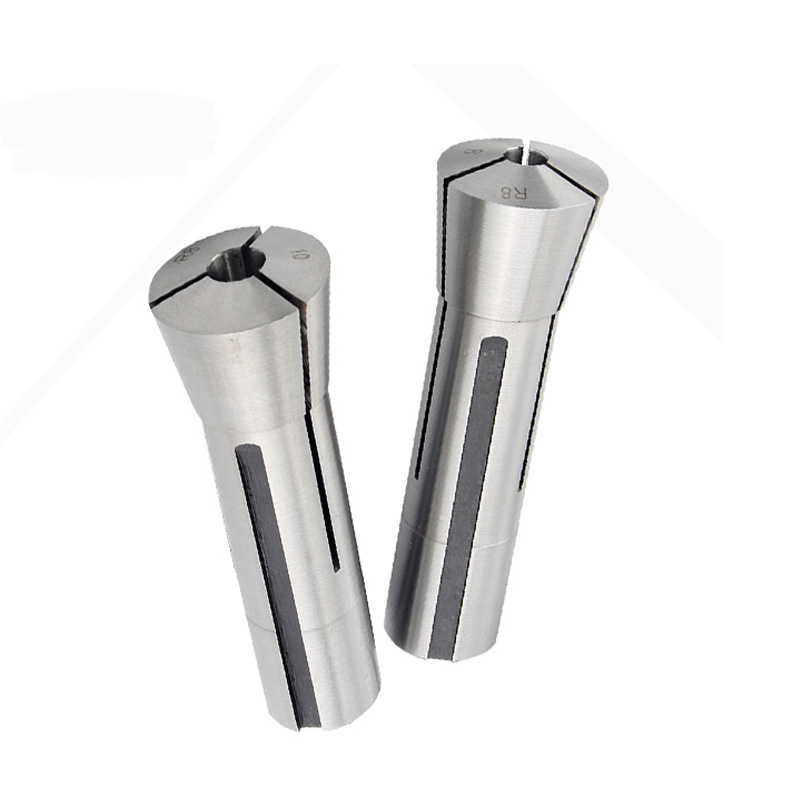

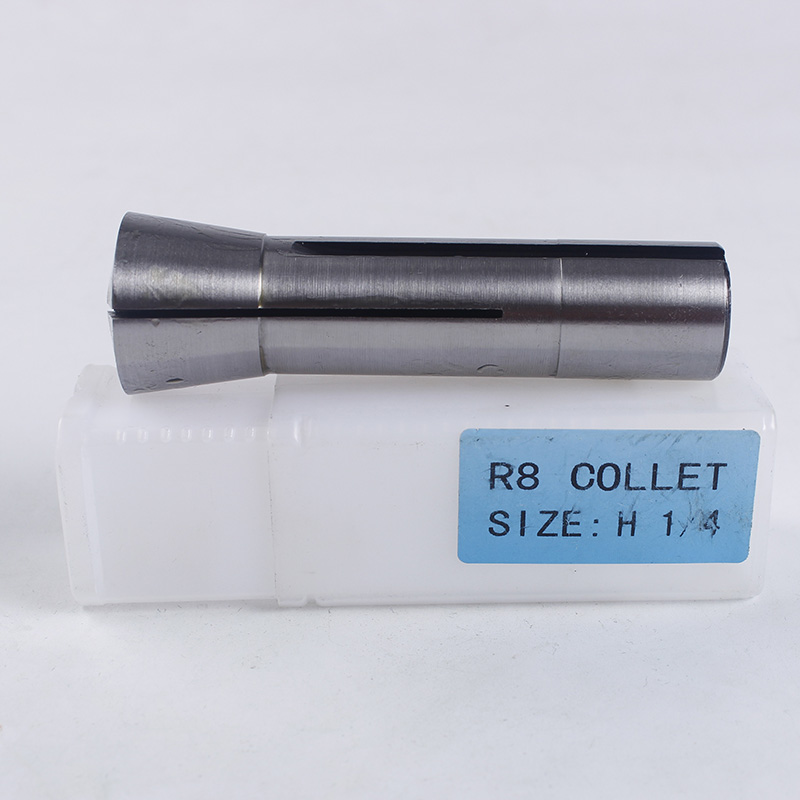

1.Product name: R8 collet
2.Hardness: clamping part HRC55~60
elastic part HRC40~45
3.The unit is applicable to all sorts of milling machines, which sapindle taper hole is R8 ,such as X6325, X5325 etc.
| Order No. | Type | Clamping range | Wt(kg) | ||
| mm | In | ||||
| R8-01-d | Round | 1-20 | 1/16-7/8 | 0.24 | |
| R8-02-S | Square | 3-13 | 1/8-1/2 | 0.24 | |
| R8-03-H | Hex | 3-16 | 1/8-5/8 | 0.24 | |
| Inspection of Accuray | |||||
| d | L | Run out | |||
| mm | in | mm | in | mm | |
| 1-1.6 | 1/32-1/16 | 6.35 | 0.0005 | 0.013 | |
| >1.6-3 | >1/16-1/8 | 12.7 | 0.0005 | 0.013 | |
| >3-10 | >1/8-3/8 | 25.4 | 0.0005 | 0.013 | |
| >10-16 | >3/8-5/8 | 38.1 | 0.0005 | 0.013 | |
| >16-20 | >5/8-7/8 | 50.8 | 0.0005 | 0.013 | |
GOOD-TOOLS (Good precision machinery (pingyuan) Co.,Ltd) focus on providing high quality products and good service!!!
