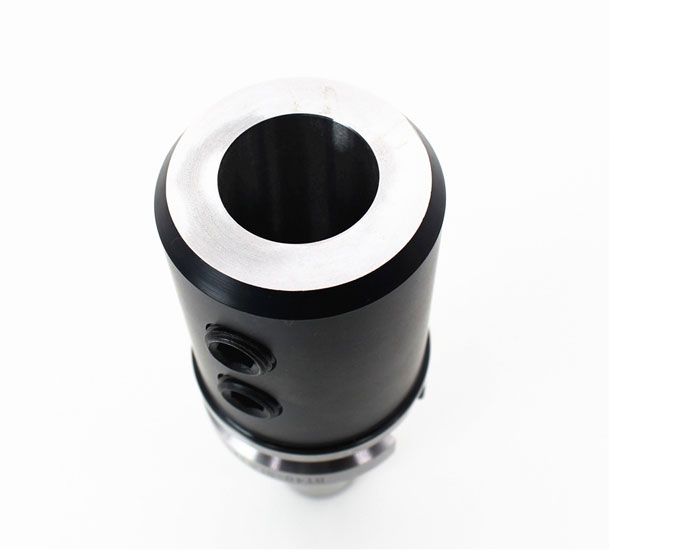

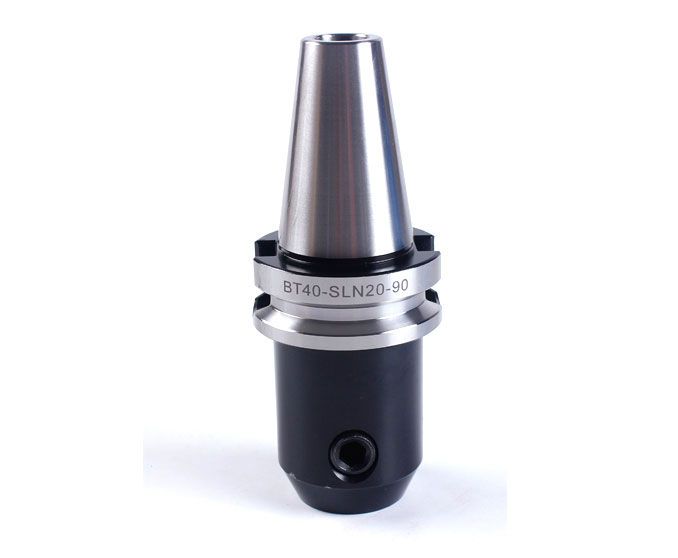

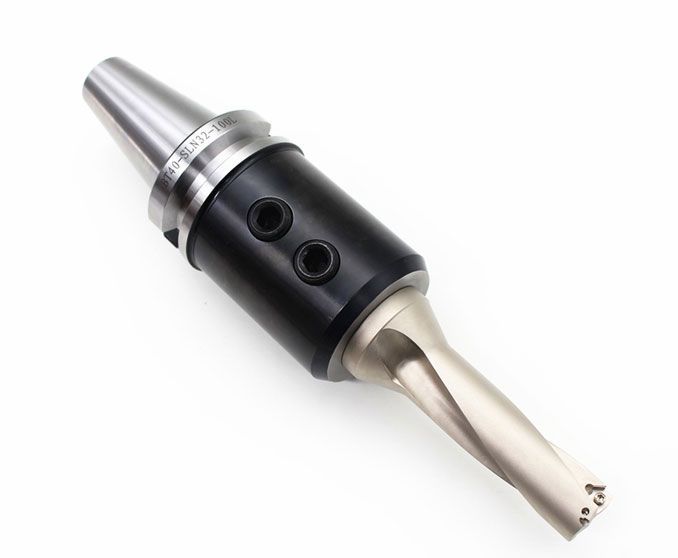

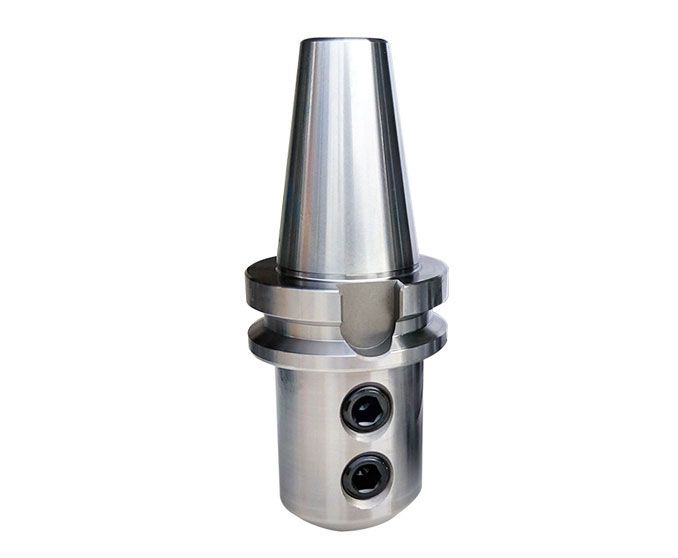

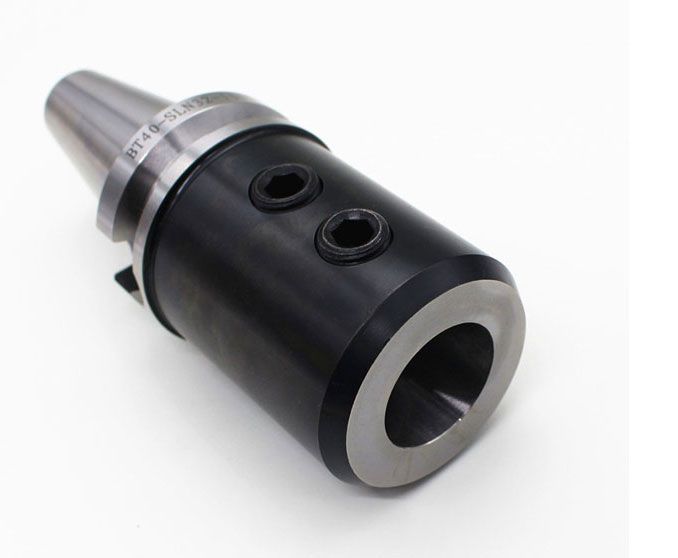

GD-0084 DIN END MILL ADAPTERS

Product name：DIN END MILL ADAPTERS

Type:DIN30/40/50 end mill adapter

Material:40Cr

Hardness:HRC53-55

Color:Black and white

Accuracy:0.005mm Collet Holder

Package:plastic box

Usage: Workholding

Carbon depth:>0.8

Suitable Facing Cutter:13mm-50mm

brief description:

1. High quality elastic steel material with long use time.

2. The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)

3. Suitable Pull Stub& Facing Cutter is also upon request.

4. The clamping hole tolerance H5 ,with a locking screw less than 20mm

with a diameter of 25mm above two locking screw

GD-0084		END MILL ADAPTERS
Order No. DIN69871.A x d-L1	L	D	D1	L2	L3	Wt(kg)
DIN69871.A30 x 6-50	97.8	25	31.75	18		0.58
DIN69871.A30 x 8-50	97.8	28	31.75	18		0.64
DIN69871.A30 x 10-50	97.8	35	31.75	20		0.72
DIN69871.A30 x 12-50	97.8	42	31.75	22.5		0.80
DIN69871.A30 x 16-63	110.8	48	31.75	24		0.96
DIN69871.A40 x 6-50	118.4	25	44.45	18		0.92
DIN69871.A40 x 8-50	118.4	28	44.45	18		0.96
DIN69871.A40 x 10-50	118.4	35	44.45	20		2.00
DIN69871.A40 x 12-50	118.4	42	44.45	22.5		1.12
DIN69871.A40 x 14-50	118.4	44	44.45	22.5		1.12
DIN69871.A40 x 16-63	131.4	48	44.45	24		1.20
DIN69871.A40 x 18-63	131.4	50	44.45	24		1.20
DIN69871.A40 x 20-63	131.4	52	44.45	25		1.32
DIN69871.A40 x 25-100	168.4	65	44.45	24	25	2.04
DIN69871.A40 x 32-100	168.4	72	44.45	24	28	2.24
DIN69871.A40 x 40-120	188.4	90	44.45	30	32	2.40
DIN69871.A50 x 6-63	164.75	25	69.85	18		3.30
DIN69871.A50 x 8-63	164.75	28	69.85	18		3.40
DIN69871.A50 x 10-63	164.75	35	69.85	20		3.42
DIN69871.A50 x 12-63	164.75	42	69.85	22.5		3.42
DIN69871.A50 x 14-63	164.75	44	69.85	22.5		3.44
DIN69871.A50 x 16-63	164.75	48	69.85	24		3.46
DIN69871.A50 x 18-63	164.75	50	69.85	24		3.48
DIN69871.A50 x 20-63	164.75	52	69.85	25		4.24
DIN69871.A50 x 25-80	181.75	65	69.85	24	25	4.40
DIN69871.A50 x 32-100	201.75	72	69.85	24	28	4.52
DIN69871.A50 x 40-120	221.75	90	69.85	30	32	4.72
1.When order please indicate the hilt the concrete form. if needs in the center cold and the flange water leakage hilt.please mark AD/B 2.According to needs to be possible to provide the balanced hilt. the standard precision is G6.3/12000rpm,the precise precision is G2.5/20000rpm
