CNC Tool Series
GD-0085 CT END MILL ADAPTERS
- Item No.: CO16930734
- Send Enquiry

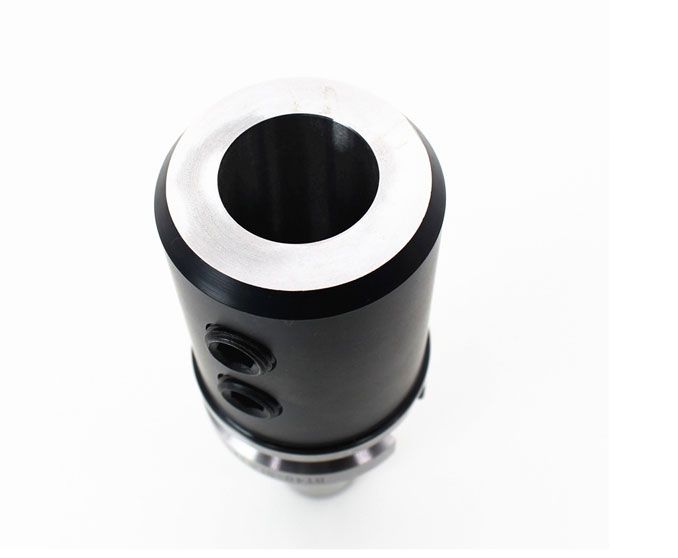

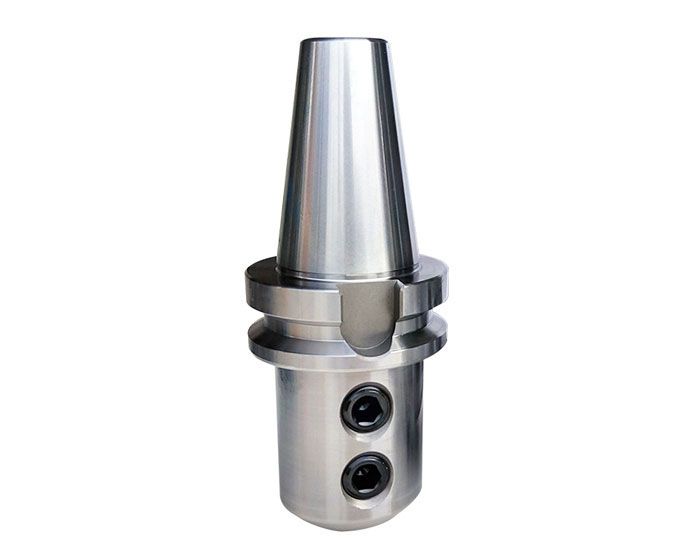

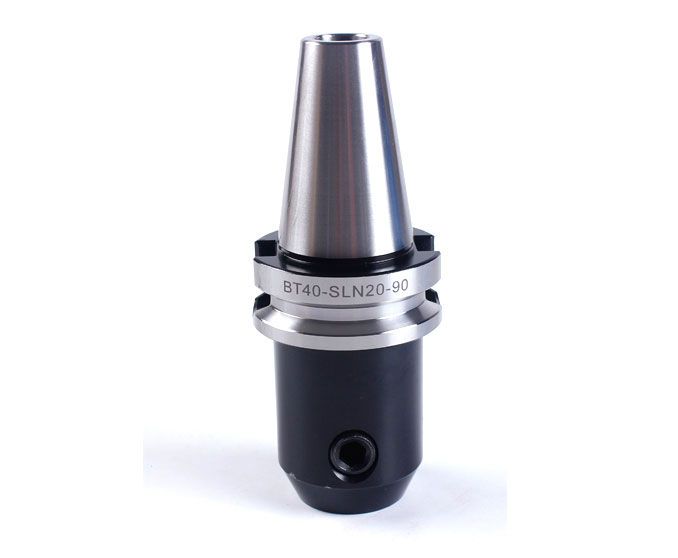

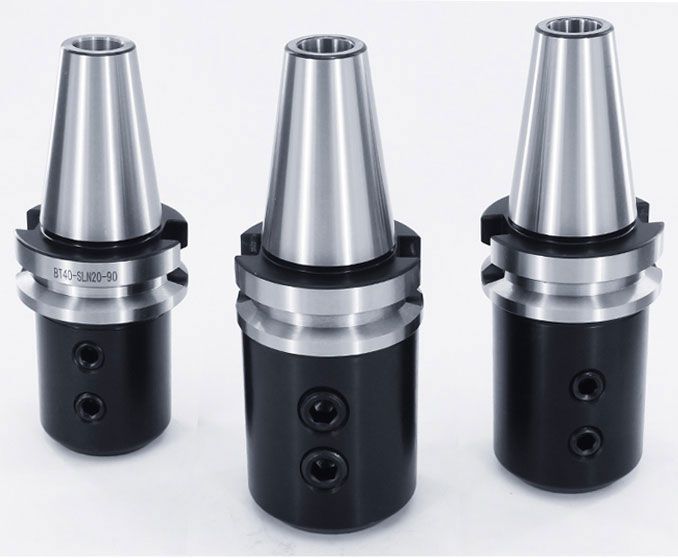

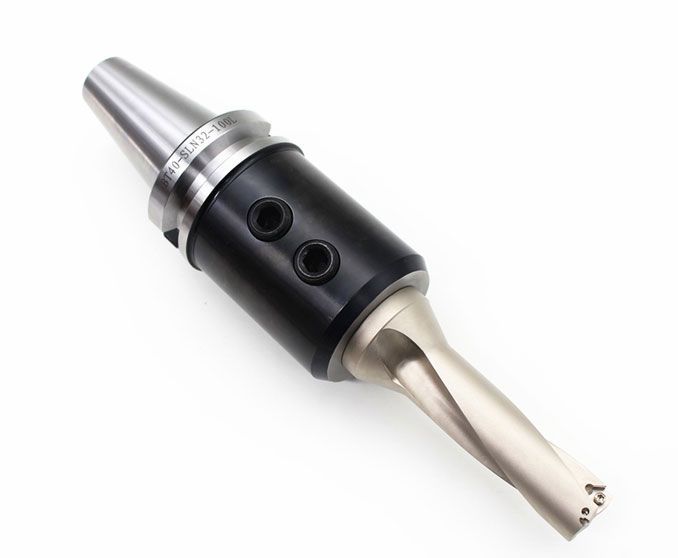

Product name：CT END MILL ADAPTERS
Type:CT40/50 end mill adapter
Material:40Cr
Hardness:HRC53-55
Color:Black and white
Accuracy:0.005mm Collet Holder
Package:plastic box
Usage: Workholding
Carbon depth:>0.8
Suitable Facing Cutter:13mm-50mm
brief description:
1. High quality elastic steel material with long use time.
2. The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
3. Suitable Pull Stub& Facing Cutter is also upon request.
4. The clamping hole tolerance H5 ,with a locking screw less than 20mm
with a diameter of 25mm above two locking screw
| GD-0085 | CT END MILL ADAPTERS | ||||
| Order No. CT×d-L1 |
L | D | D1 | L2 | L3 |
| CT40×3/16"-2~1/2" | 131.8 | 19.05 | 44.45 | 14.3 | |
| CT40×1/4"-2~1/2" | 131.8 | 20.64 | 19.8 | ||
| CT40×5/16"-2~1/2" | 131.8 | 22.22 | 19.8 | ||
| CT40×3/8"-2~1/2" | 131.8 | 32 | 19.8 | ||
| CT40×7/16"-2~1/2" | 131.8 | 31.75 | 22.2 | ||
| CT40×1/2"-2~5/8" | 134.9 | 44.45 | 22.2 | ||
| CT40×5/8"-2~3/4" | 163.5 | 44.45 | 23.8 | ||
| CT40×3/4"-2~3/4" | 163.5 | 44.45 | 25.4 | ||
| CT40×7/8"-4" | 169.9 | 52 | 27 | 22.2 | |
| CT40×1"-4" | 169.9 | 63 | 28.6 | 25.4 | |
| CT40×1"~1/4"-4~1/8" | 173 | 69.85 | 28.6 | 25.4 | |
| CT50×3/8"-4~1/2" | 215.9 | 31.75 | 69.85 | 19.8 | |
| CT50×3/8"-6~1/5" | 266.7 | 31.75 | 19.8 | ||
| CT50×1/2"-2~5/8" | 168.3 | 44.45 | 22.2 | ||
| CT50×1/2"-4~5/8" | 219.2 | 44.45 | 22.2 | ||
| CT50×5/8"-3~3/4" | 196.85 | 44.45 | 23.8 | ||
| CT50×5/8"-5~3/4" | 247.7 | 44.45 | 23.8 | ||
| CT50×3/4"-3~3/4" | 196.85 | 44.45 | 25.4 | ||
| CT50×3/4"-5~3/4" | 247.7 | 44.45 | 25.4 | ||
| CT50×7/8"-3~3/4" | 196.85 | 52 | 27 | 22.2 | |
| CT50×7/8"-5~3/4" | 247.7 | 52 | 27 | 22.2 | |
| CT50×1"-4" | 203.2 | 63 | 28.6 | 25.4 | |
| CT50×1"-6" | 254 | 63 | 28.6 | 25.4 | |
| CT50×1~1/4"-4" | 203.2 | 69.85 | 28.6 | 25.4 | |
| CT50×1~1/4"-6" | 254 | 69.85 | 28.6 | 25.4 | |
| CT50×1~1/2"-4" | 203.2 | 69.85 | 28.6 | 25.4 | |
| CT50×1~1/2"-6" | 254 | 69.85 | 28.6 | 25.4 | |
| CT50×2-5~5/8" | 244.5 | 69.85 | 30.2 | 36.5 | |
| CT50×2-7~5/9" | 295.3 | 69.85 | 30.2 | 36.5 | |
