Quick Change Tool Post

GD-0062 knurning and facing holder

Item No.: CO16128734
Send Enquiry

Product name:Knurning & Facing Holder
Hardness：HRC50-60
Type：Quick change
Material：spheroidal cast iron
Accuracy：high accuracy for fix-position
Feature:exchange tool quickly,high precision
Product series:TOOL-QUICK CHANGE TOOL POSTS
Package:Plastic Box or Wooden box
Usage:CNC Machine Center

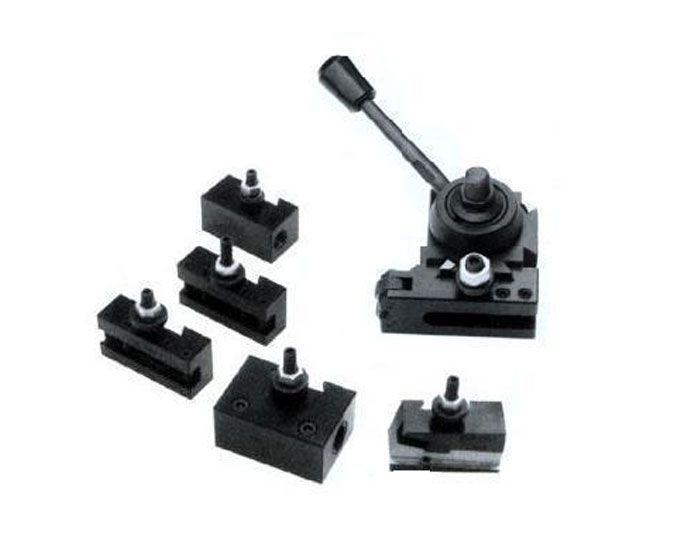

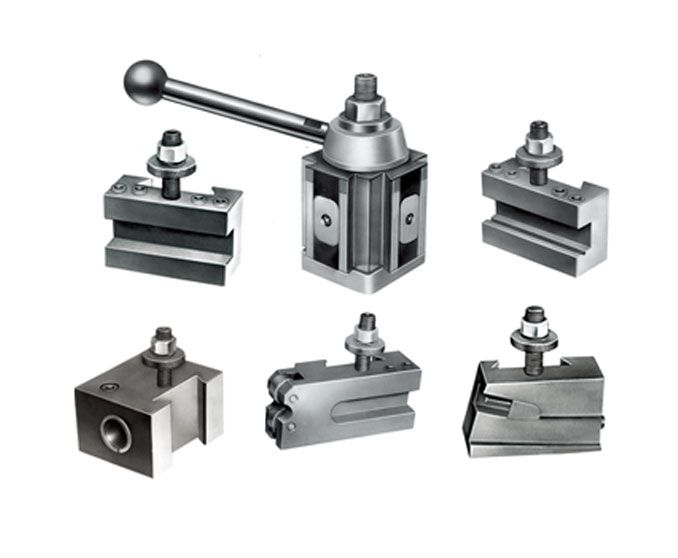

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.

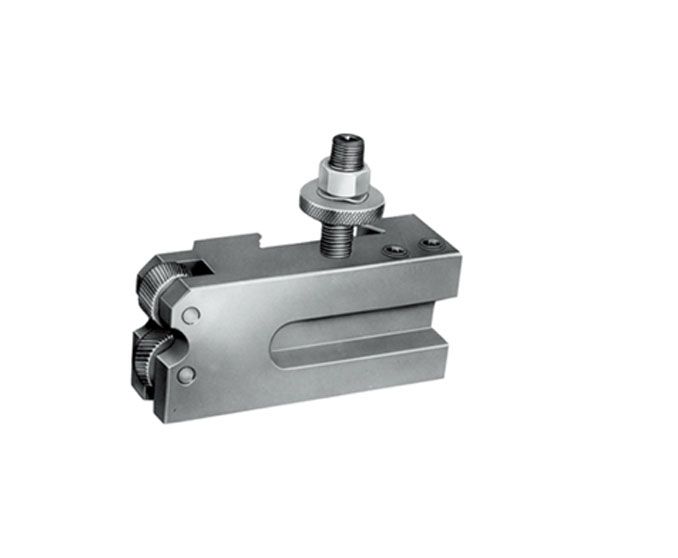

KNURNING&FACING HOLDER

GD-0062	KNURNING&FACING HOLDER
Order No.	A(in)	B(in)	C(in)	Clamping range(in)	Tool bit range(in)	Wt(kg)
250-110	7/8	2-1/2	1-9/16	3/16-1/2	3/4×3/8×1/4	0.48
250-210	1	2-5/8	1-3/4	1/4-5/8		0.85
250-310	1-3/16	3-1/8	2	1/2-3/4		1.15
250-410	1-7/16	3-3/4	2-1/2	1/2-1		1.95

whit may be used for knuring,if square tool is used,it may process and face,extered cutting,boring etc.
