Sleeve Series

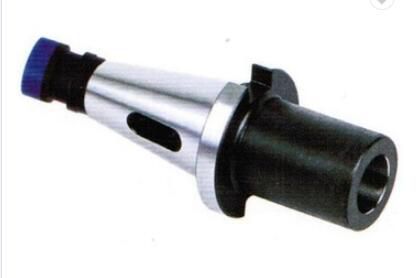

GD-0029 7:24 TO MS ADAPTER(DRAW BAR TYTE)
- Item No.: CO154653734
- Send Enquiry
Place of Origin:
Shandong, China(Mainland)
Brand Name:
GD-Tools ( HaoTian Machinery Co.,Ltd)
Model Number:
ER collet chuck
Material:
40CR 65MN
Name:
MT-ER morse taperER collet chuck
Accuracy:
0.005mm
Package:
Plastic Box,carton
Hardness:
HRC55-60
Application:
CNC Machine Center
Size:
Standard Size
| GD0029 | 7:24 TO MS ADAPTER(DRAW BAR TYTE) | ||||||
| Order No. | 7:24 NO.S | MS.NO.T | D(mm) | D1(mm) | d(mm) | L(mm) | Figure |
| B30-1W | 30 | MS1 | 25 | 31.75 | 12.065 | 105 | 1 |
| B30-2W | 30 | MS2 | 32 | 17.780 | 118 | 2 | |
| B30-3W | 30 | MS3 | 40 | 23.825 | 155 | 2 | |
| B40-1W | 40 | MS1 | 25 | 44.45 | 12.065 | 120 | 1 |
| B40-2W | 40 | MS2 | 32 | 17.780 | 120 | 1 | |
| B40-3W | 40 | MS3 | 40 | 23.825 | 140 | 2 | |
| B40-4W | 40 | MS4 | 48 | 31.267 | 178 | 2 | |
| B40-5W | 40 | MS5 | 61 | 44.399 | 238 | 2 | |
| B50-1W | 50 | MS1 | 25 | 69.85 | 12.065 | 160 | 1 |
| B50-2W | 50 | MS2 | 32 | 17.780 | 160 | 1 | |
| B50-3W | 50 | MS3 | 40 | 23.825 | 160 | 1 | |
| B50-4W | 50 | MS4 | 48 | 31.267 | 180 | 1 | |
| B50-5W | 50 | MS5 | 61 | 44.399 | 210 | 2 | |
Next: GD-0031r8 7-24 Adapter
