Inquiry:
Center Series

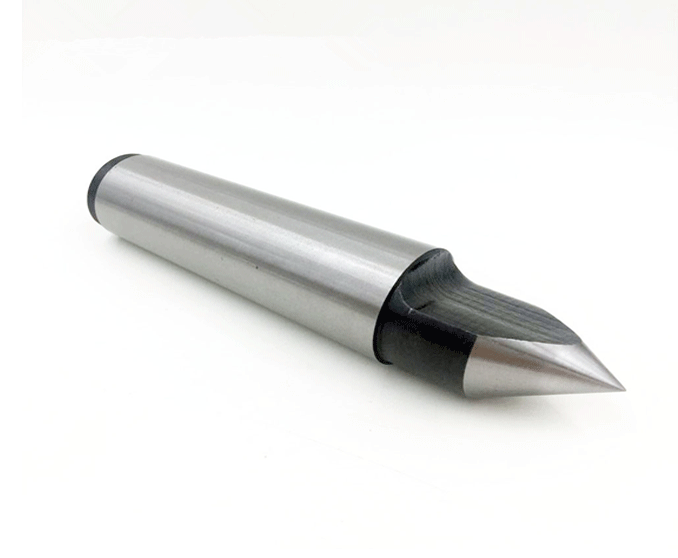

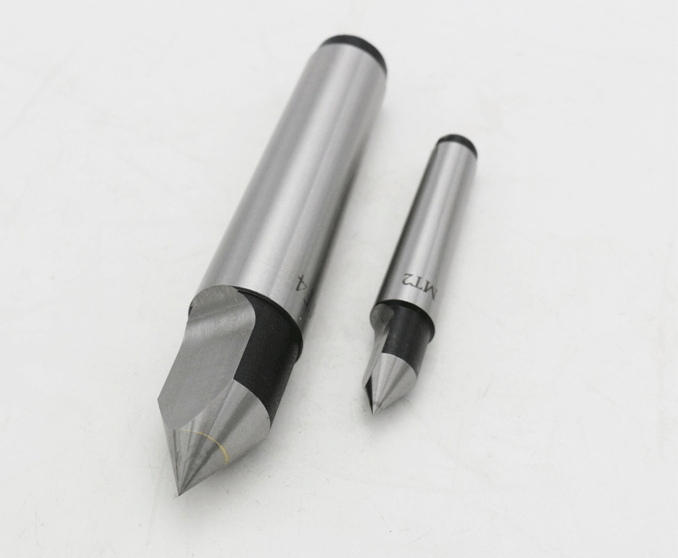

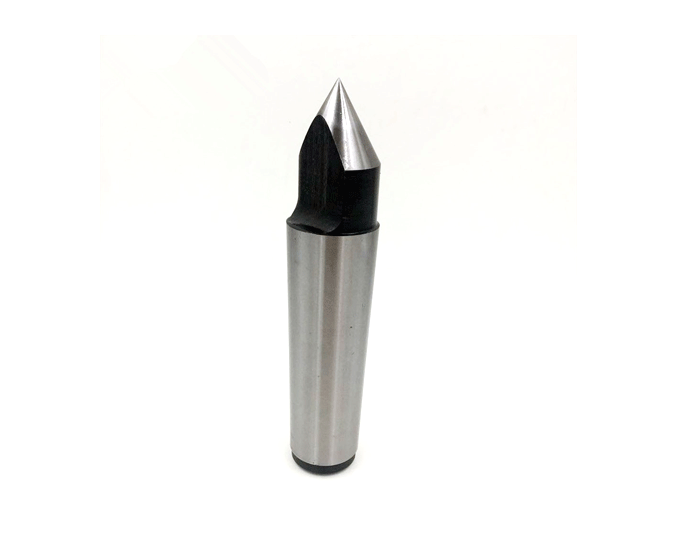

GD-0042Dead center
- Item No.: CO155619734
- Send Enquiry
Model Number: MT3 Dead Centers
Place of Origin: Shandong,China (Mainland)
Brand Name: OLIMA
Type: MT3 Dead Centers
MT3 Dead Centers: MT3 Dead Centers
Accuracy: 0.01mm
| GD-0042 | DEAD CENTER | ||||
| Order No. | MS.NO. | D | L | Wt(kg) | Accuracy |
| (mm) | (mm) | (mm) | |||
| DG1 | MS1 | 12.065 | 80 | 0.057 | |
| DG2 | MS2 | 17.780 | 100 | 0.150 | |
| DG3 | MS3 | 23.825 | 125 | 0.334 | |
| DG4 | MS4 | 31.267 | 160 | 0.746 | 0.010 |
| DG5 | MS5 | 44.399 | 200 | 1.862 | |
| DG6 | MS6 | 63.348 | 270 | 4.925 | |
| DG7 | MS7 | 83.061 | 360 | 8.620 | |
