Center Series

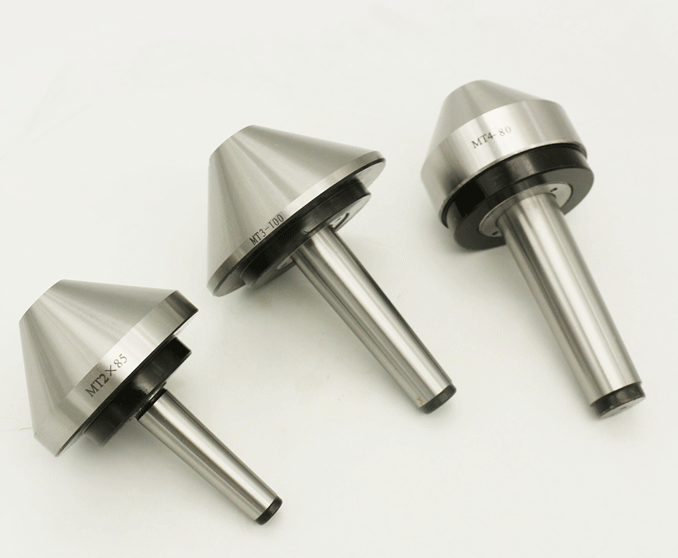

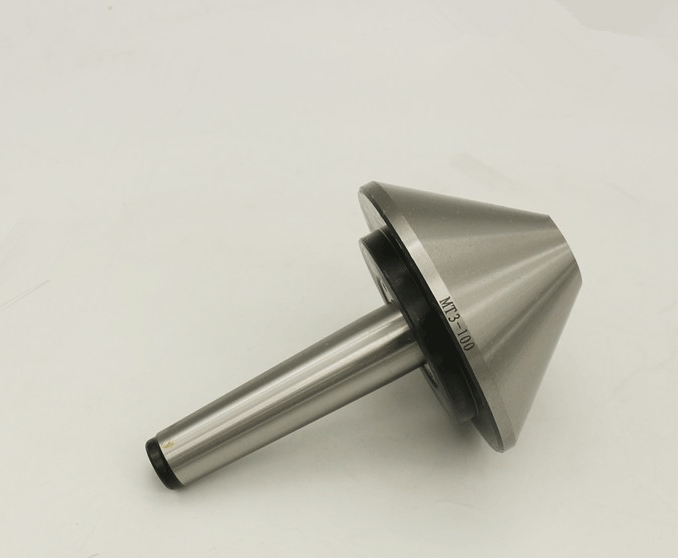

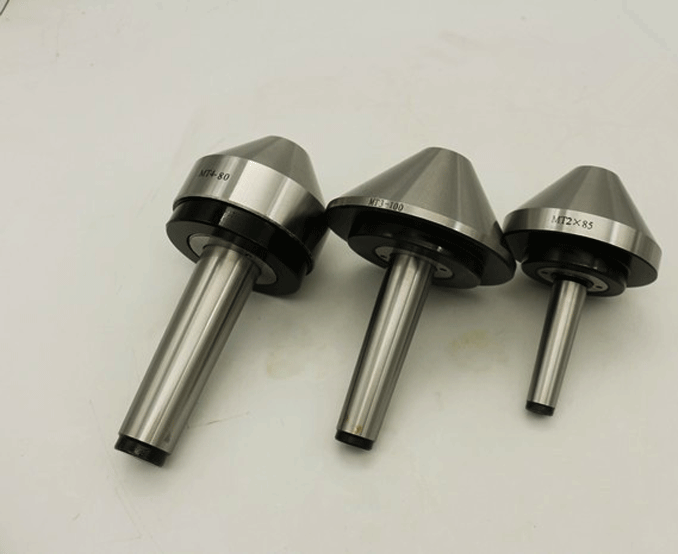

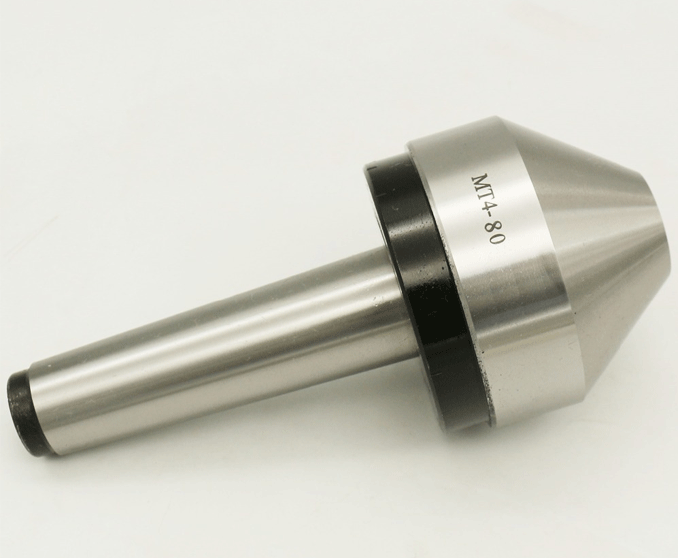

GD-0046 Bull Nose Center

Item No.: CO155616734
Send Enquiry

Model Number:MT6x250
Material:40Cr live center
Accuracy:0.005mm live center
speed:3000-5000rpm live center
Delivery:7-30days live center
Stock:rich live center
Surface:high hardness surface live center
Lathe Dead Center:Bull Nose Live Center

GD-0046	BULL NOSE CENTER
Order No.	MS.NO.	L	L1	D	D1	d	θ
DS2×60(60°)	MS2	132	64	60	17.780	20	60°
DS2×60(60°)	MS2	135	64	61.9	17.780	12.7	70°
DS3×76.2(70°)	MS3	152	81	76.2	23.825	19	70°
DS3×100(60°)	MS3	170	81	100	23.825	30	60°
DS3×100(75°)	MS3	164	81	100	23.825	32	75°
DS4×160(60°)	MS4	232	102.5	160	31.267	40	60°
DS4×160(75°)	MS4	225	102.5	160	31.267	35	75°
D5×200(75°)	MS5	252	129.5	200	44.399	40	75°
DS5×250(75°)	MS5	281	129.5	250	44.399	57	75°
DS6×200(75°)	MS6	320	182	200	63.348	40	75°
DS6×250(75°)	MS6	355	182	250	63.348	57	75°
