Center Series

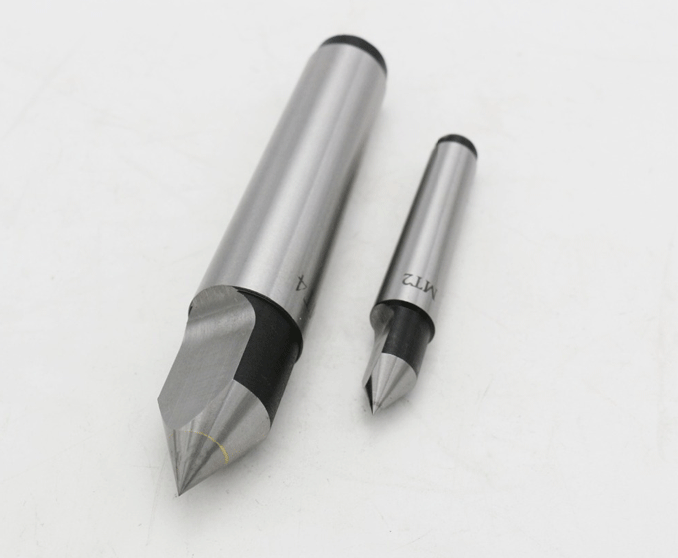

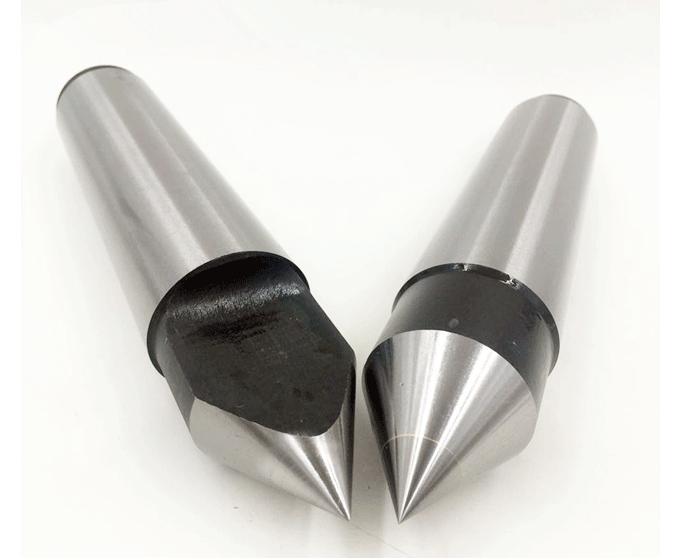

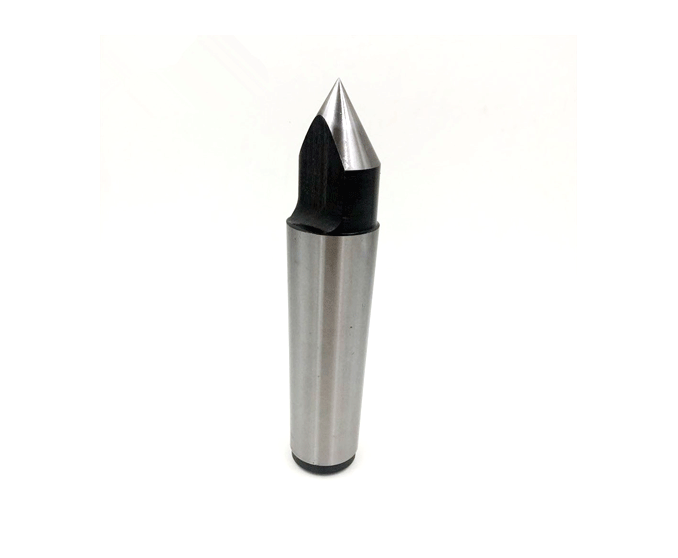

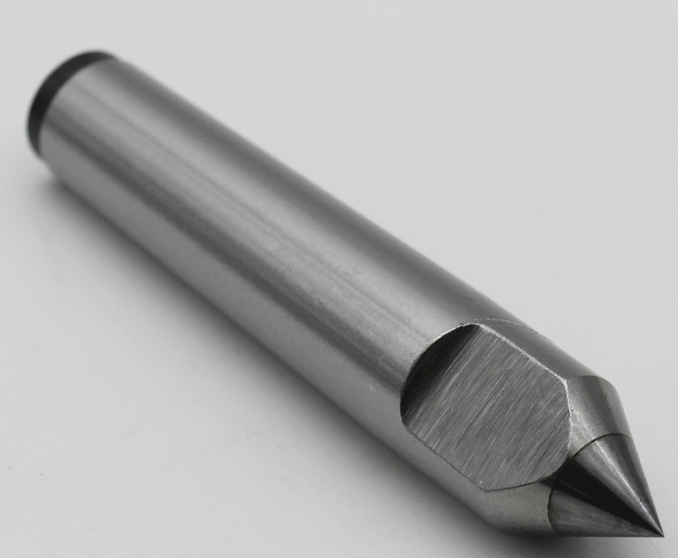

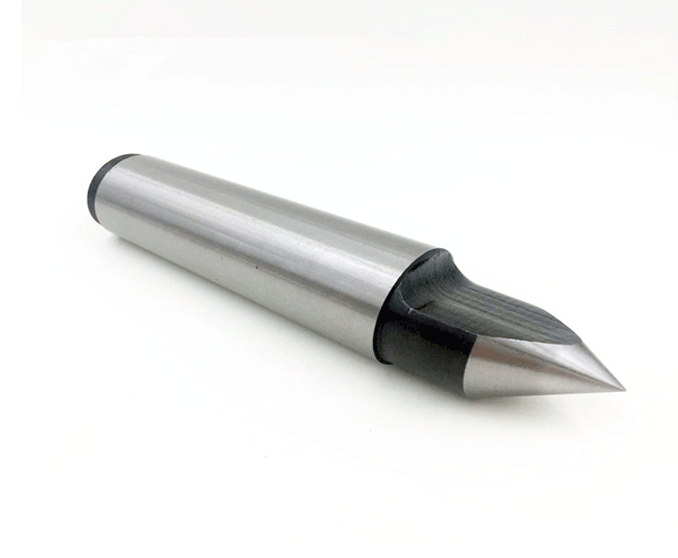

GD-0043 HALF-NOTCHED CENTER
- Item No.: CO155611734
- Send Enquiry
Model Number: MT3 Dead Centers
Place of Origin: Shandong,China (Mainland)
Brand Name: GD-Tools
Type: MT3 Dead Centers
MT3 Dead Centers: MT3 Dead Centers
Accuracy: 0.01mm
| GD-0043 | HALF-NOTCHED CENTER | |||||
| Order No. | MS.NO. | D | h | L | Wt(kg) | Accuracy |
| (mm) | (mm) | (mm) | (mm) | |||
| DH1 | MS1 | 12.065 | 7.6 | 80 | 0.057 | 0.010 |
| DH2 | MS2 | 17.780 | 11 | 100 | 0.150 | |
| DH3 | MS3 | 23.825 | 15.05 | 125 | 0.334 | |
| DH4 | MS4 | 31.267 | 20.8 | 160 | 0.746 | |
| DH5 | MS5 | 44.399 | 29.35 | 200 | 1.862 | |
| DH6 | MS6 | 63.348 | 41.9 | 270 | 4.925 | |
| DH7 | MS7 | 83.061 | 53.78 | 360 | 8.620 | |
